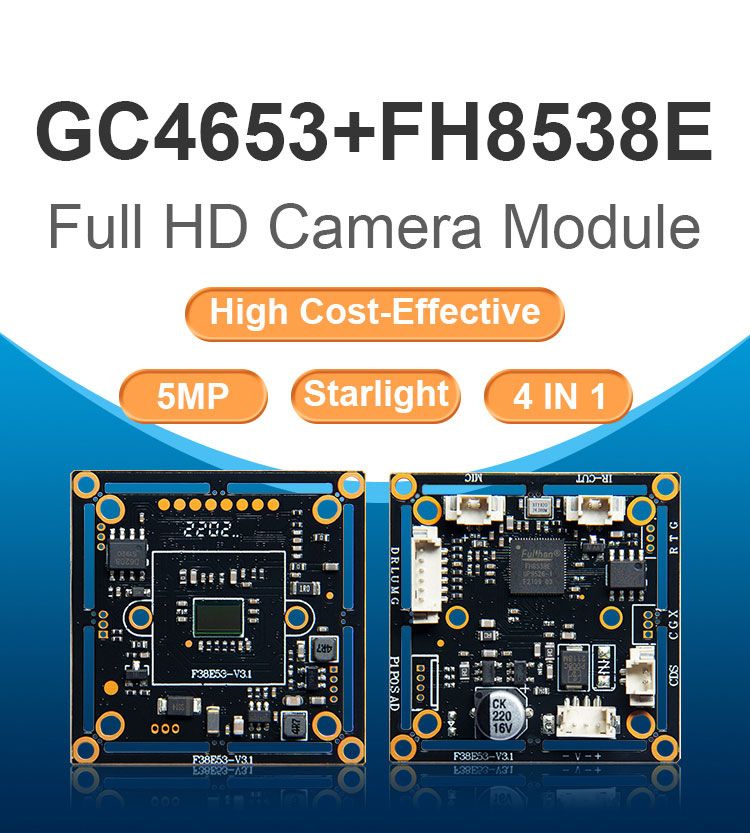

AHD TVI CVI 5MP CCTV video security system HD camera module with coaxial audio
$5.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | F38E53-V3.1 |
Spec. | 5MP/8MP 4in 1 coaxial HD CCTV camera Module |
Sensor | 1/3” GC4653+FH8538E |
System | PAL/NTSC |
Effective pixels | 3480(H)x2160(V) |
Illumination | 0.05Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N | EXT（Default）/COLOR/B/W |
Synchronously | Internal |
FPS | 8M 12.5fps / 15fps 5MP 12.5fps/20fps |

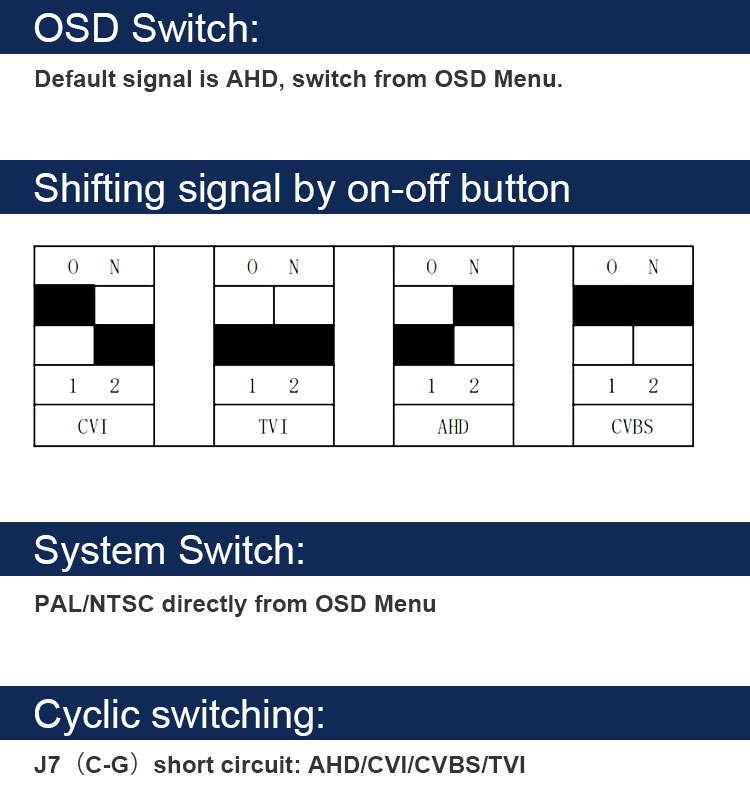

Video output | AHD/TVI/CVI/CVBS (Optional) |
Exposure | BRIGHTNESS /EXPOSURE MODE /GAIN |
BW | ATW/MWB |
D/N MODE | Infrared/COLOR/B&W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR |
Language | CHINESE/ENGLISH |
Reset | |
Operation Temperature | -20℃ to 60℃ |
Operation humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 60MA |

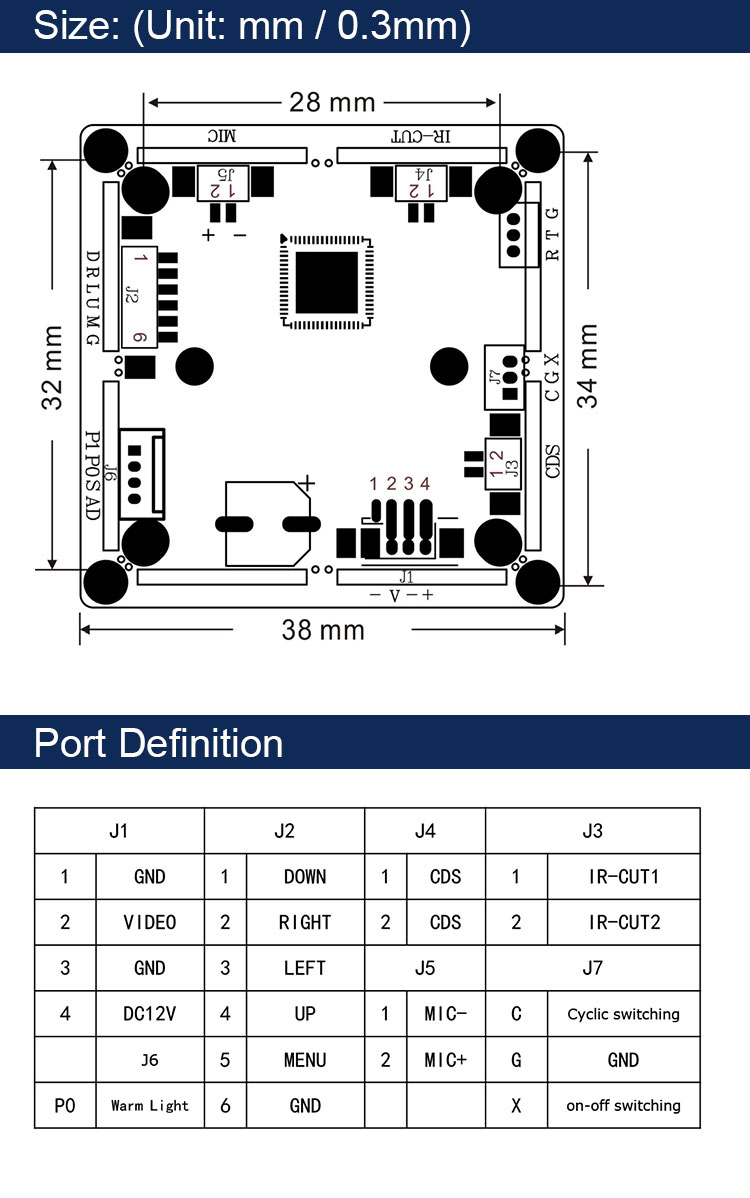

Dimension | 32*32/38*38（mm） |
