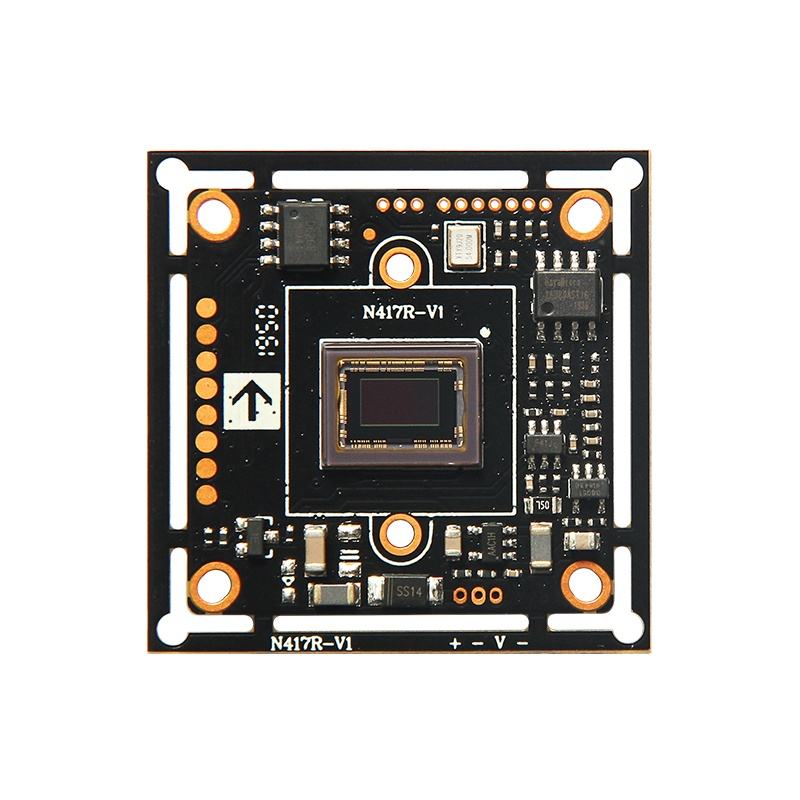

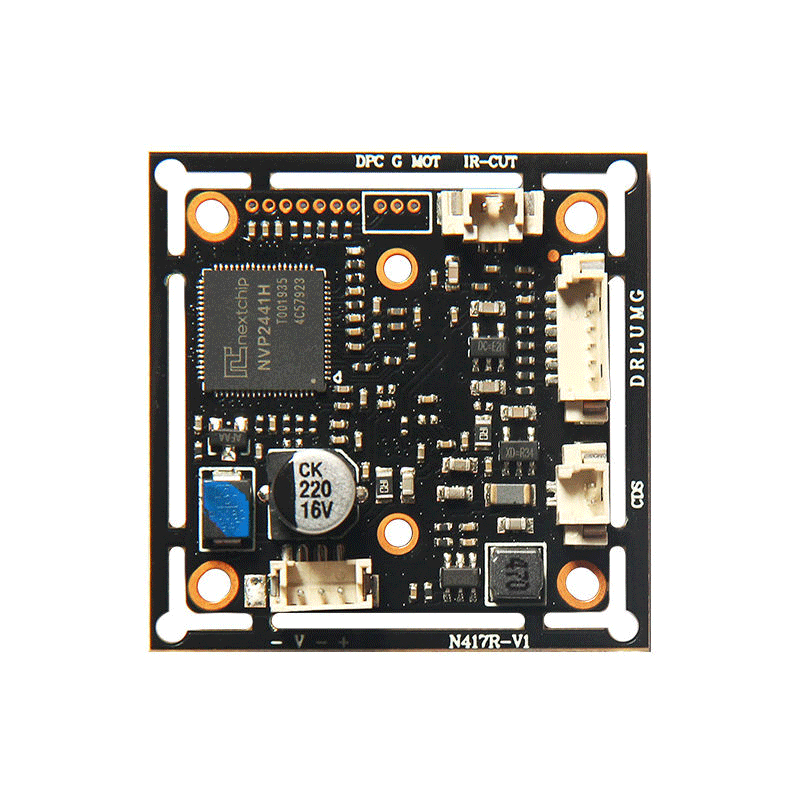

CCTV Camera PCB Module Warm Light Camera Board for Color Starlight Camera
$7.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | N417R-V1 |
Spec. | 2MP 4 IN 1 CMOS module |
Model No. | 1/2.8＂IMX307LQR+NVP2441H |
Video Format | PAL/NTSC |
Effective Resolution | 1920(H)x1080(V) |
Illumination | 0.0001Lux@(F1.2,AGC ON)，0LUX with IR |
Shutter | AUTO |
D/N Mode | External Control（Default）/Auto/Color/B&W |
Synchronization | inter-sync |
Frame rate | 1080P@25fps / 1080P@30fps |
Signal | AHD/TVI/CVI/CVBS (Optional) |
Lens Mode | Manual/DC Lens |
Exposure | Electronic Shutter/AGC/Frame /Brightness/DWDR/Fogging |
Back-light Mode | Close/Back-light Compensation/Strong Inhibition |
W/B Mode | Auto/AWE/Indoor/Outdoor/Manual /AWB |
D/N Mode | External Control（Default）/Auto/Color/B&W |
DNR Type | 2DNR/3DNR |
Video Setting | Contrast/Sharpness/Saturation/DNR/Video Format/DWDR |
Function | Equipment Name/Digital/Motion Detection /Privacy Block/Language/Bad Point Compensation/RS485 |
Adjustment | Sharpness/Display/Brightness/Compensation/NTSC/PAL |
Exit | Save and Exit/Reset/Non-save |
Language | Chinese1/Chinese2/German/French/ Italian/Spanish/Polish/Russian/Portuguese/ Dutch/Turkish/English |
Working Temperature | -20℃ to 60℃ |
