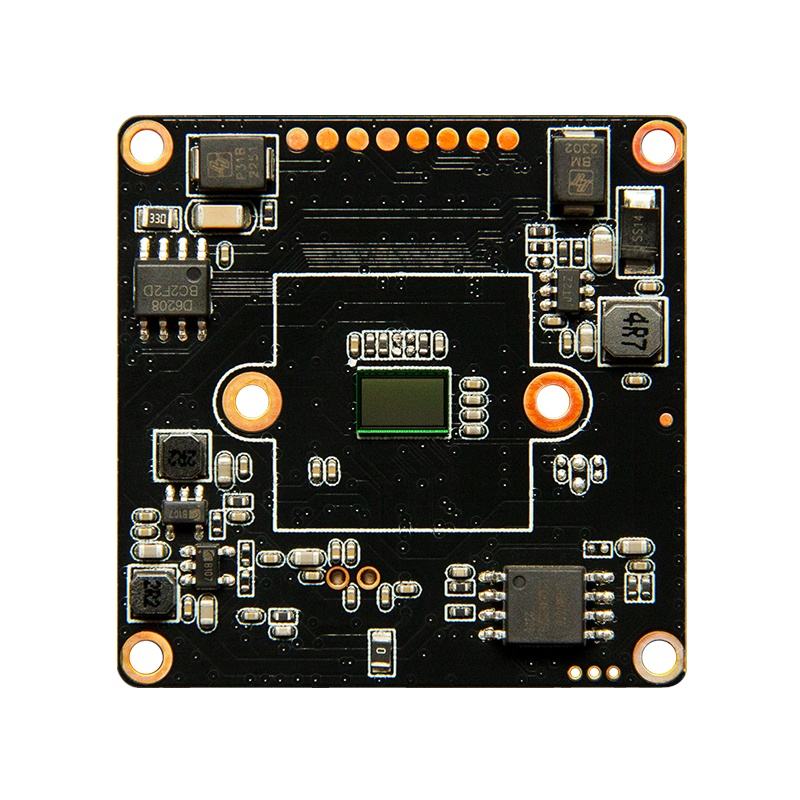

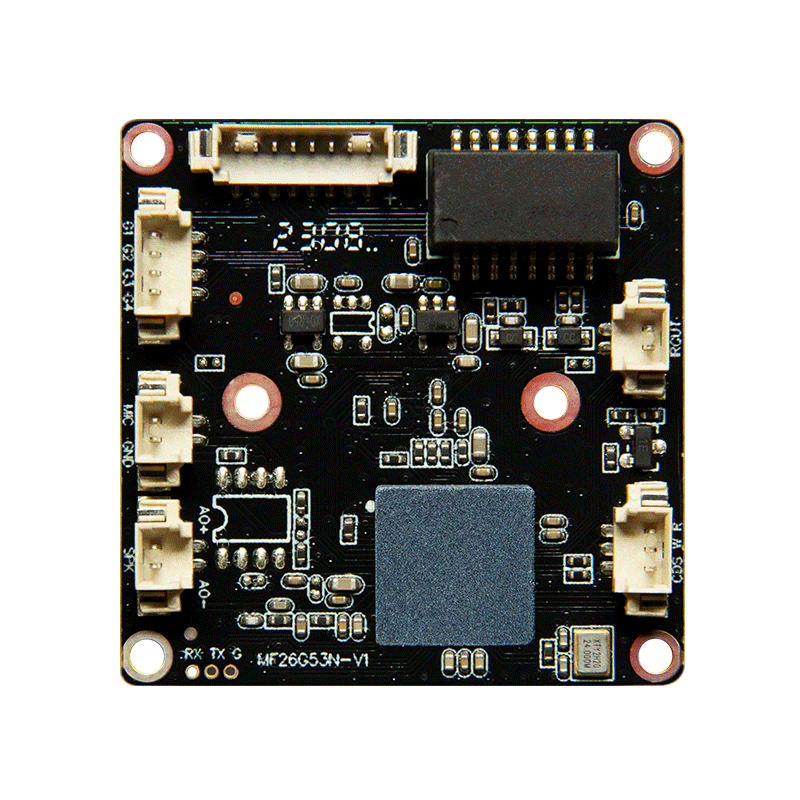

3MP Super Starlight Warm Light LOW LUX Audio IP Camera Module
$4.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H31 | |
Module | Fullhan 1.5K DSP+1/3"3MP CMOS | |
LUX | Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR；＞80db | |
Audio Input | Audio MIC Input | |
Audio Output | 1CH Output, Speaker Optional | |
Light Type | CDS IR LED, Warm LED, White LED (Support PWM) | |
IO Function | IR CUT, 1CH RESET, Alarm In, Alarm Out | |
Others | Extra Motorized Zoom Auto Focus Lens Optional | |
Coding Format | Smart H.264 | |
Mainstream | 2304*1296 | |
1920*1080、1280*720 | ||
Substream | 704*576、800*448、640*480、640*360、352*288 | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | ONVIF | |
Browser | Support IE6.0 and above browser(insert Web Server) | |
Mobile | Support IOS、Android Platform | |
Temperature | -30℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /90mA |
Product packaging
