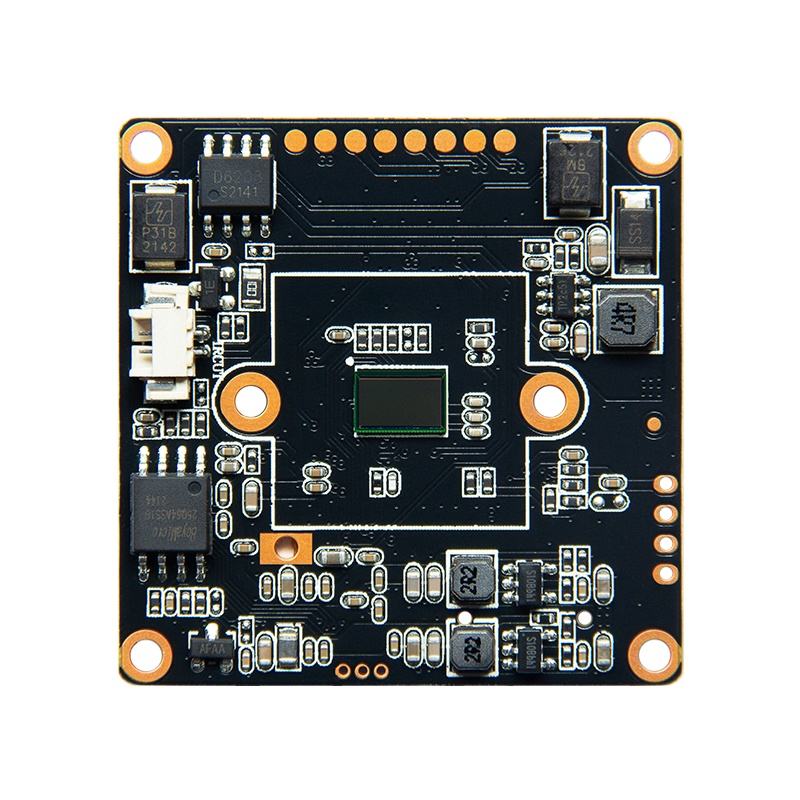

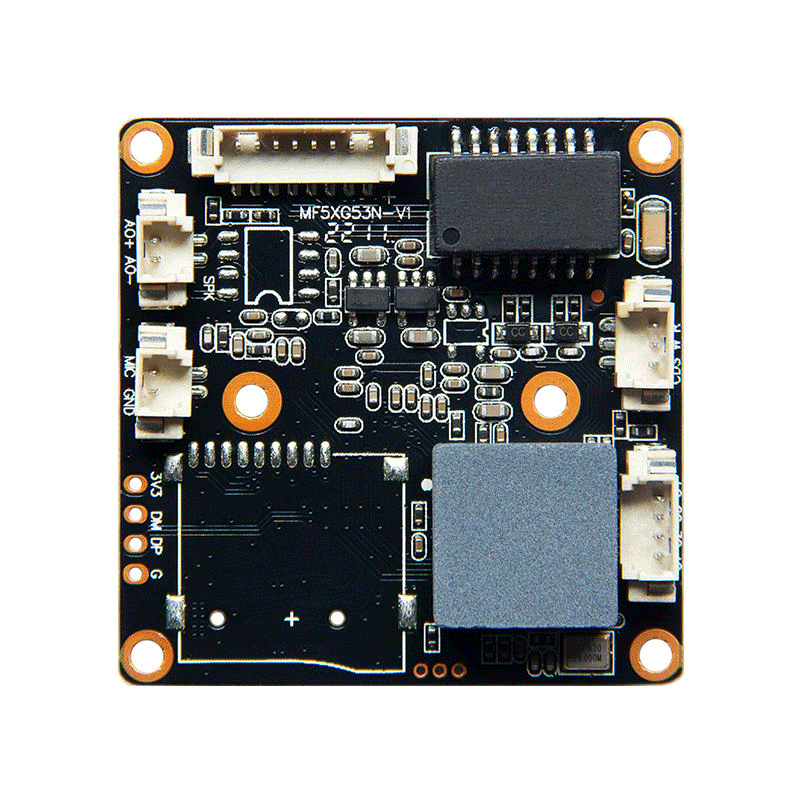

Smart Network Starlight 4MP PCB Board CMOS Sensor Security IP Camera Module
$7.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H41 |
Module | Fullhan 2K DSP+1/2.9"4MP CMOS |
LUX | Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR；＞80db |
Audio Input | Audio MIC Input |
Audio Output | 1CH Output, Speaker Optional |
Light Type | CDS IR LED, Warm LED, White LED (Support PWM) |
IO Function | IR CUT, 1CH RESET, Alarm In, Alarm Out |
Others | Extra Motorized Zoom Auto Focus Lens Optional |
Coding Format | H.265、H.264 |
Mainstream | 2560*1440，1-25fps/s |
2304*1296、1920*1080、1280*720，1-30fps/s | |
Substream | 704*576、640*480、640*360、352*288，1-30fps/s |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | ONVIF |
Browser | Support IE6.0 and above browser(insert Web Server) |
Mobile | Support IOS、Android Platform |
Temperature | -30℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V / 110mA |
