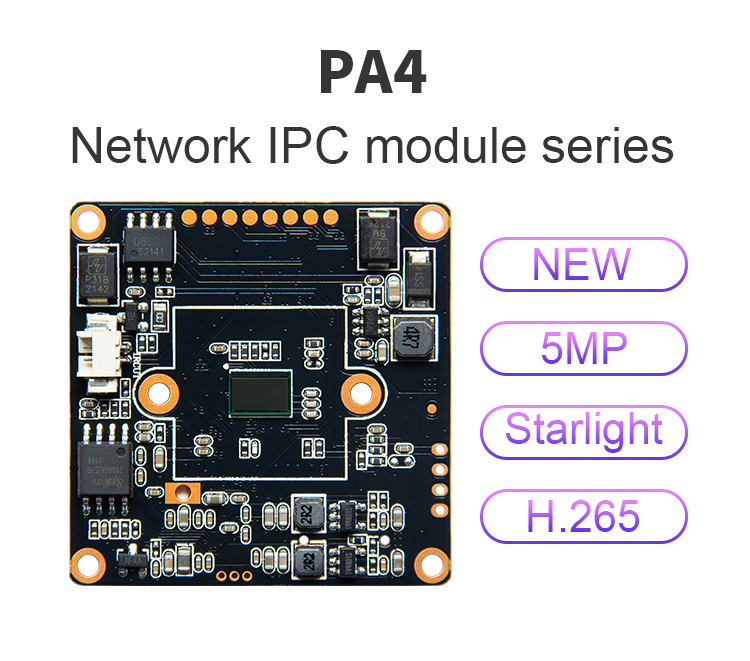

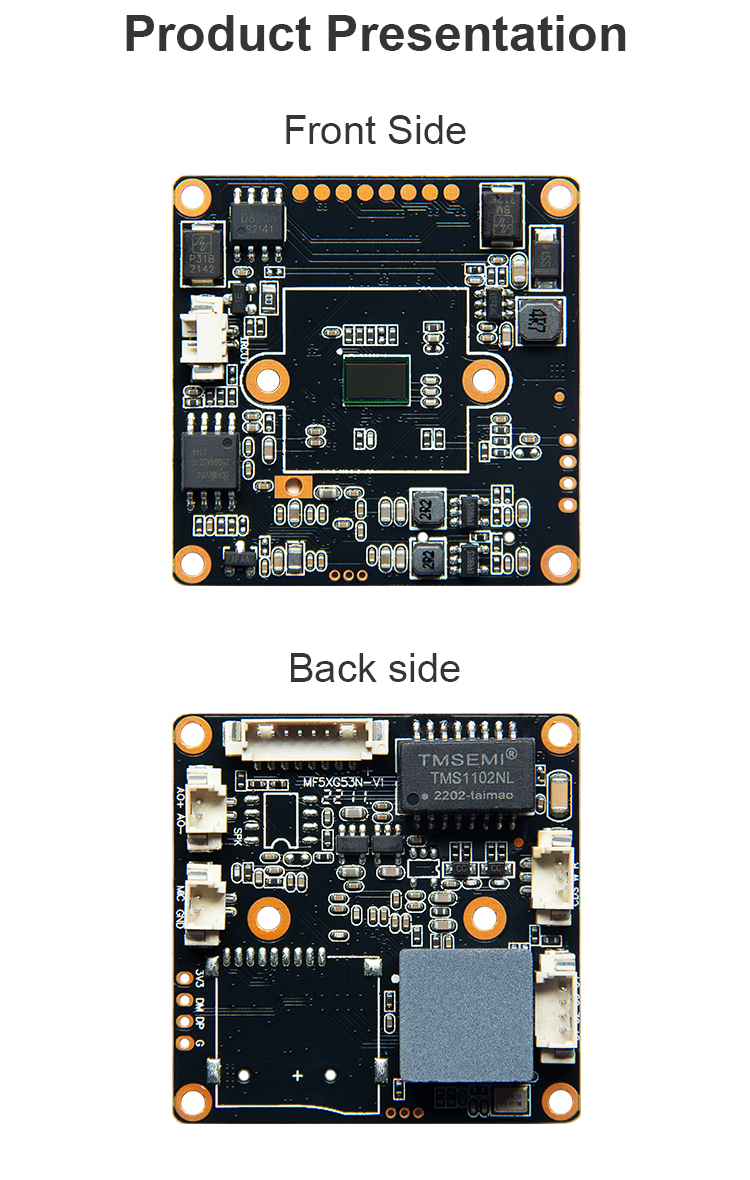

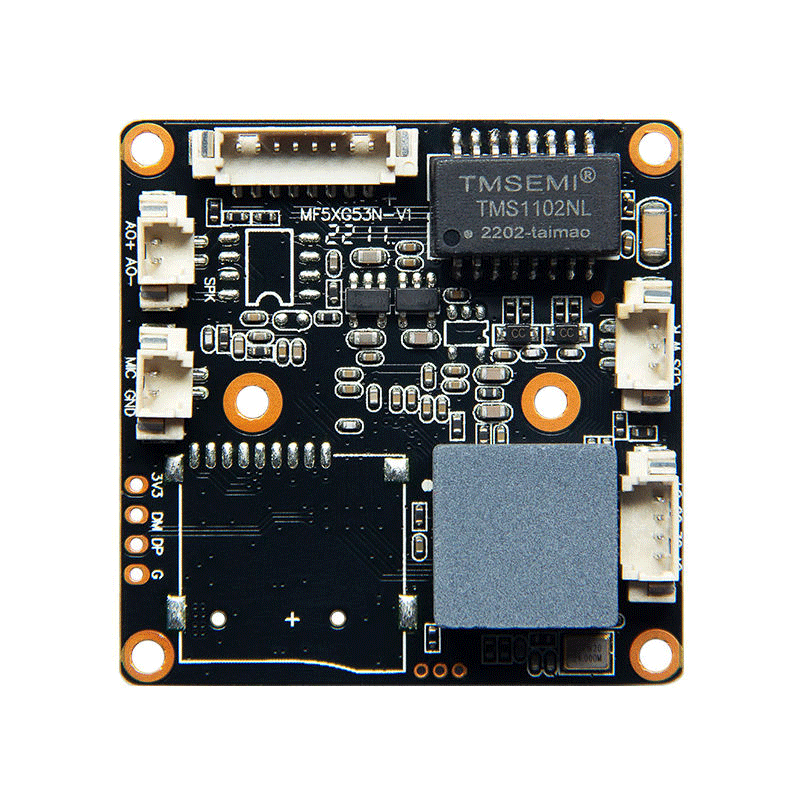

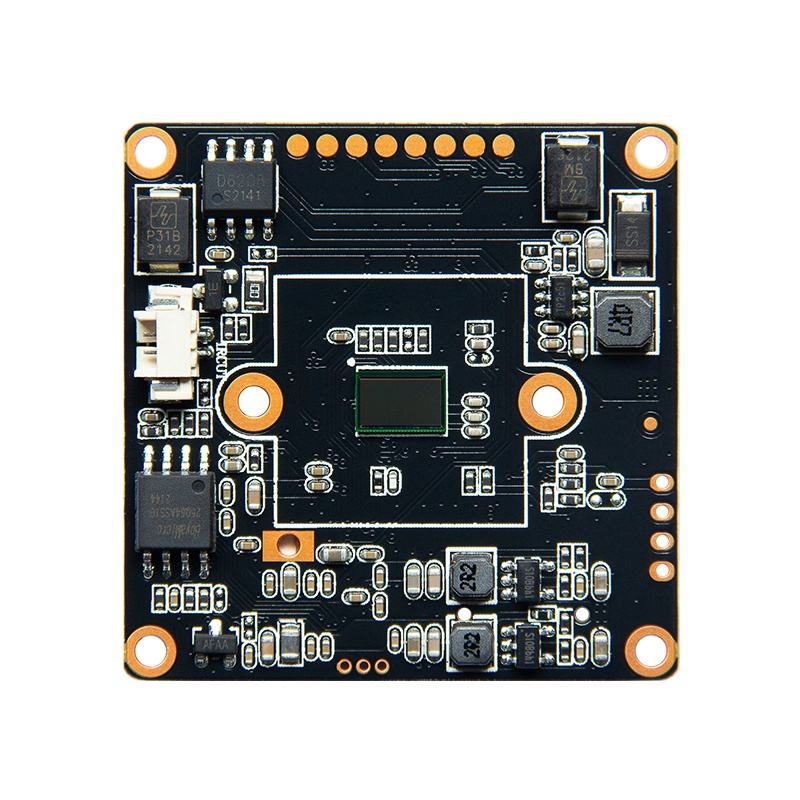

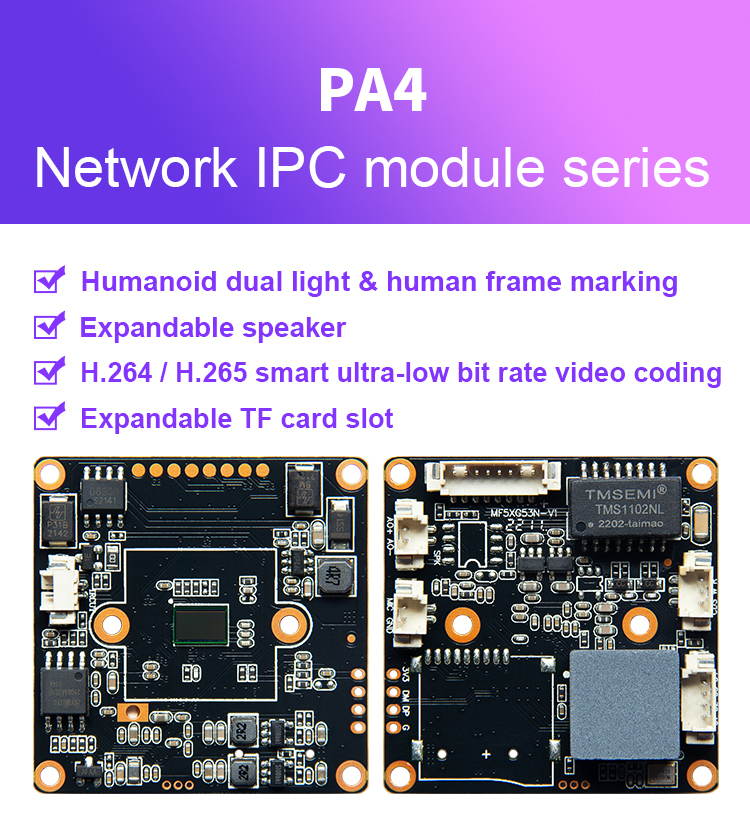

5MP Ultra Low Lux H.265 HD 4K IP Camera Module board camera
$8.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | PA4 | |
Hardware | ||
Module | Fullhan 2K DSP+1/3" 5MP Cmos Sensor | |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; ＞80db | |

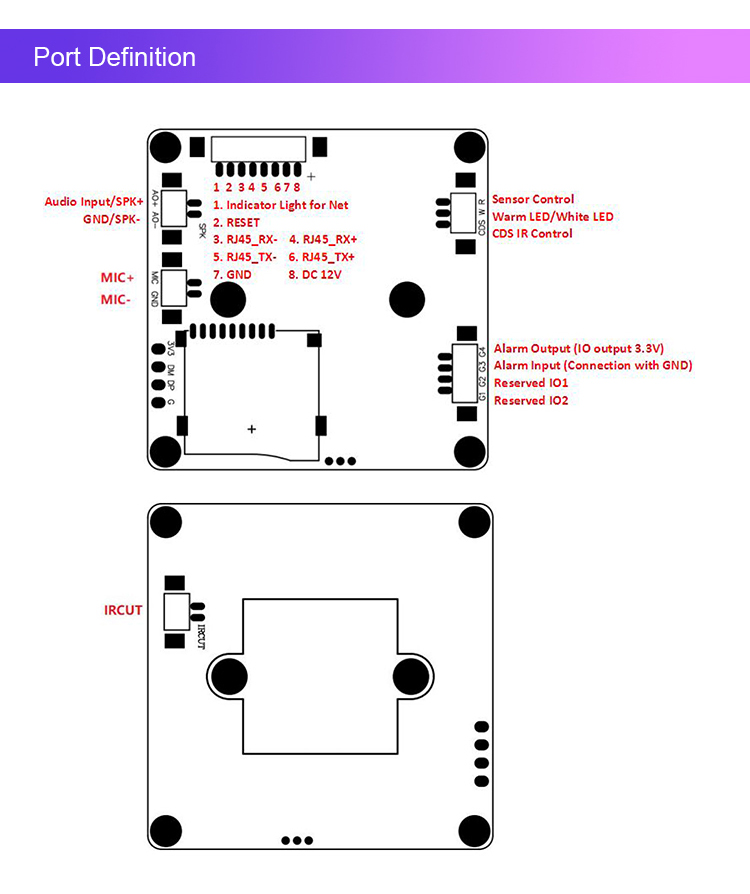

Port | ||
Audio/Intercom Input | MIC Input | |
Audio Output | MIC Linear Output & Speaker Optional | |
LED TYPE | CDS IR & Sensor Control & Warm LED | |
IO port | IR CUT & Reset & Alarm Input & Output | |
Others | AF Motorized Lens Support | |
Video Coding | ||
Coding Format | H.265/H.264 | |
Main Steam | 2880*1616，1-25FPS/S | |
Main Steam | 2560*1440、2304*1296、1920*1080、1280*720，1-30FPS/S | |
Sub steam | 704*576、640*480、640*360、352*288，1-30FPS/S | |
Video Coding Compression | 128Kbps-8192bps Continuous Adjustable | |
Subtitle Overlay | Support Channel Name & Date&Time & Frame & Resolution & 4 Lines of Character Overlay | |
Data Transmission &Storage | ||
Data Record | Video & Picture | |
Storage Method | Cycling Recording & Alarm Recording | |
Alarm Transfer | IO output & Browser & Management Software | |
Protocol | Standard ONVIF Protocol | |
Mobile | Support IOS & Android | |
Browser | Support IE Browser & Management Software Viewing | |
Normal Parameters | ||
Temperature | -30℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /110mA | |
power | 1.3W | |
size | 38* 38*10mm (without lens) | |
Weight | 11g | |
