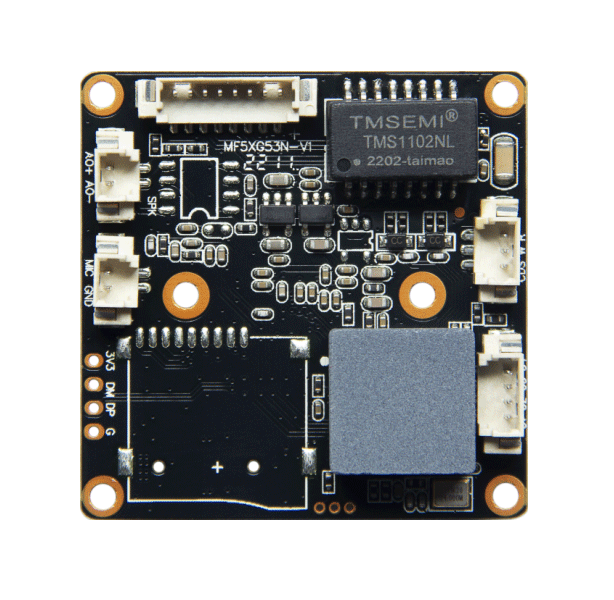

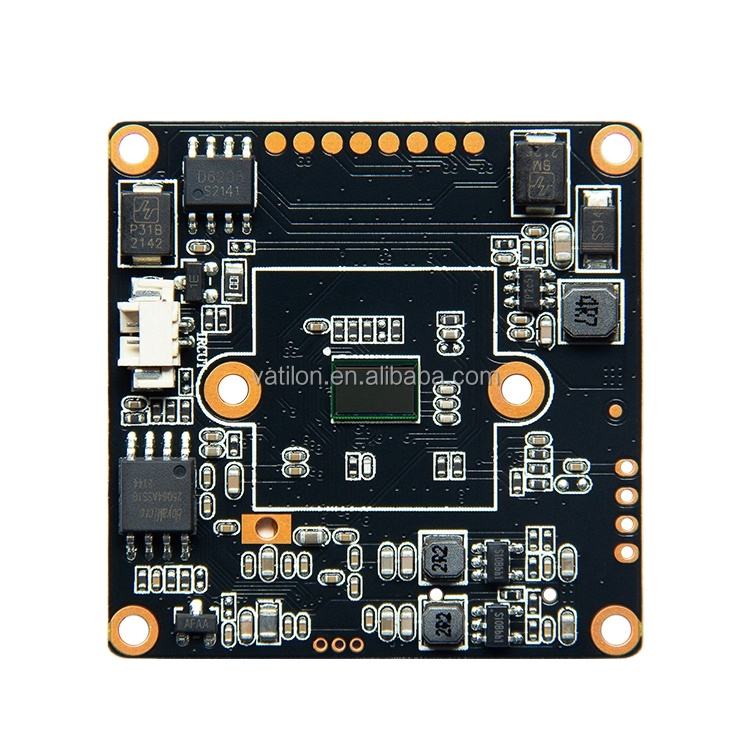

4MP H.265 Fullhan DSP with Excellent Image Quality Starlight IP Camera Module Support Full Color
$8.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | PA2 |
Module | Fullhan 2K DSP+1/2.9" 4MP CMOS |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input |
Audio Output | 1CH MIC output, Speaker Optional |
LED Type | CDS IR LED, Warm LED, White LED (Support PWM) |
IO port | 1CH RESET, IR CUT, Alarm Input/Output |
Coding Format | H.265/H.264 |
Main Steam | 2560*1440，1-30FPS/S 2304*1296、1920*1080、1280*720，1-30 FPS/S |
Sub steam | 704*576、800*448、640*480、640*360、352*288，1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name、Date & Time、Frame、Resolution、4 lines of character overlay |
Data Record | Video, picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | NETCOM / ONVIF 2.6 |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX) |
Mobile Client | Support iPhone、iPad、Android |
Temperature | -30℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V-110mA |
power | 1.3W |
size | 38* 38*10mm (without lens) |
Weight | 10g |
