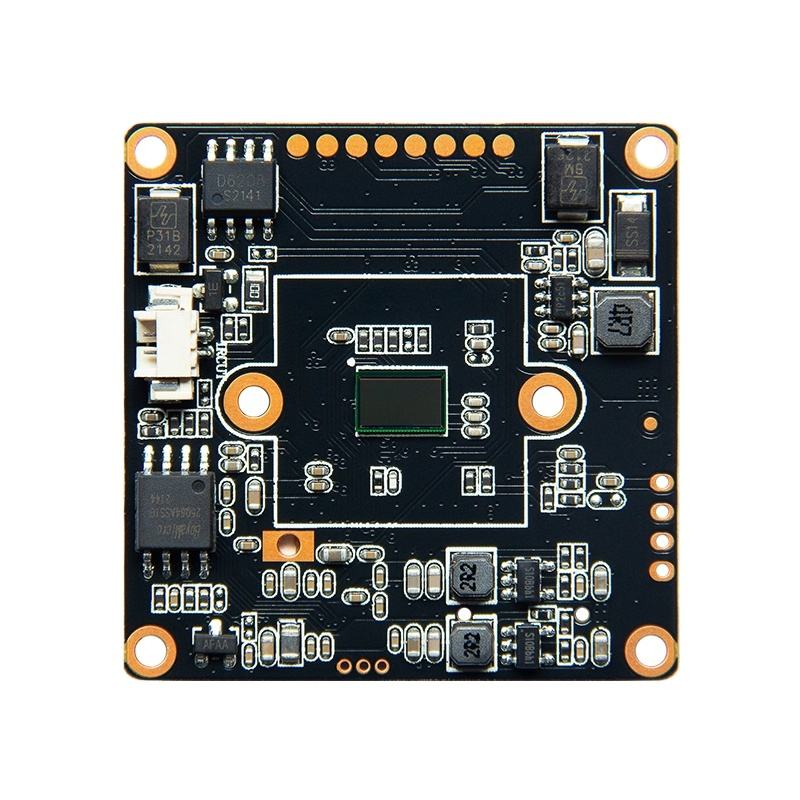

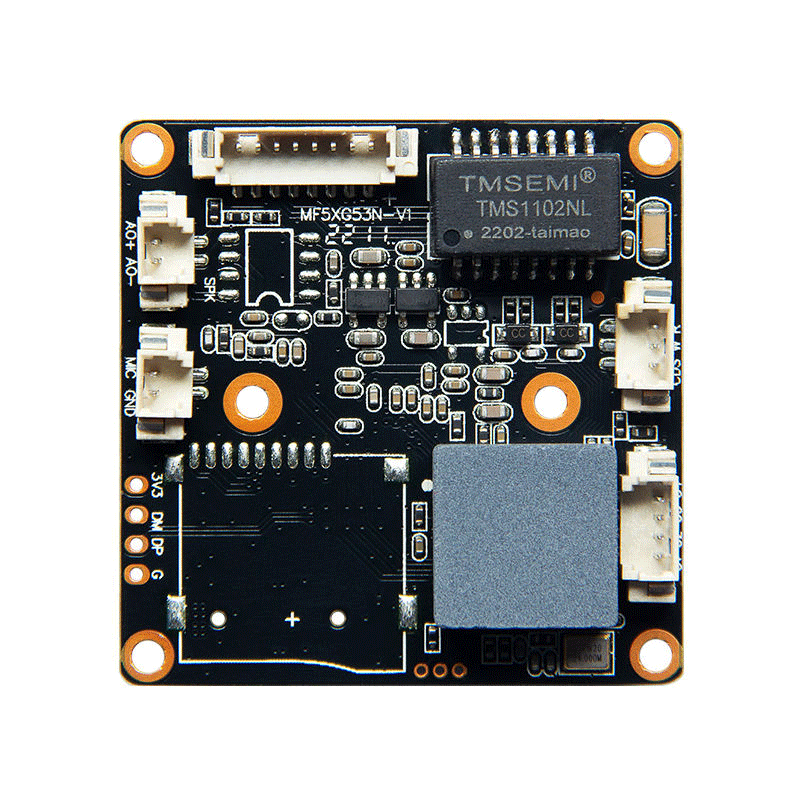

5MP Low Cost Starlight H.265 IP Camera Board Full Color Image Support Warm Light +Dual Light+IR LED Light
$9.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | PA4 |
Module | FH8852V200+1/3" GC5053 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input |
Audio Output | 1CH MIC output, Speaker Optional |
LED Board Function | LED Board Driving Circuit, Dual Light |
IO port | 1CH RESET |
Coding Format | H.265/H.264 |
Main Steam | 2592*1944, 5-20FPS/S,2560*1440、2304*1296、1920*1080、1280*720，5-25 FPS/S |
Sub steam | 704*576、800*448、640*480、640*360、352*288，1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name、Date & Time |
Data Record | Video, picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | NETCOM / ONVIF 2.6 |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX) |
Mobile Client | Support iPhone、Android |
Temperature | -20℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V /POE |
power | 1.5W |
size | 38* 38*10mm (without lens) |
Weight | 0.06g |
