H.265 low-illumination Network IPC board Camera Module CMOS Sensor Night Vision infrared CCTV ip module camera
$7.90
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | PA2 |
Hardware | |
Module | Fullhan 2K DSP+1/3" 4MP Cmos Sensor |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR；＞80db |
Port | |

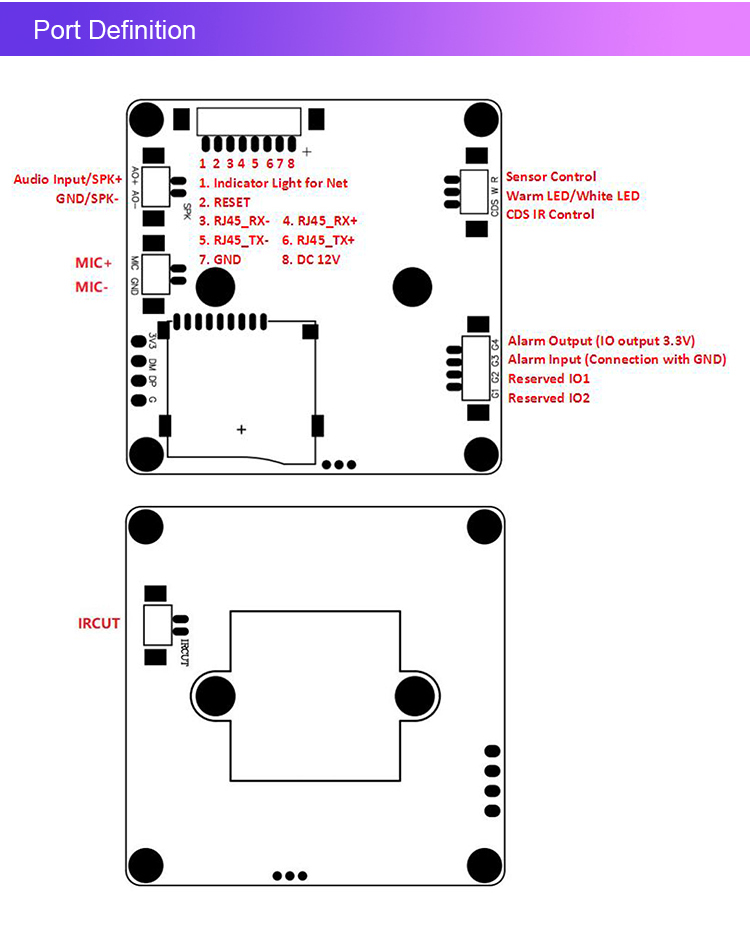

Audio/Intercom Input | MIC Input |
Audio Output | MIC linear output & speaker optional |
LED TYPE | CDS IR & Sensor Control & Warm LED |
IO port | IR CUT & Reset & Alarm Input & Output |
Others | AF Motorized Lens Optional |
Video Coding | |
Coding Format | H.265/H.264 |
Main Stream | 2560*1440，1-30FPS/S |
Main Stream | 2304*1296、1920*1080、1280*720，1-30 FPS/S |
Sub Stream | 704*576、640*480、640*360、352*288，1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support channel name、Date、1 group of characters superposition adjustable |
Data Transmission &Storage | |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
