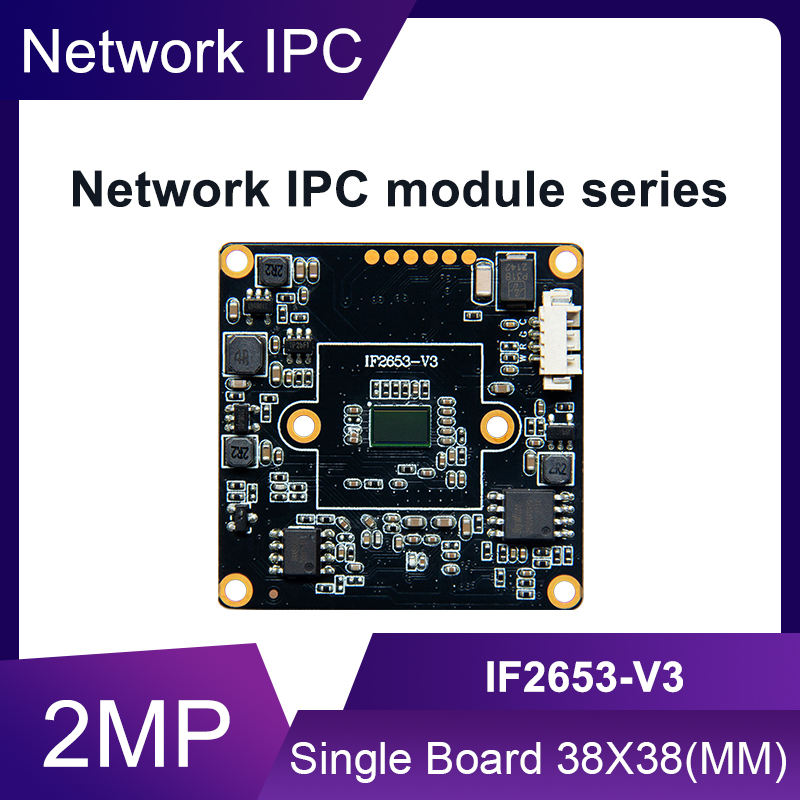

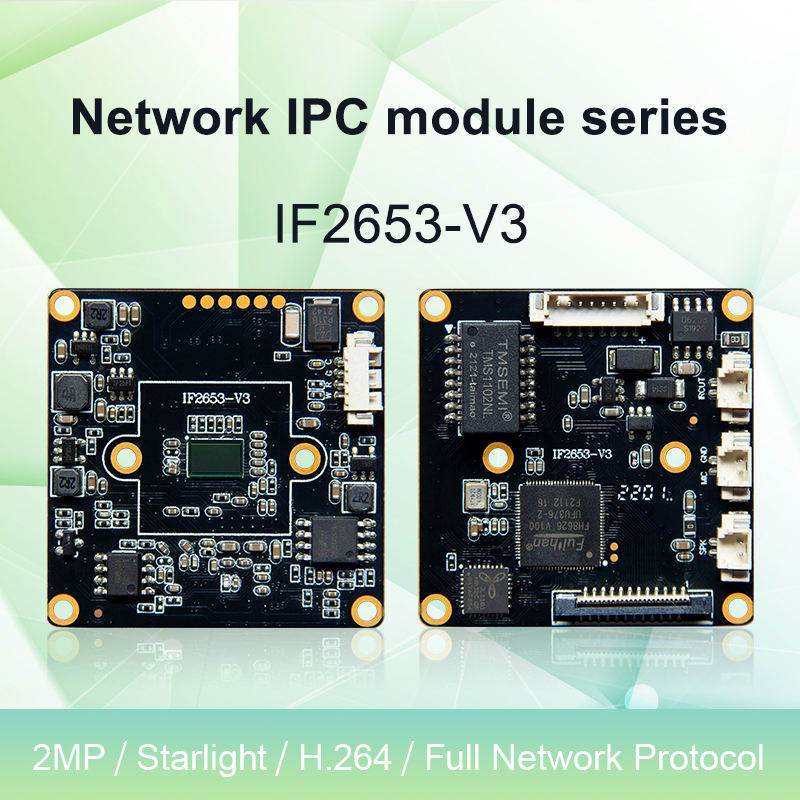

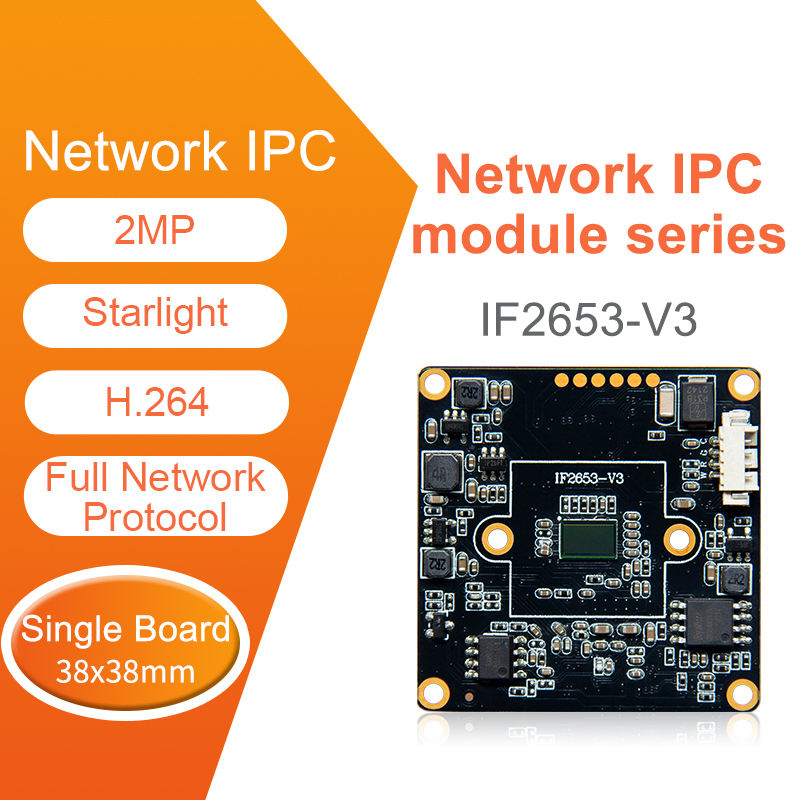

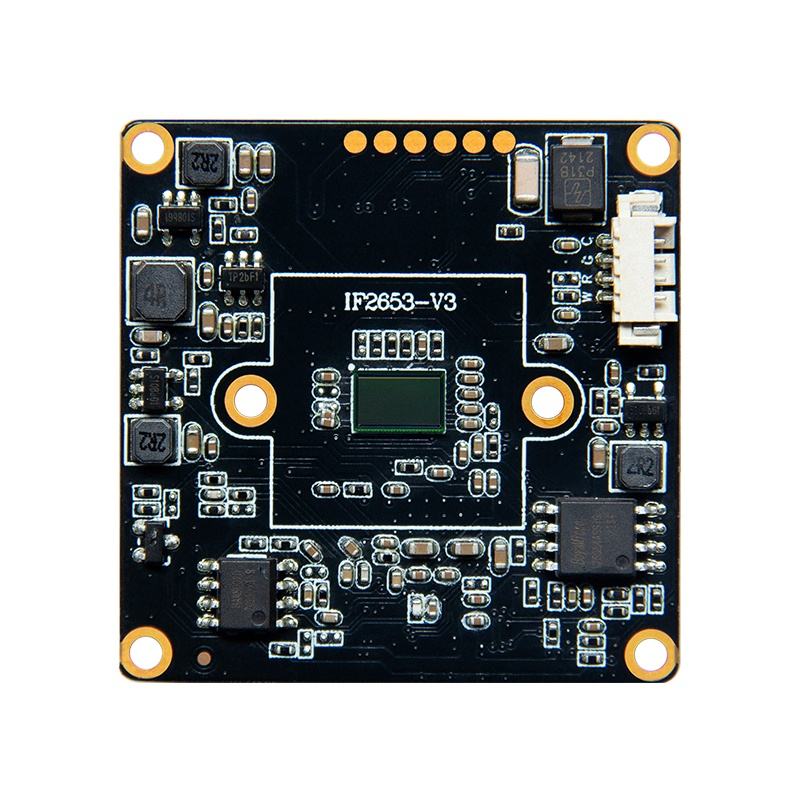

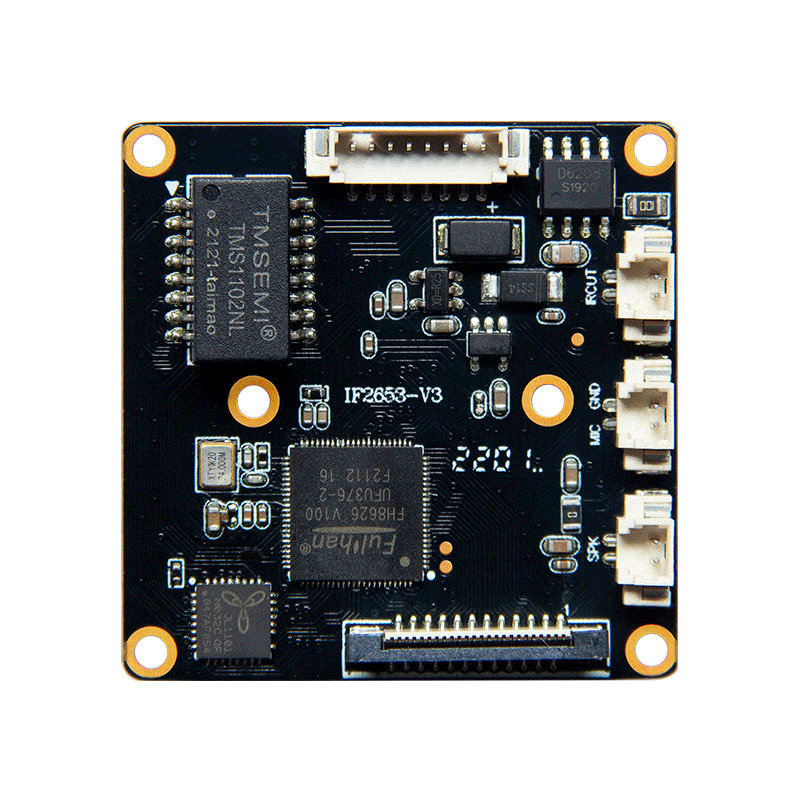

IP Camera Module CMOS Image Sensor 1920*1080 2MP Starlight Network Camera Module
$8.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | IF2653 |
Hardware | |
Module | FH8626+1/2.9" GC2053 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR；＞80db |
Port | |
Audio/Intercom Input | 1CH MIC Input/linear input |
Audio Output | 1CH output |
IO port | 1CH RESET |
SD card | NO |
WIFI | NO |
Video Coding | |
Main Steam | H.264 |
Main Steam | 1920*1680，5-20FPS/S |
Sub steam | 1280*720，5-20 FPS/S |
Sub steam | 640*360 ,5-20 FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support channel name、Date、1 group of characters superposition adjustable |
Data Transmission &Storage | |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Browser | Support IE6.0 and above browser Client Browser |
