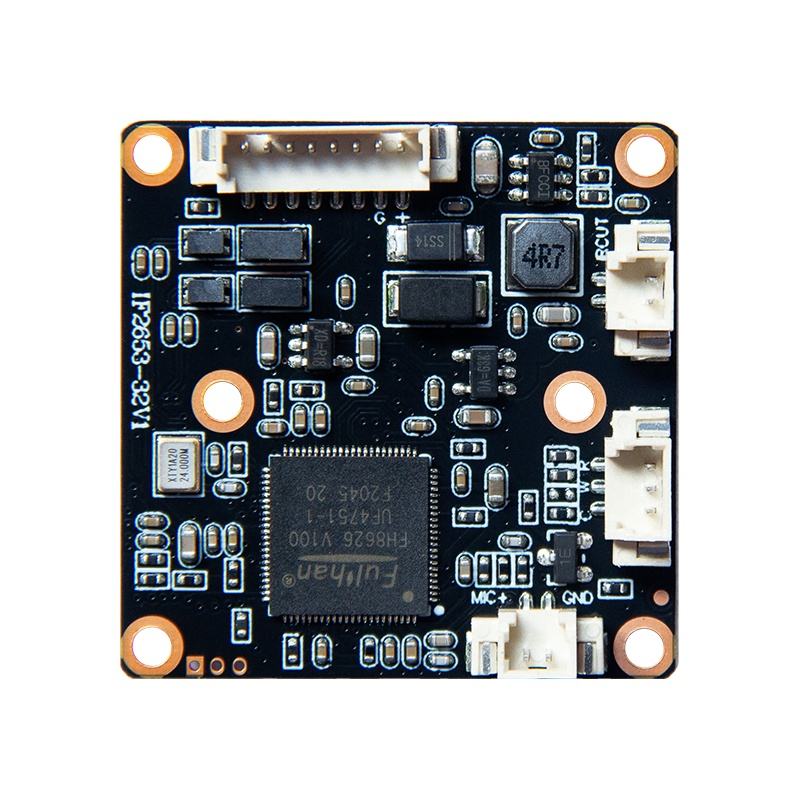

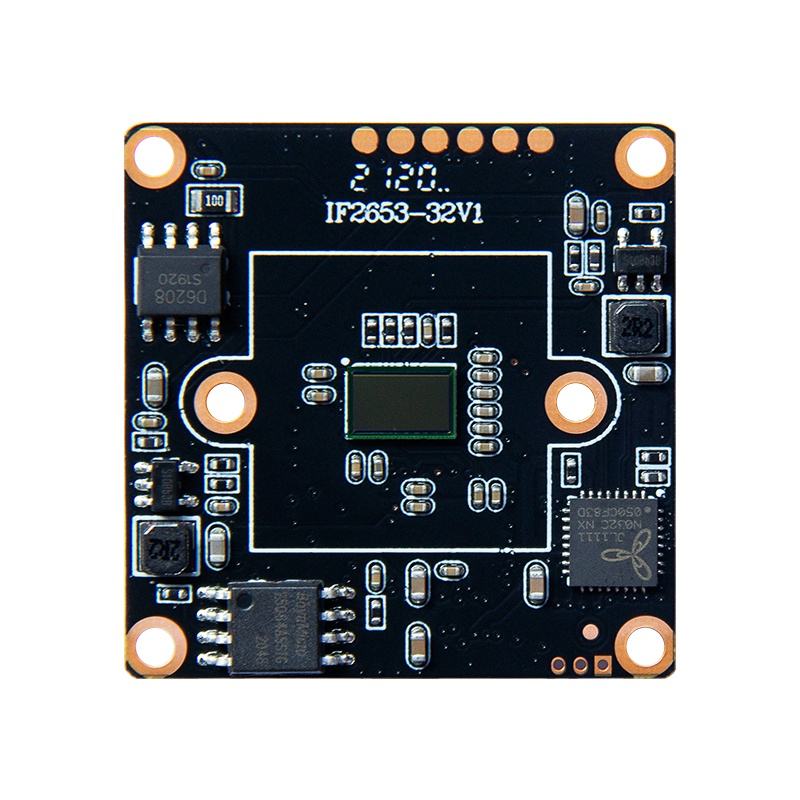

32mm*32mm 1080P 2MP Mini IP Camera Module Small board
$7.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | IF2653-32V1 | |
Module | FH8626+1/2.9" GC2053 | |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR；＞80db | |
Audio/Intercom Input | 1CH MIC Input/linear input | |
Audio Output | 1CH output | |
IO port | 1CH RESET | |
SD card | NO | |
WIFI | NO | |
Coding Format | H.264 | |
Mainstream | 1920*1680，5-20FPS/S | |
1280*720，5-20 FPS/S | ||
Substream | 640*360 ,5-20 FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support channel name、Date、1 group of characters superposition adjustable | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | All Net Connect / ONVIF 2.6 | |
Browser | Support IE6.0 and above browser Client Browser | |
Temperature | -20℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /POE | |
power | 1.5W | |
size | 32* 32*10mm (without lens) |
