0.001Lux 3840*2160 Pixel Starlight 8MP NIGHT VISION H.265 38*38mm IP camera PCB module
$19.70
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H8S |
Module | Fullhan 4K DSP+1/2.8" IMX415 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input |
Audio Output | 1CH Output, Speaker Optional |
Light Type | CDS IR LED, Warm LED, White LED |

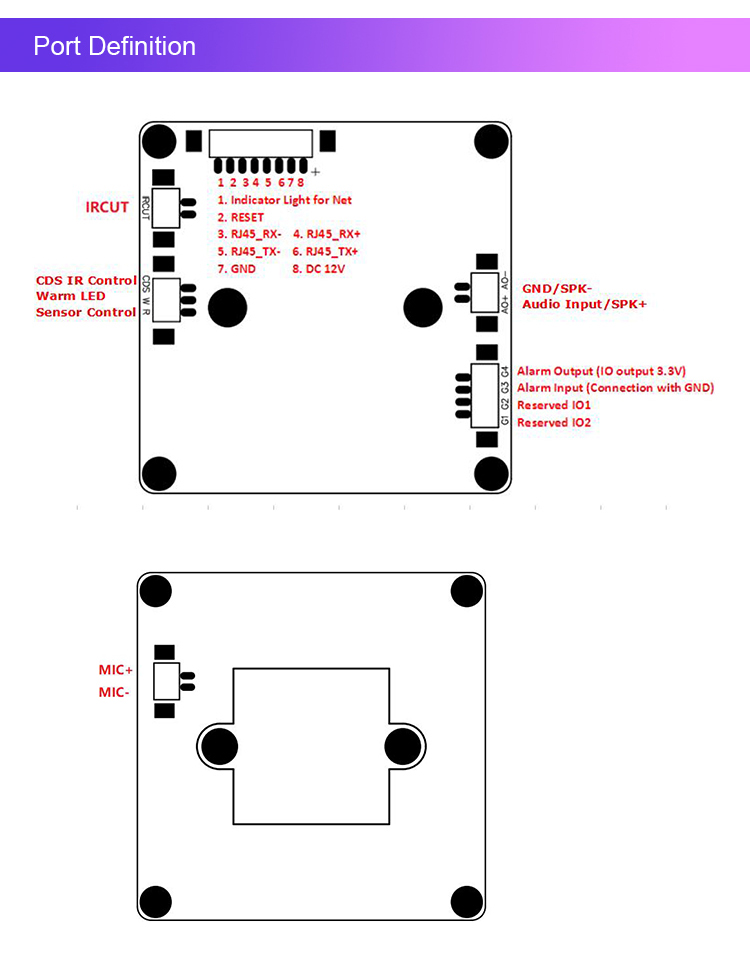

IO port | IR CUT, 1CH RESET, Alarm In, Alarm Out |
Others | Extra Motorized Zoom Auto Focus Lens Optional |
Coding Format | H.265/H.264 |
Mainstream | 3840*2160 , 1-15FPS/S |
2880*1664、2560*1440、2304*1296、1920*1080、1280*720，1-15FPS/S | |
Substream | 704*576、800*448、640*480、640*360、352*288，1-15FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | ONVIF |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser(insert Web Server) |
Mobile Client | Support iPhone、iPad、Android |
Temperature | -30℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V /150mA |
power | 1.8W |
size | 38* 38*10mm (without lens) |
