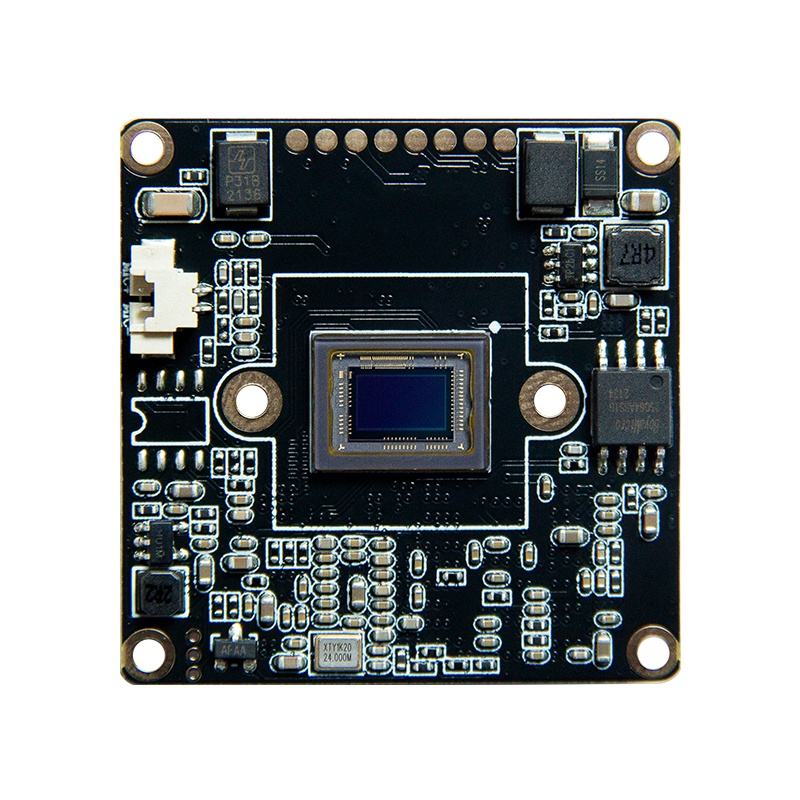

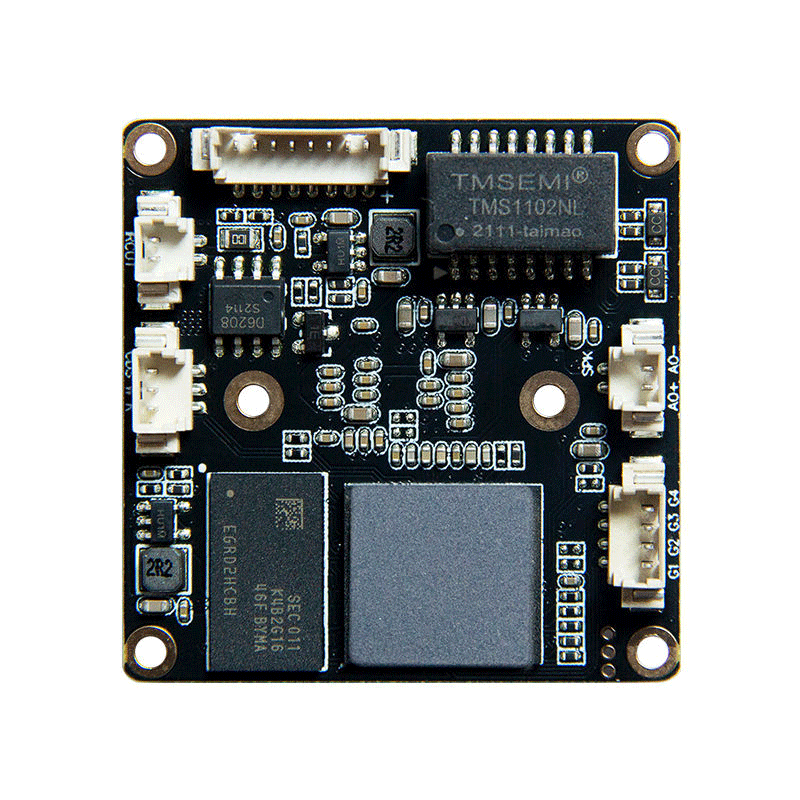

8MP IMX415 4K Starlight H.265 IP Camera Board Full Color Image Support Warm Light +Dual Light+IR LED Light
$25.63
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Specification
Model No. | H8S | ||
Module | Fullhan 4K DSP+1/2.8" IMX415 | ||
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; | ||
S/N | ≥50db(AGC OFF) | ||
WDR | DWDR; ＞80db | ||
Audio Input | 1CH MIC Input | ||
Audio Output | 1CH Output, Speaker Optional | ||
Light Type | CDS IR LED, Warm LED, White LED | ||
IO port | IR CUT, 1CH RESET, Alarm In, Alarm Out | ||
Others | Extra Motorized Zoom Auto Focus Lens Optional | ||
Coding Format | H.265/H.264 | ||
Mainstream | 3840*2160 , 1-15FPS/S | ||
2880*1664、2560*1440、2304*1296、1920*1080、1280*720，1-15FPS/S | |||
Substream | 704*576、800*448、640*480、640*360、352*288，1-15FPS/S | ||
Video Coding Compression | 128Kbps-8192bps continuous adjustable | ||
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding | ||
Data Record | Video,picture | ||
Storage Method | Cycling Recording, Alarm Recording | ||
Alarm Transfer | IO output, browser, management software | ||
Protocol | ONVIF | ||
Mobile | Support IOS, Android | ||
Browser | Support IE6.0 and above browser(insert Web Server) | ||
Mobile Client | Support iPhone、iPad、Android | ||
Temperature | -30℃ - +60℃ | ||
Humidity | 0% - 90% | ||
Power | DC12V /150mA | ||
power | 1.8W | ||
size | 38* 38*10mm (without lens) |
