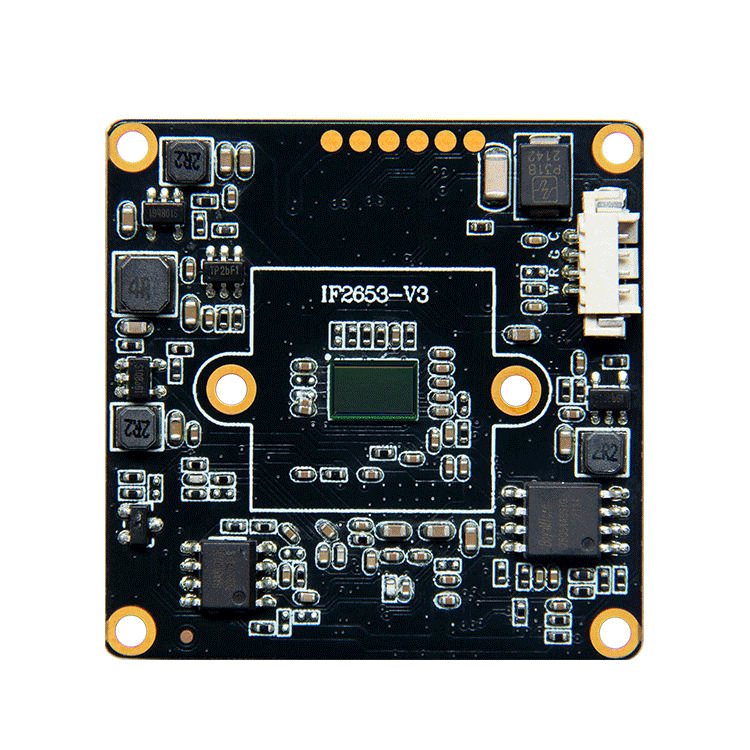

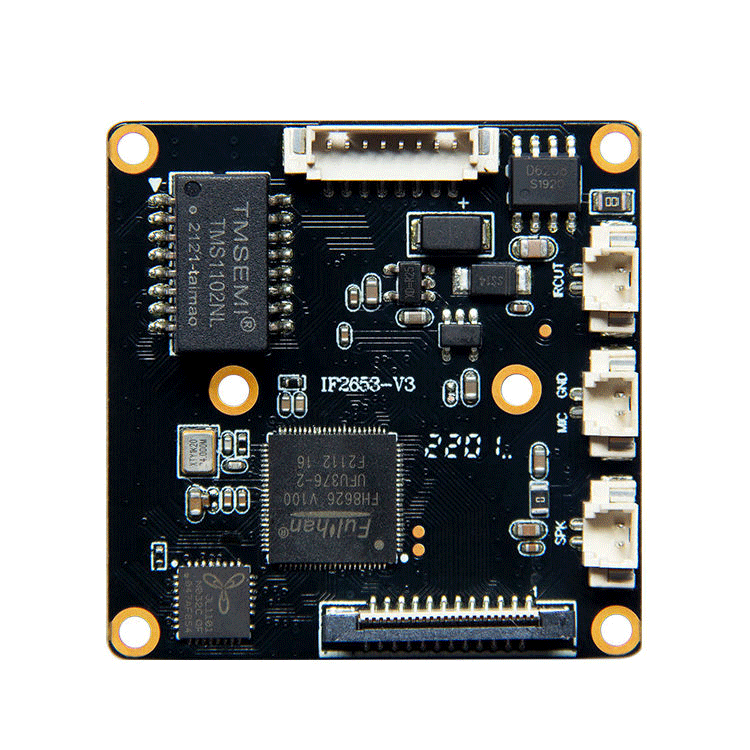

H.264 2MP 1080P Low Lux Infrared IP Camera PCB Board Module CCTV Camera Main Board
$7.90
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | IF26C |
Module | FH8626+1/2.9" GC2053 |
LUX | COLOR 0.01Lux@F1.2; B/W 0.001Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input/linear input |
Audio Output | 1CH MIC output, Speaker Optional |
LED Board Function | LED Board Driving Circuit, Dual Light |
IO port | 1CH RESET, IR CUT, Alarm Input/Output |
Others | Bulit-in POE, Support Standard POE Protocol |
Coding Format | H.264 |
Main Steam | 1920*1680，1-20FPS/S 1280*720，1-30 FPS/S |
Sub steam | 640*360 ,1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support channel name、Date、Code stream information overlay,Overlay place adjustable |
Data Record | Video, picture |
Storage Method | Manual、auto(cycle、fixed time、alarm switch、motion detection) |
Alarm Transfer | FTP、E-mail, browse, management software |
Protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP |
Mobile | Support IOS, Android |
Browser | |
Mobile Client | Support iPhone、iPad、Android |
Temperature | -20℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V-110mA /Built-in POE |
power | 1.3W |
size | 38* 38*10mm (without lens) |
Weight | 15g |
