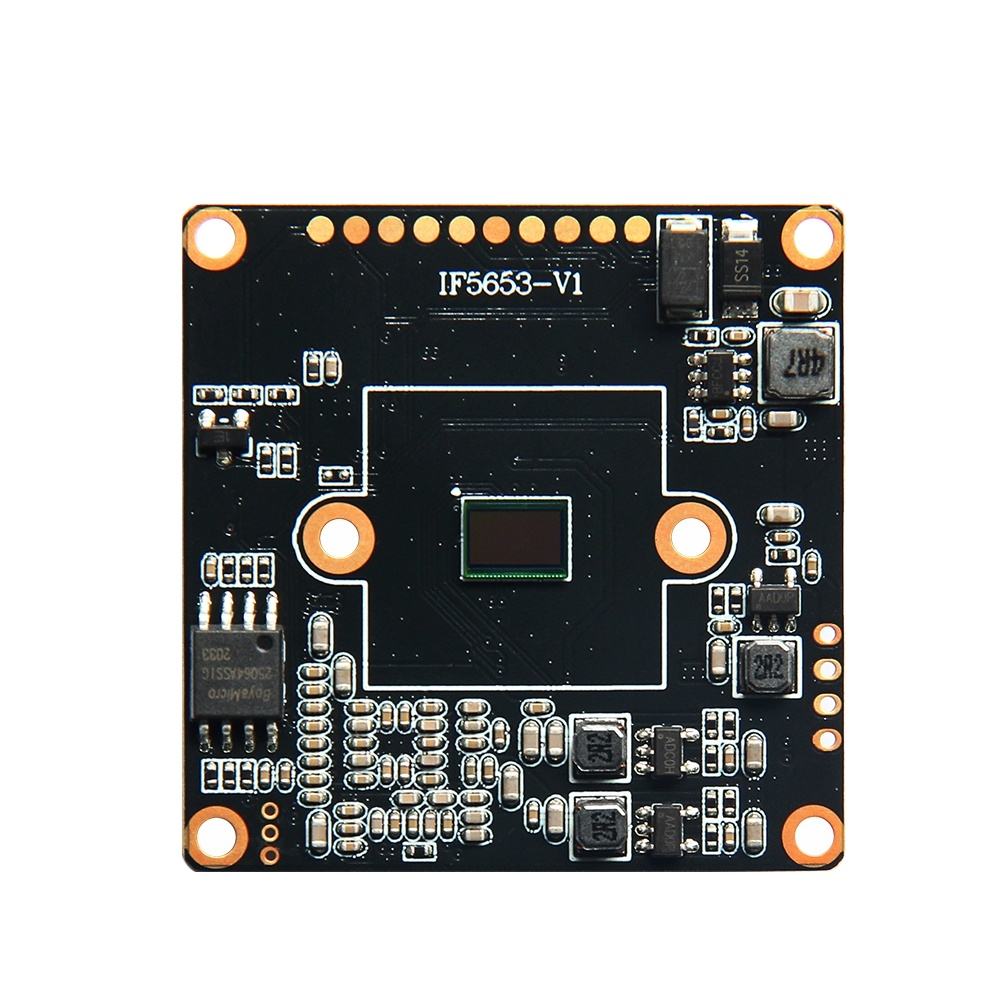

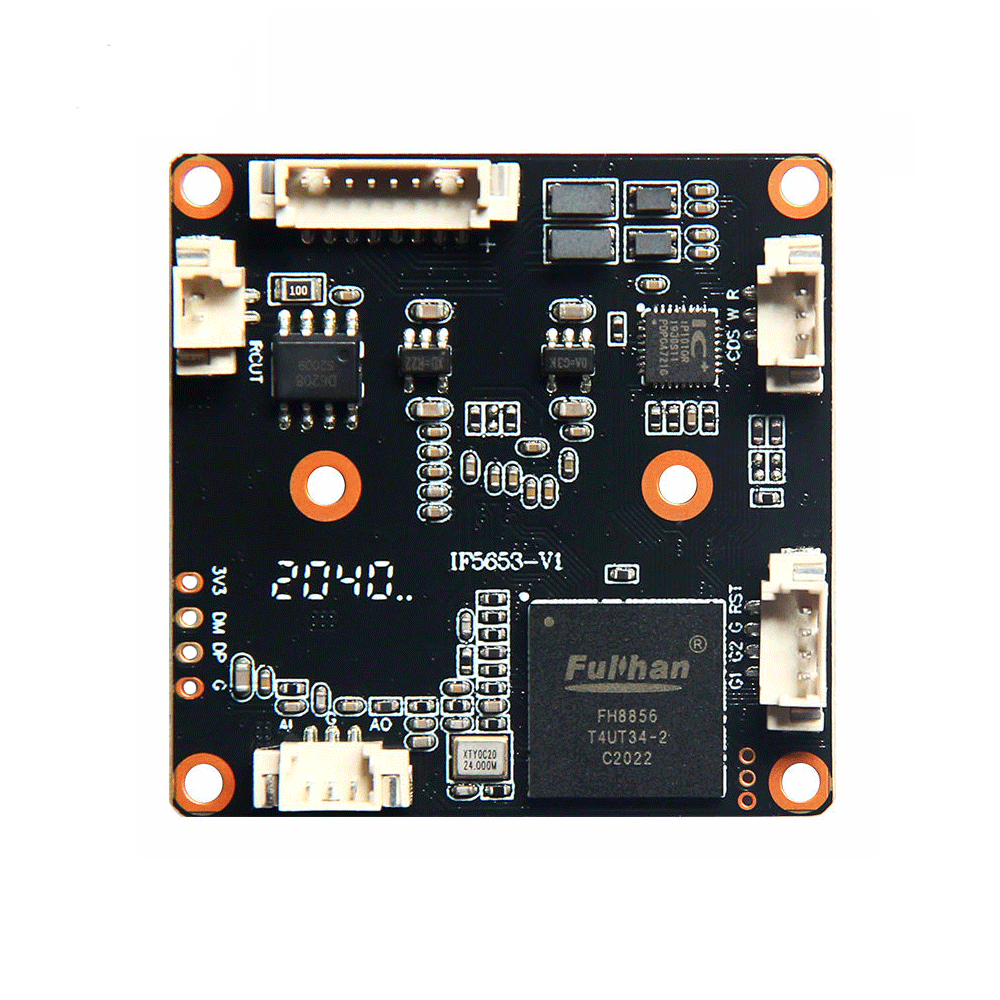

8MP H.264 H.265 CCTV IP Camera PCB Board Module
$12.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
1/3" GC5053 LOW CMOS SENSOR WITH FH8852V200 DSP, single layer with 38mm*38mm; support IR LED, white led, warm led; H.265+H.264 video coding, Support body detection and mark human frame, Main stream is 2592*1944, Sub stream is D1, Enabled with ONVIF protocol and NETCOM. | ||||||||
Model No. | PB1 | |||||||
Hardware | ||||||||
Module | FH8852V100+1/3" GC8053 | |||||||
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; | |||||||
S/N | ≥50db(AGC OFF) | |||||||
WDR | DWDR; ＞80db | |||||||
Port | ||||||||
Audio Input | 1CH MIC Input | |||||||
Audio Output | 1CH output, Speaker Optional | |||||||
IO port | 1CH RESET | |||||||
SD card | Optional | |||||||
WIFI | NO | |||||||
Video Coding | ||||||||
Coding Format | H.265/H.264 | |||||||
Resolution | Main Steam | 3840*2160 , 1-15FPS/S; 2592*1944 , 1-20FPS/S | ||||||
2560*1440、2304*1296、1920*1080、1280*720, 1-30 FPS/S | ||||||||
Sub steam | 704*576、640*480、640*360、352*288, 1-30FPS/S | |||||||
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |||||||
Subtitle Overlay | Support Channel Name、Date & Time | |||||||
Data Transmission & Storage | ||||||||
Data Record | Video, picture | |||||||
Storage Method | Cycling Recording, Alarm Recording | |||||||
Alarm Transfer | IO output, browser, management software | |||||||
Protocol | NETCOM / ONVIF 2.6 | |||||||
Mobile | Support IOS ,Android | |||||||
Browser | Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX) | |||||||
Mobile Client | Support iPhone、iPad、Android | |||||||
Temperature | -20℃ - +60℃ | |||||||
Humidity | 0% - 90% | |||||||
Power | DC12V /POE | |||||||
power | 1.5W | |||||||
size | 38* 38*10mm (without lens) | |||||||
Weight | 0.06kg | |||||||
