8MP IMX415 4K Starlight H.265 IP Camera Board Full Color Image Support Warm Light +Dual Light+IR LED Light

$16.70

Availability:

In stock

Out of stock

SKU

201010

Product Description

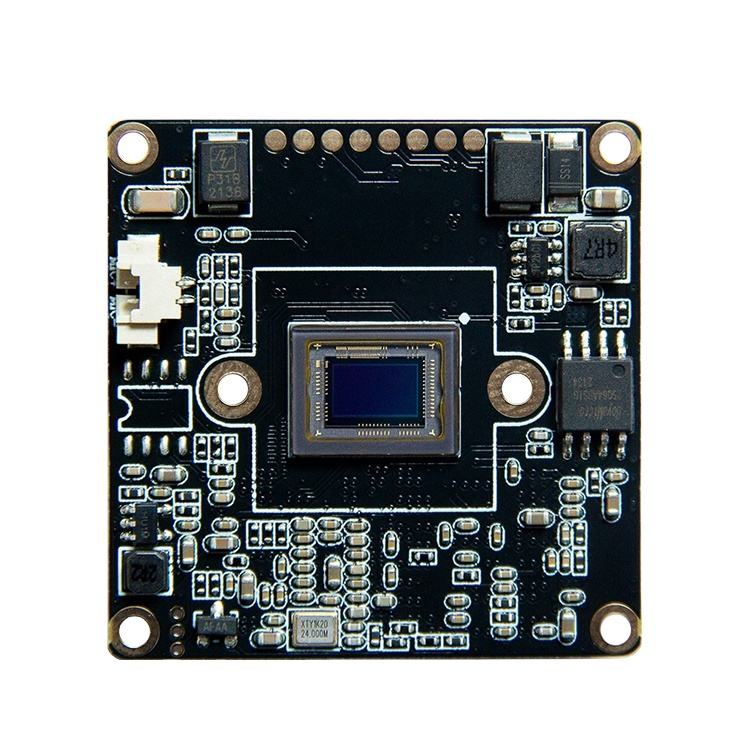

1/3" GC5053 LOW CMOS SENSOR WITH FH8852V200 DSP, single layer with 38mm38mm; support IR LED, white led, warm led; H.265+H.264 video coding, Support body detection and mark human frame, Main stream is 25921944, Sub stream is D1, Enabled with ONVIF protocol and NETCOM.
Model No.			H8S
Hardware
Module			Fullhan 4K DSP+1/2.8" IMX415
LUX			COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N			≥50db(AGC OFF)
WDR			DWDR; ＞80db

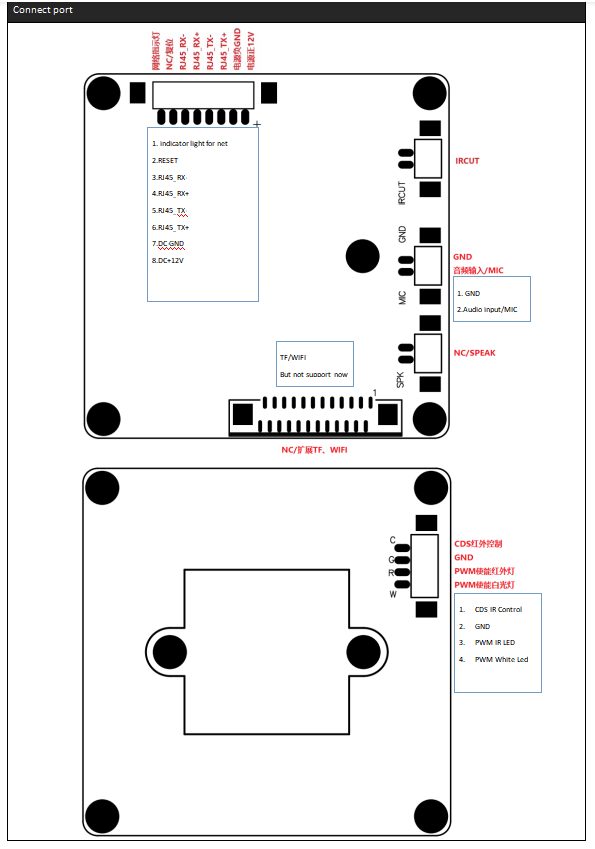

Port
Audio Input			1CH MIC Input
Audio Output			1CH output, Speaker Optional
IO port			1CH RESET
SD card			Optional
WIFI			NO
Video Coding
Coding Format			H.265/H.264
Resolution	Main Steam	3840*2160 , 1-15FPS/S;
	Main Steam			28801664、25601440、23041296、19201080、1280*720，1-15FPS/S
		Sub steam	704576、800448、640480、640360、352*288，1-15FPS/S
Video Coding Compression			128Kbps-8192bps continuous adjustable
Subtitle Overlay			Support Channel Name, Date & Time, Resolution & 4 lines characters adding
Data Transmission & Storage
Data Record			Video, picture
Storage Method			Cycling Recording, Alarm Recording
Alarm Transfer			IO output, browser, management software
Protocol			ONVIF
Mobile			Support IOS ,Android
Browser			Support IE6.0 and above browser(insert Web Server)
Mobile Client			Support iPhone、iPad、Android
Temperature			-30℃ - +60℃
Humidity			0% - 90%
Power			DC12V /150mA
power			1.8W
size			38* 38*10mm (without lens)
Weight			12g
