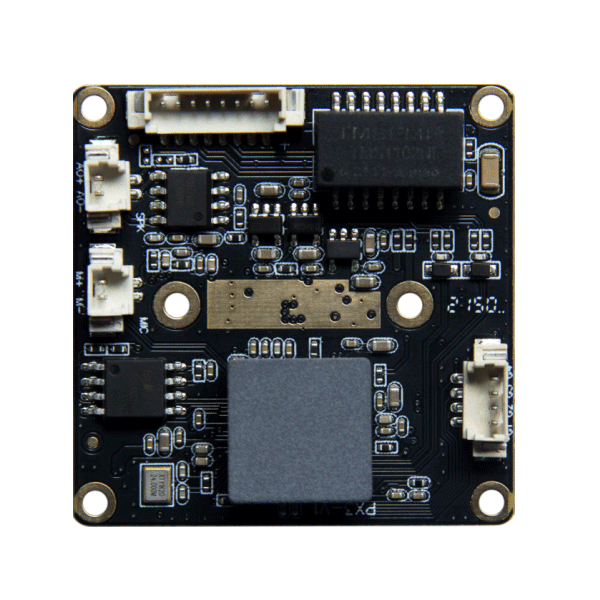

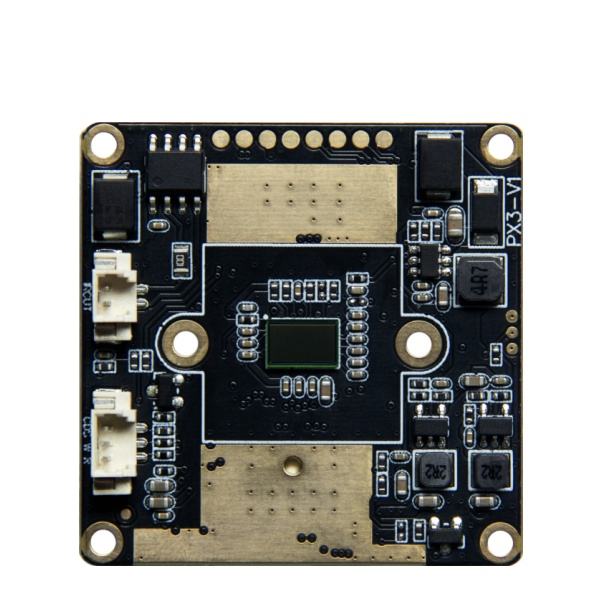

4MP H.265 starlight camera module Night vision fullhan network camera ip board
$8.70
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | H4H |
Module | Fullhan 2K DSP+1/2.9"4MP CMOS |
LUX | COLOR 0.01Lux@F1.2; B/W 0.001Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input |
Audio Output | 1CH Output, Speaker Optional |
Light Type | CDS IR LED, Warm LED, White LED (Support PWM) |
IO port | IR CUT, 1CH RESET, Alarm In, Alarm Out |
Others | Extra Motorized Zoom Auto Focus Lens Optional |
Coding Format | H.265/H.264 |
Main Stream | 2560*1440 , 1-30FPS/S |
Main Stream | 2304*1296、1920*1080、1280*720, 1-30FPS/S |
Sub Stream | 704*576、800*448、640*480、640*360、352*288，1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | ONVIF |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser(insert Web Server) |
Temperature | -30℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V /110mA |
power | 1.3W |
size | 38* 38*10mm (without lens) |
Weight | 11g |
