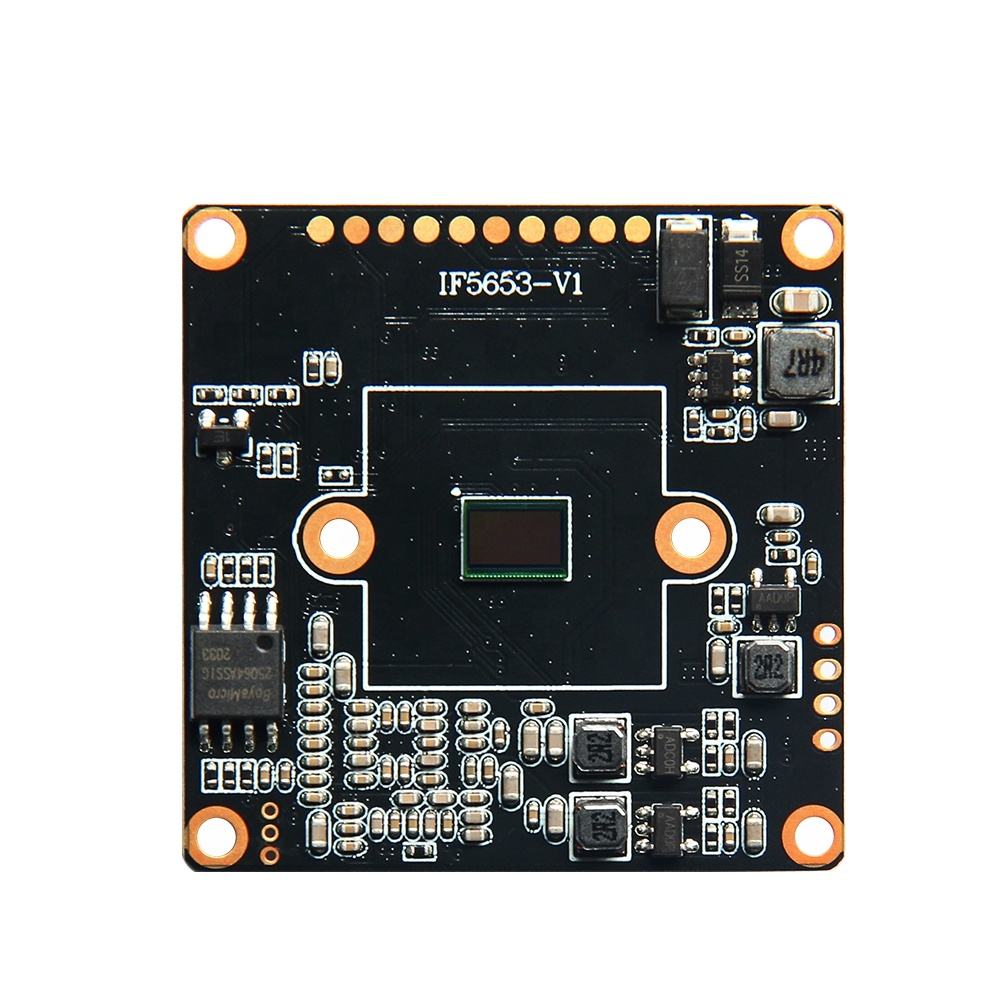

Fullhan Low Lux 4K 8MP H.265 IP Camera Module
$19.70
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | PB1 |
Hardware | |

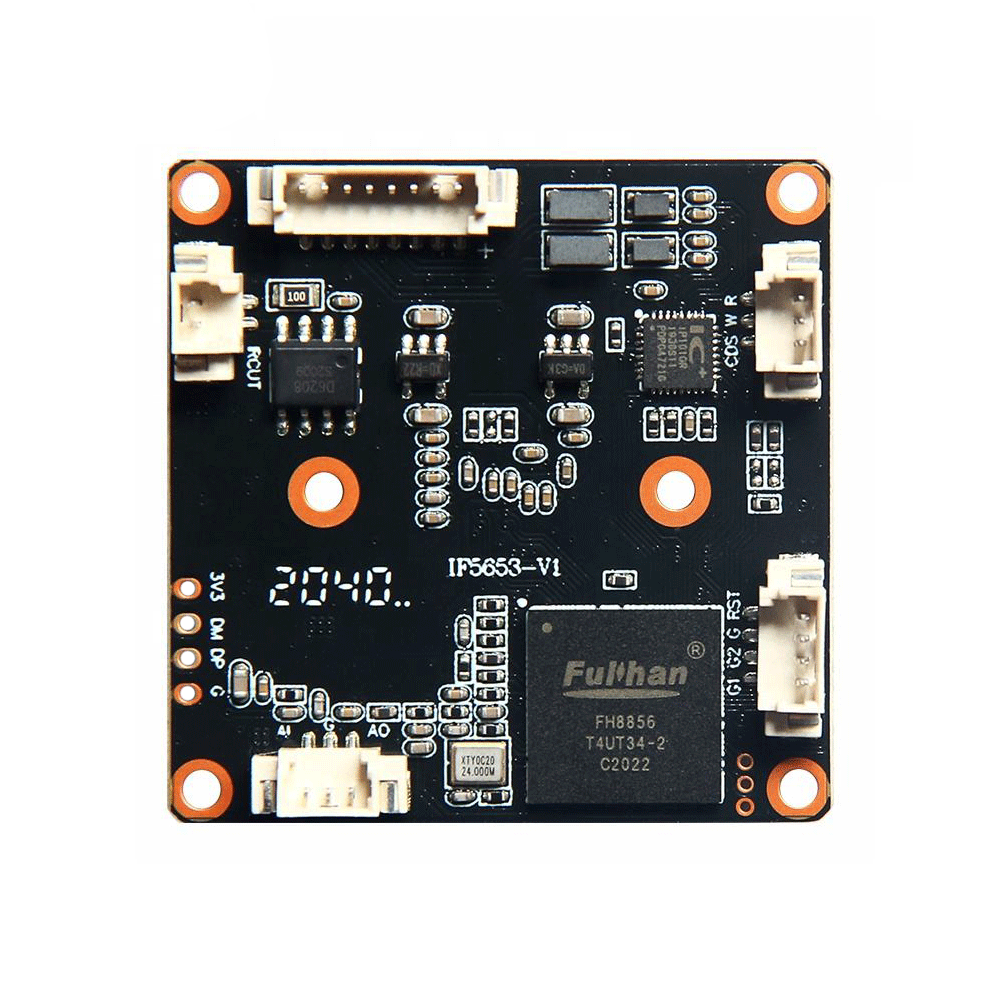

Module | FH8856V100+1/3" GC8053 |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; |
S/N | ≥50db(AGC OFF) |
WDR | DWDR; ＞80db |
Audio Input | 1CH MIC Input |
Audio Output | 1CH Output, Speaker Optional |
IO port | 1CH RESET |
SD card | Not support now |
WIFI | NO |
Main Steam | 3840*2160 , 5-15FPS/S; 2592*1944 , 5-20FPS/S |
Main Steam | 2560*1440、2304*1296、1920*1080、1280*720, 5-25 FPS/S |
Sub steam | 704*576、640*480、640*360、352*288, 5-25FPS/S |
Sub steam | 2560*1440、2304*1296、1920*1080、1280*720, 5-25 FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable |
Image Adjustment | Brightness, contrast, saturation, sharpness |
Subtitle Overlay | Support Channel Name、Date & Time .5 groups of characters superposition adjustable |
Data Record | Video,picture |
Storage Method | Cycling Recording, Alarm Recording |
Alarm Transfer | IO output, browser, management software |
Protocol | All Net Connect / ONVIF 2.6 |
Mobile | Support IOS, Android |
Browser | Support IE6.0 and above browser Client Browser |
Temperature | -20℃ - +60℃ |
Humidity | 0% - 90% |
Power | DC12V /POE |
power | 1.5W |
size | 38* 38*10mm (without lens) |
Weight | 0.06kg |
