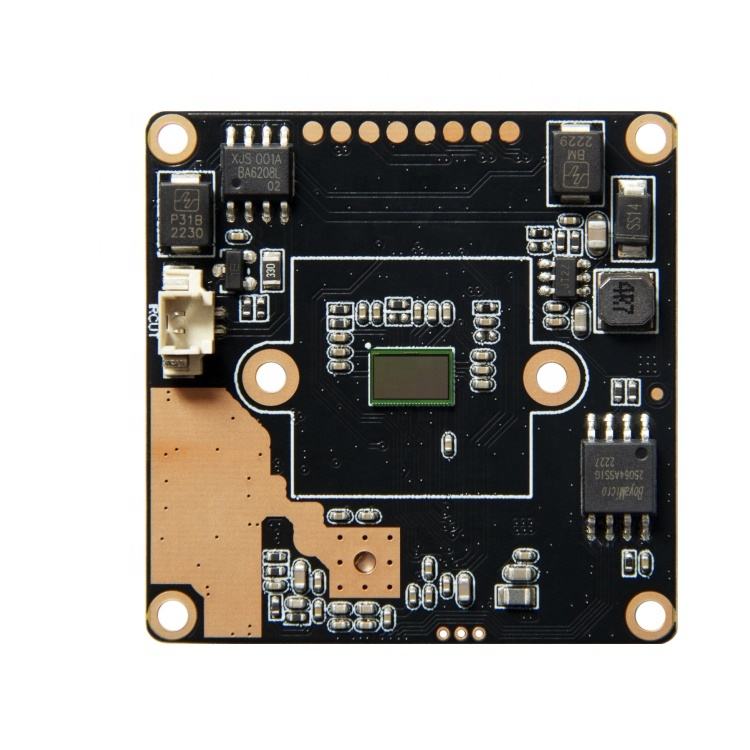

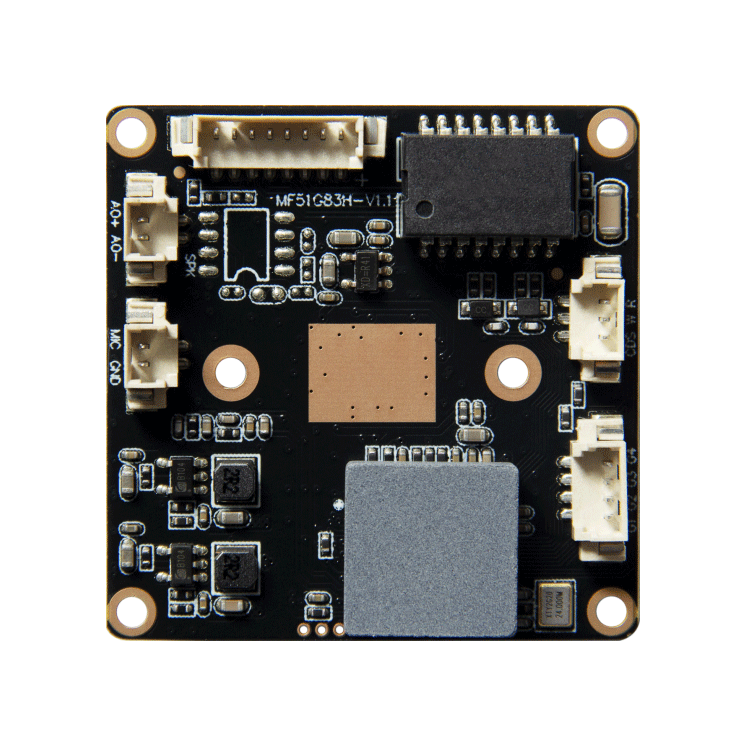

4MP H.265 Warm Light Dual Lights IR LED CCTV Camera Module Board with Audio Support Human Detection
$6.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | H42 | |
Module | Fullhan 2K DSP+1/3"4MP CMOS | |
LUX | Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR；＞80db | |
Audio Input | Audio MIC Input | |
Audio Output | 1CH Output, Speaker Optional | |
Light Type | CDS IR LED, Warm LED, White LED (Support PWM) | |
IO Function | IR CUT, 1CH RESET, Alarm In, Alarm Out | |
Others | Extra Motorized Zoom Auto Focus Lens Optional | |
Main Stream | 2560*1440，1-25fps/s | |
2304*1296、1920*1080、1280*720，1-30fps/s | ||
Sub Stream | 704*576、640*480、640*360、352*288，1-30fps/s | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support Channel Name, Date & Time, Resolution & 4 lines characters adding | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | ONVIF | |
Browser | Support IE6.0 and above browser(insert Web Server) | |
Mobile | Support IOS、Android Platform | |
Temperature | -30℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V / 110mA | |
Consumption | 1.3W | |
Dimension | 38* 38*10mm |
