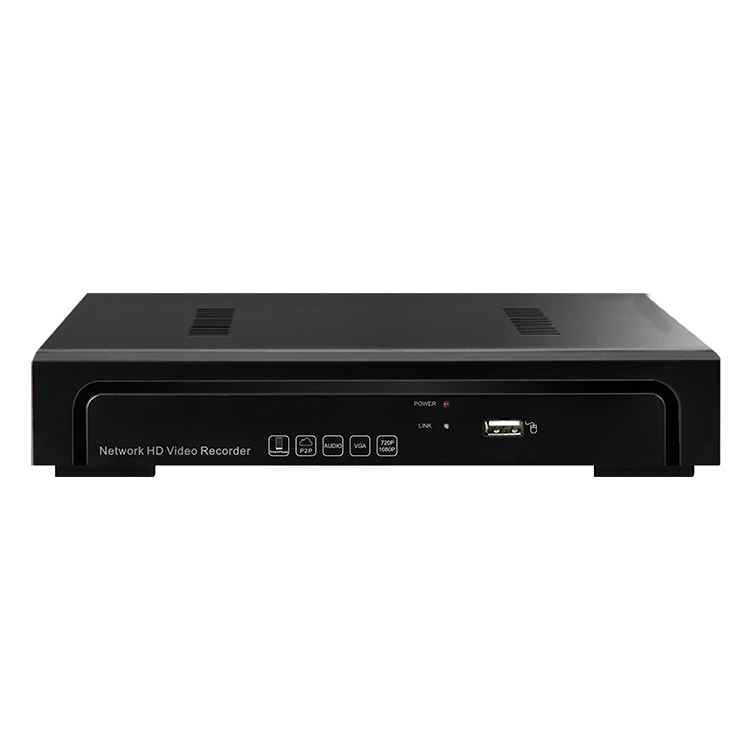

16ch 4k nvr
$62.64
Availability:
In stock
Out of stock
Variations
Product Description
| Video and audio input | Network video input | 4ch compressed video input |
| Network access bandwidth video | 80M | |
| Audio Input | IPC composite audio input | |
| Video and audio output | HDMI output | 1CH,4K(3480*2160)/30Hz,, 1080P(1920*1080)/60Hz |
| Audio Output | 1×RCA port | |
| Video and audio codec parameters | Video Standard | H.265/H.264/MJPEG |
| Video Resolution | 12M/8M/5M/3M/1080P/720P | |
| Encode Playback | Max support 4CH 1080P playback | |
| Recording Management | Video / Capture way | Manual recording,timer recording,event recording,motion detection recording,alarm recording,motion detection recording/alarm recording,motion detection recording & alarm recording |
| Playback Way | Time-phased playback,routine playback,event playback,external file playback,log playback | |
| Backup Way | Routine backup,event backup,record cutting backup | |
| HDD | HDD Port | 2×SATA ports |
| Max Capacity | Each port supports 6TB capacity | |
| External Ports | Network Port | 1 RCA,10M/100 self-adaptive |
| USB Port | 3ports: 1×USB2.0(front),2×USB 3.0(back) | |
| Serial Port | 1×RS-485 | |
| Alarm Input | 4ch alarm input,low electrical level effective,green connection line port | |
| Alarm Output | 1ch alarm output,Relay touch (1A@24VDC), NO,NC can program |
