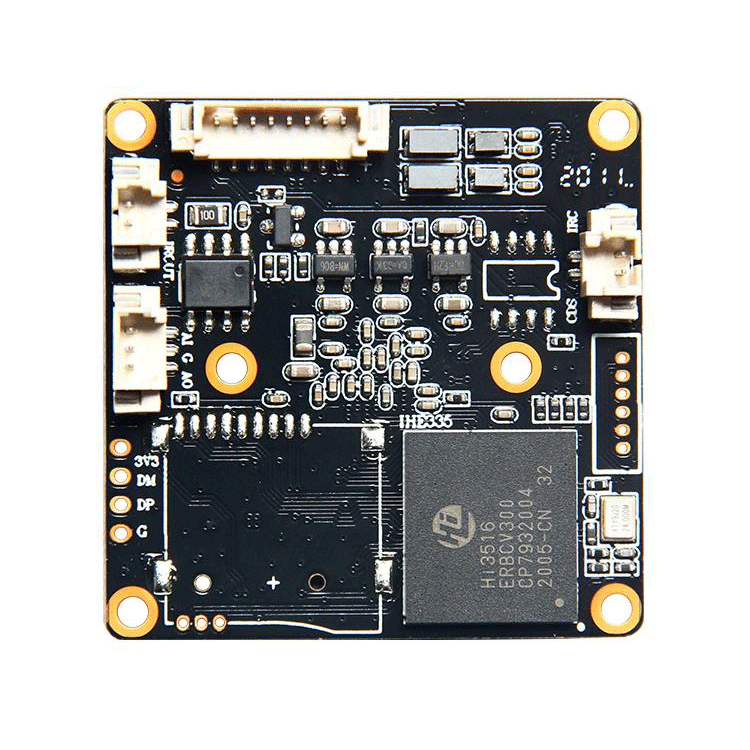

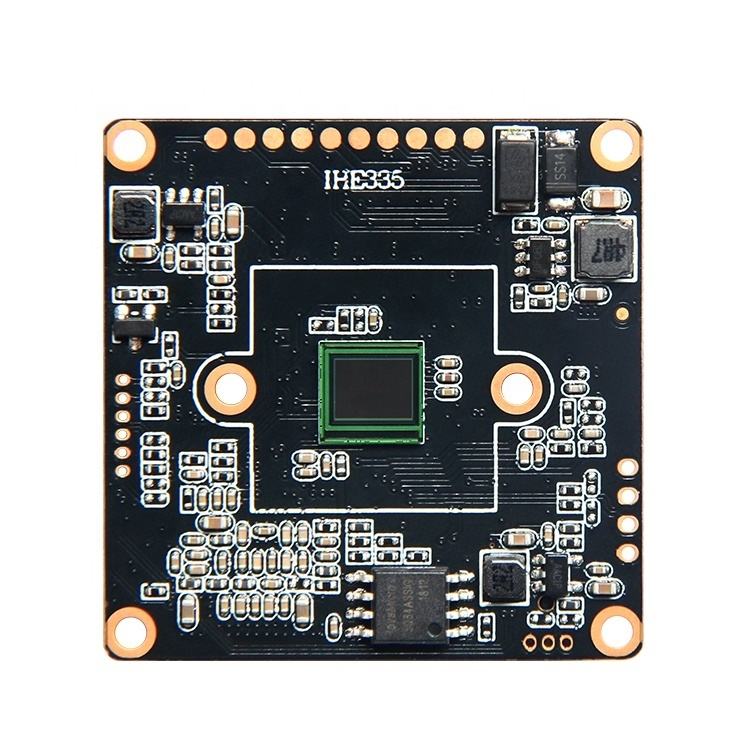

H.265 and H.264 5MP Low Lux IP CCTV Camera Board Support with Audio +Warmlight +Whitelight
$23.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Spec.&Model | IHE335 | |
Chipest | HI3516EV300+1/2.8" SONY IMX335 | |
Illumination | Color 0.05Lux@F1.2; B&W0.005Lux@F1.2 | |
SNR | ≥50db(AGC OFF) | |
WDR | DWDR：＞80db | |
Audio Input | 1CH MIC Input/linear input | |
Audio Output | 1CH Audio Input | |
IO Function | 1CH Reset、1CH Alarm input、1CH Alarm output | |
SD Card | Default non-support, TF card slot by extend board optional,Max 128G | |
WIFI | Default non-support, WIFI Module by extend board optional | |
Coding Format | H.264、H.265 | |
Mainstream | 2592*1944，1-20 FPS/S | |
2560*1440、2304*1296、1920*1080、1280*720，1-30 FPS/S | ||
Substream | 704*576、640*480、640*360、352*288，1-30 FPS/S | |
Video-coding Compression | 128Kbps-3072bps continuous adjustable | |
Subtitle Overlay | Support channel name、Date、Four position of character stack is adjustable | |
Data Record | Video,Picture | |
Storage Method | Circular Recording, Alarm Recording | |
Alarm Transfer | Browser, Management Software,IO Output | |
Support Protocol | Default ONVIF 2.6&Full network protocol | |
PC Browser | Support IE6.0 and above browser | |
Mobile App | Support IOS、Android | |
Temperature | -20℃ - +60℃ | |
Humidity | 0% - 90% | |
Power Supply | DC12V /POE | |
Size | 38* 38*10mm (Without Lens) |
