1.3MP 960P PCB Sony Starlight with Color Image IMX225 Sensor Camera Board
$8.50
Availability:
In stock
Out of stock
Variations
Product Description
Features:
***With Sony IMX225 1.3MP CMOS,Capture moving images
***Support AHD/CVBS ,excellent performance clear picture
*** 0.01Lux(F1.2,AGC ON),0LUX with IR
***Support IR-CUT,CDS external control ,D/N
***Support OSD/UTC
***Support DWDR
***Adaptive Digital Noise Reduction,3D-DNR,2D-DNR
***6KV Lighting protection
***Support DC 6-15V power
***32x32/38x38(mm)
Model Spec. | N3125-V3 |
1.3MP AHD Camera Module | |
Detail Specifications | |

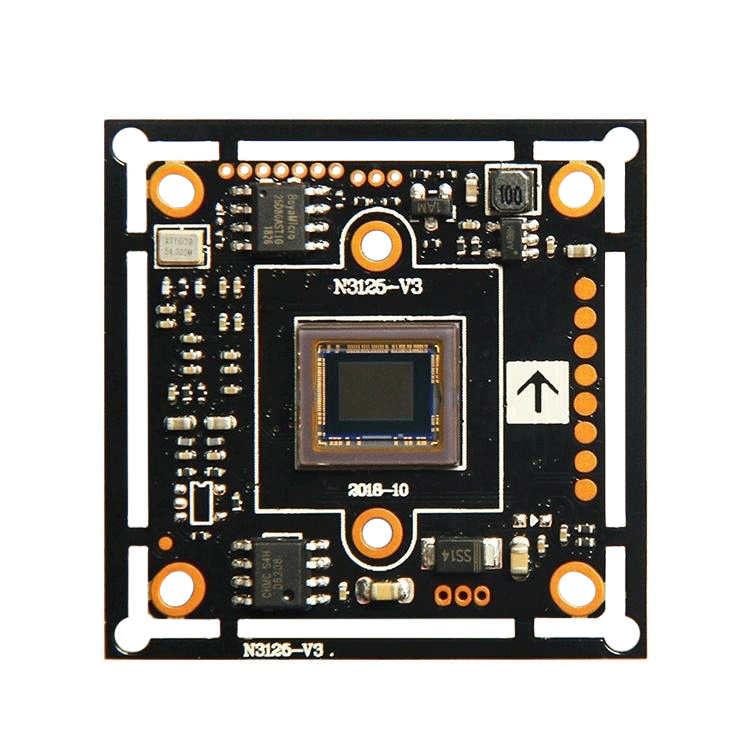

Sensor | 1/3” IMX225 |

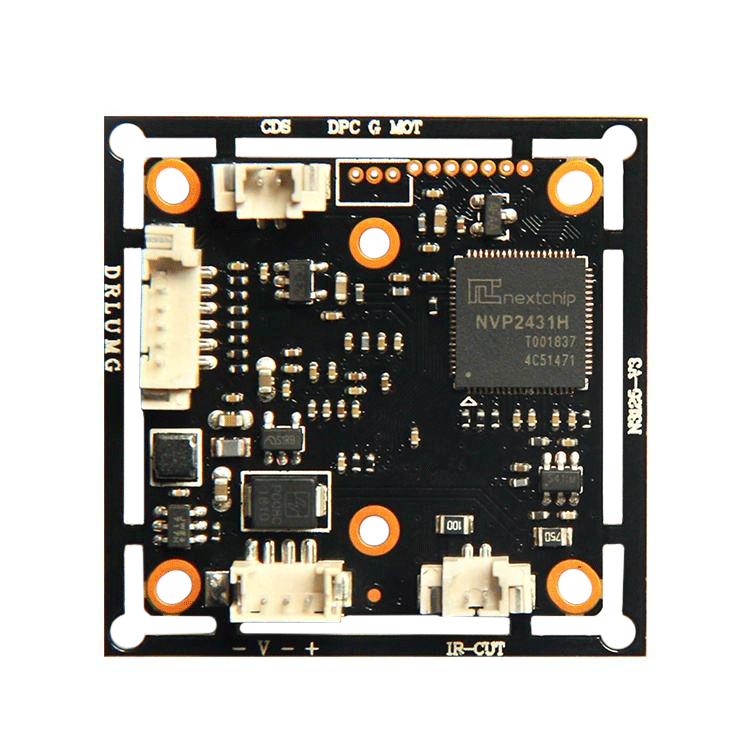

ISP | NVP2431 |
System | PAL/NTSC |
Effective Pixel | 1280 (H)x960(V) 1.3MP Ratio: 16:9 |
Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 25fps / 30fps |
Video output | AHD/CVBS |
OSD Menu | |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN/DWDR |
Backlight Mode | OFF/HLC/BLC |
W/B | ATW/ AWC-SET/Indoor/Outdoor/Manual |
DNR | 2DNR/3DNR |
Special | Mirror/Bad Point Compensation/Language |
Adjust | Sharpness/LCD/Edge Brightness Compensation/Output |
Language | English/CHN1/German/French/CHN2/Russian/Italy/Spain/Poland/Portugal/Netherlands/Turkey/Japanese |
Exit | Save& Exit / Reset/ Not Save |
Common | |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 60mA |
Size | 32*32/38*38(mm) |
