700TVL 960H CCD Sensor Analog Color Camera Module
$10.00
Availability:
In stock
Out of stock
Variations
Product Description
Features:

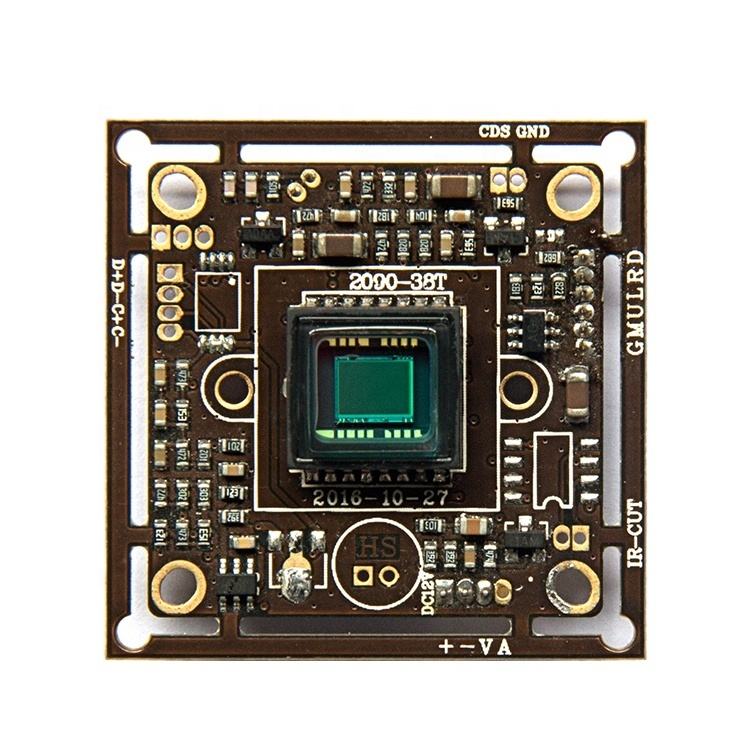

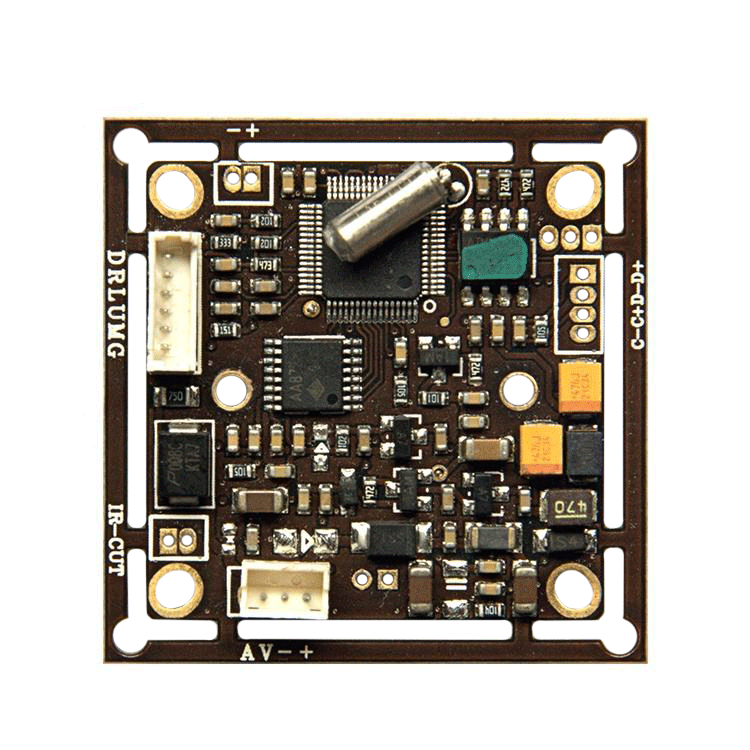

I. Specification: 1/3” color CCTV board camera
II. Model No. : 873/810+2090-38T
III. Main Feature
1. Color CCTV board camera
2. Excellent performance, clear and bright picture
3. Size(L×W×H):38×38×13mm
Specifications:
Sensor | 1/3 Sony 960H CCD Sensor | |
System | PAL 873+2090 | NTSC 810+2090 |
Total Pixel | PAL:1020(H)×596(V) 6.1 megapixel | NTSC:1020(H)×508(V) 5.2 megapixel |
Effective Pixel | PAL: 976(H)×582(V) 5.7 megapixel | NTSC: 976(H)×494(V) 4.8 megapixel |
Scanning System | 625 lines, 50f/s | 525 lines, 60f/s |
illumination | 0.01 LUX | |
Resolution | 700TVL | |
Function | DWDR:Off/On(0-63) | |
2DNR: Off/On | ||
OSD Menu:support | ||
HLC: Whole Day / only At Night | ||
exposure:Shutter/Brightness/AGC/DWDR | ||
Backlight: BLC/HLC/Off | ||
White Balance:manual/ATW/AWB/ AWC→SET | ||
Day/Night:Auto/Color/B/W/External Control | ||
Special:camera title/motion detect/privacy cover/protocol/park line/version | ||
Image Adjust:Lens Shad. /2DNR/mirror/ Font Color / Contrast / Sharpness / Display / NEG. Image | ||
Dpc:support | ||
language:CHS/Espanol/Russian/German/Portuguese/French/Japanese/CHT/English | ||
Exit:Save/Not Save/Reset | ||
Electronic Shutter | 1/50~1/100000s | 1/60~1/100000s |
S/N | >48dB | |
Video Output | 1.0V p-p/75Ω | |
Operation Temperature | -10 º C to 60 º C | |
Working Humidity | Relative humidity less than 90% | |
Power | DC12V | |
