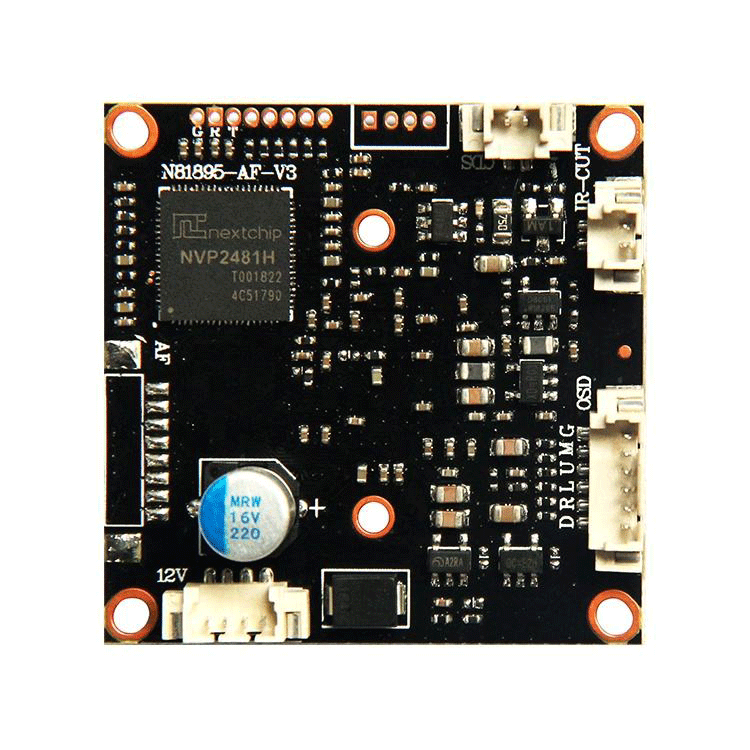

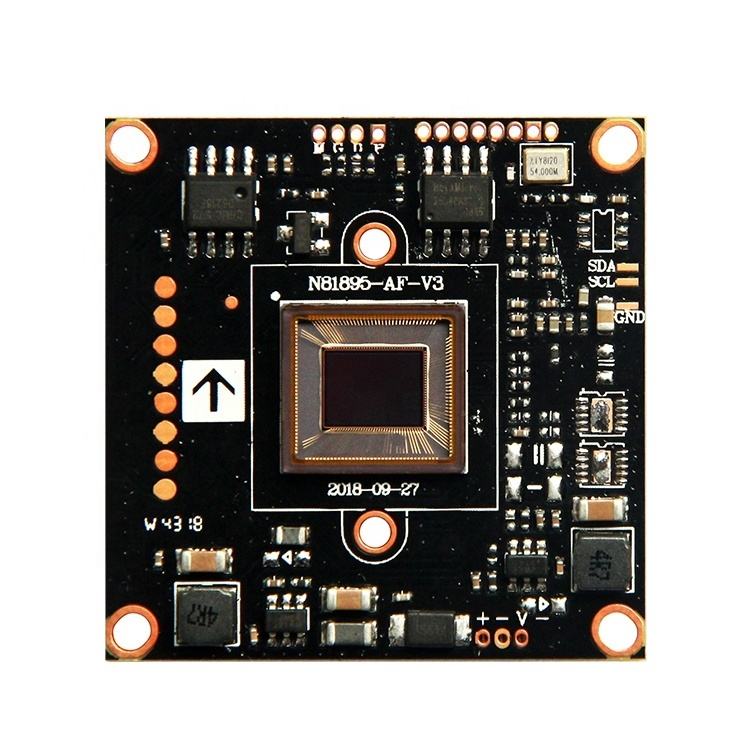

8MP 4K AHD/TVI/CVI/CVBS Single Camera Module PCB Support UTC
$16.00
Availability:
In stock
Out of stock
Variations
Product Description
What's the Features?
1. Hybird board Camera 4 in 1
2. AHD/CVI/TVI/CVBS signal shift with OSD Joystick
3. Resolution: 1/2.3" 8mp 4K AHD/TVI/CVI/CVBS all in one camera board
Model Spec | AHD N81895-AF-V1 | |
| 8MP 4K 4 IN 1 CMOS Module | |
| ||
Model No. | 1/2.3 " OV12895+NVP2481 | |
Video Format | PAL/NTSC | |
Effective Resolution | 3480(H)x2160(V) | |
Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR | |
Shutter | AUTO | |
D/N Mode | External Control(Default)/Auto/Color/B&W | |
Synchronization | Inter-sync | |
Frame rate | 8MP @PAL 12.5fps / NTSC 15fps | |
Signal | AHD/TVI/CVI/CVBS (Optional) | |
