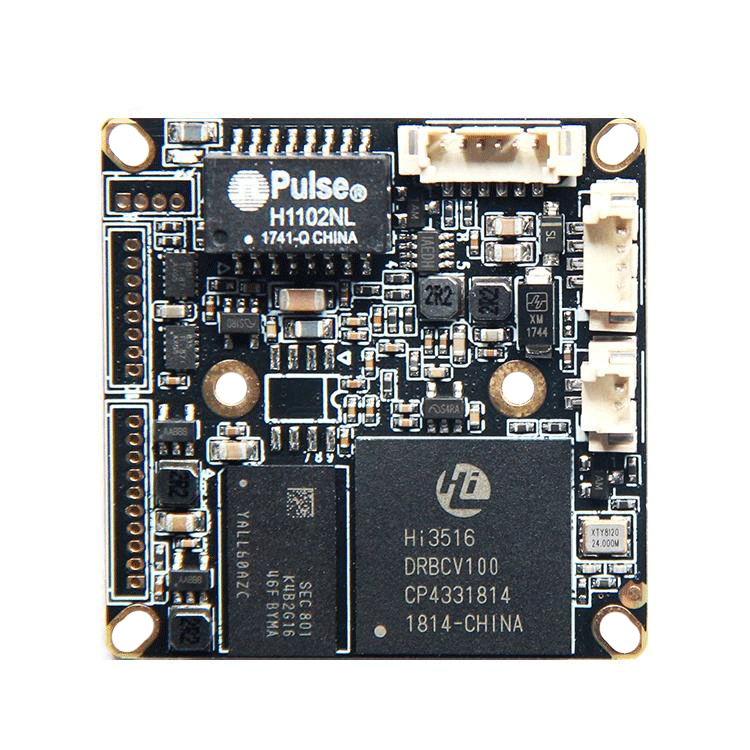

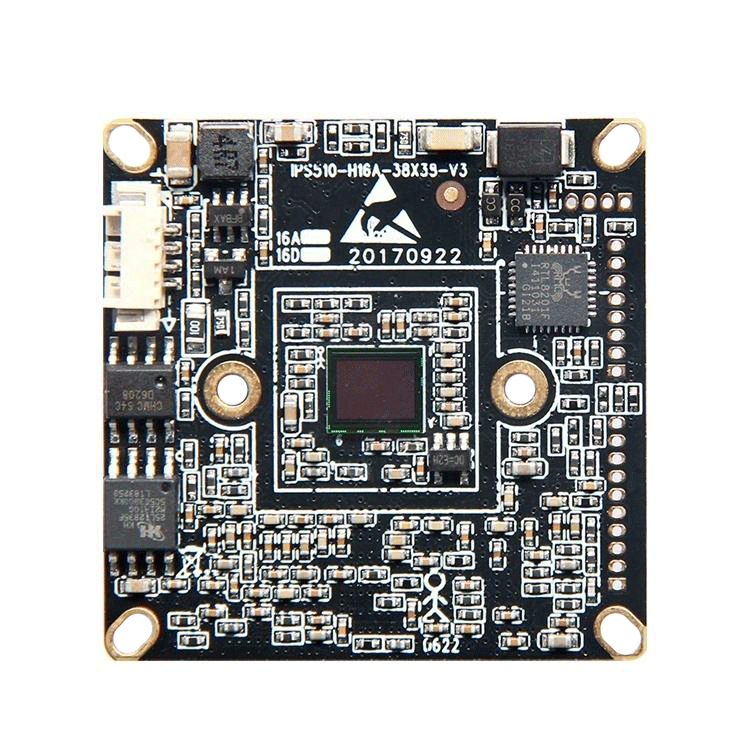

H.265 and H.264 5MP Low Lux IP CCTV Camera Board Support Auto Focus and Motorized Zoom with Audio
$24.00
Availability:
In stock
Out of stock
Variations
Product Description
>>>>1/2.7"OS05A10 Low light,CMOS sensor with Hi3516D.
>>>>Standard single board 38mm*38mm.
>>>>Support D/N (IR CUT switch), with IR illumination .
>>>>Support photosensitive resistance signal.Suitable for assemble normal waterproof camera.
>>>>IR Camera,dome camera;H.264/H265video coding.
>>>>Support the main/sub-main stream , resolution can reach to 2592*1944.
>>>>Enabled with ONVIF protocol , access to different platform management.
Model No. | IPS510-H16A-V3 |
Hardware | |
Module | HI3516D +1/2.7" OS05A10 |
Low Lux | Color 0.05Lux ,F1.2;B/W0.01Lux,F1.2; |
≥50db(AGC OFF) | |
DWDR | DWDR;>80db |
Port | ||
Audio Input | 1CH MIC Input/linear input | |
Audio Output | 1CH Input | |
IO function | Need TF extension Board,1CH Reset,1CH Alarm input,1CH Alarm output | |
ONVIF | Default ONVIF2.4 |
Browser | Support IE6.0 and above browser(insert Web Server),support 16 visitors in the same time(MAX) |
Mobile App | Support IOS,Android |
General Parameters | |
Working Temperature | -20℃ - +60℃ |
Working Humidity | 0% - 90% |
Power Supply | DC12V/POE |
Power | 1.2W |
Size | 38(L) * 38(W) *10(H)mm(excluded H of the lens) |
Weight | 0.06KG |
