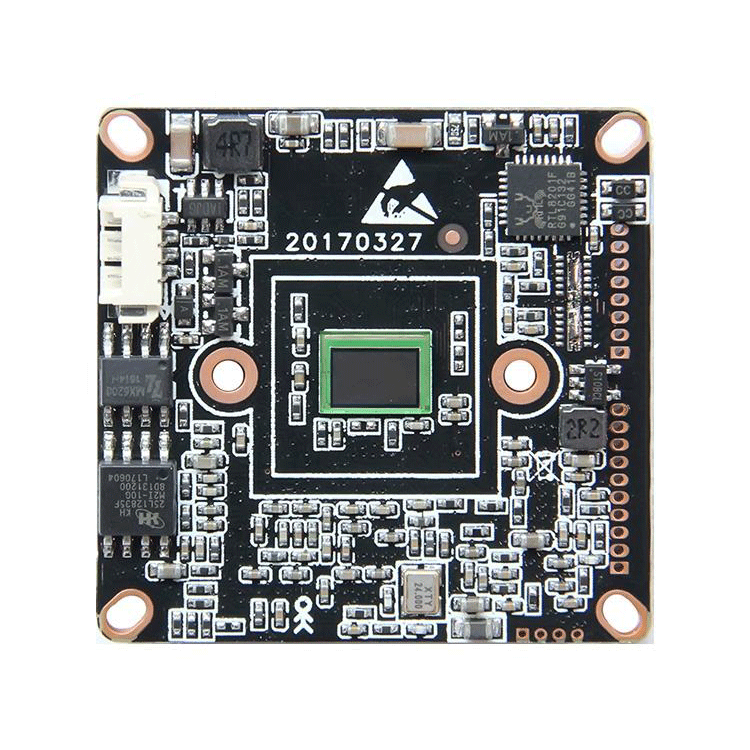

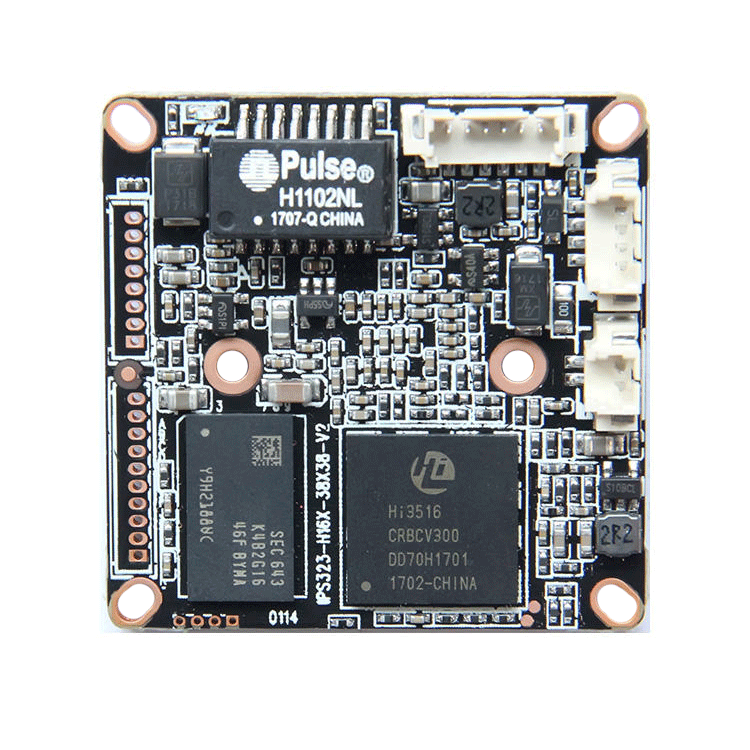

1080P 2MP H.265 IMX323 IP Camera Module with CVBS Output
$46.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model Number | IPS323-H16X-V2 (2mp) | |
Module | HI3516CV300 1/2.9” CMOS IMX323 | |
LUX | Color 0.1Lux@F1.2; B/W 0.01Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
DWDR | DWDR；＞80db | |
Audio/Intercom Input | 1CH MIC Input/linear input | |
Audio Output | 1CH Output | |
CVBS Output | N/A | |
SDCardInterface | N/A | |
IO Port | 1CH reset | |
USB Port | 1 CH USB port ，support TF extension card（MAX 128G） | |
Video Coding | MJPEG Coding | |
Mainstream | 2304*1296、1920*1080、1280*720，5-25FPS/S | |
Substream | 704*576，1-25(30)fps/s 640*480，1-25(30)fps/s | |
640*352，1-25(30)fps/s 320*240，1-25(30)fps/s | ||
Video Coding Compression | 32Kbps-16Mbps continuous adjustable，support CBR/VBR bps，CBR/VB | |
Subtitle Overlay | Support channel name、Date、Code stream information overlay,Overlay place adjustable | |
Data Record | Video,picture | |
Storage Method | Manual、auto(cycle、fixed time、alarm switch、motion detection) | |
Alarm Transfer | FTP、E-mail, browse, management software | |
Protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |
ONVIF Protocol | ONVIF 2.4 | |
Browser | Support IE6.0 and above browser(insert Web Server),support 8 visitors in the same time(MAX) | |
Mobile Client | Support iPhone、iPad、Android | |
Power | DC12V/POE | |
Power | 2W(MAX) | |
Dimension | 38(L) * 38(W) *15(H)mm( excluded the lenses) | |
IR-CUT Dimension | 20mm | |
Weight | 0.06kg |
