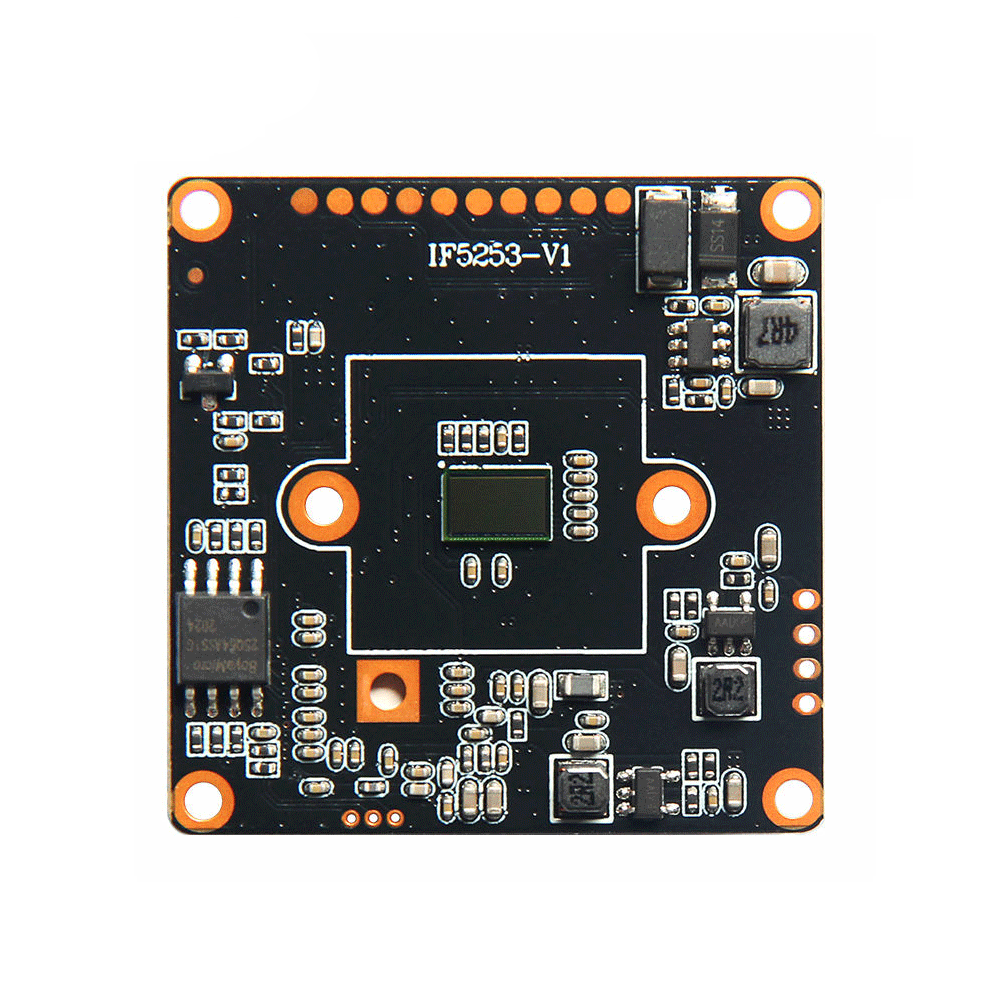

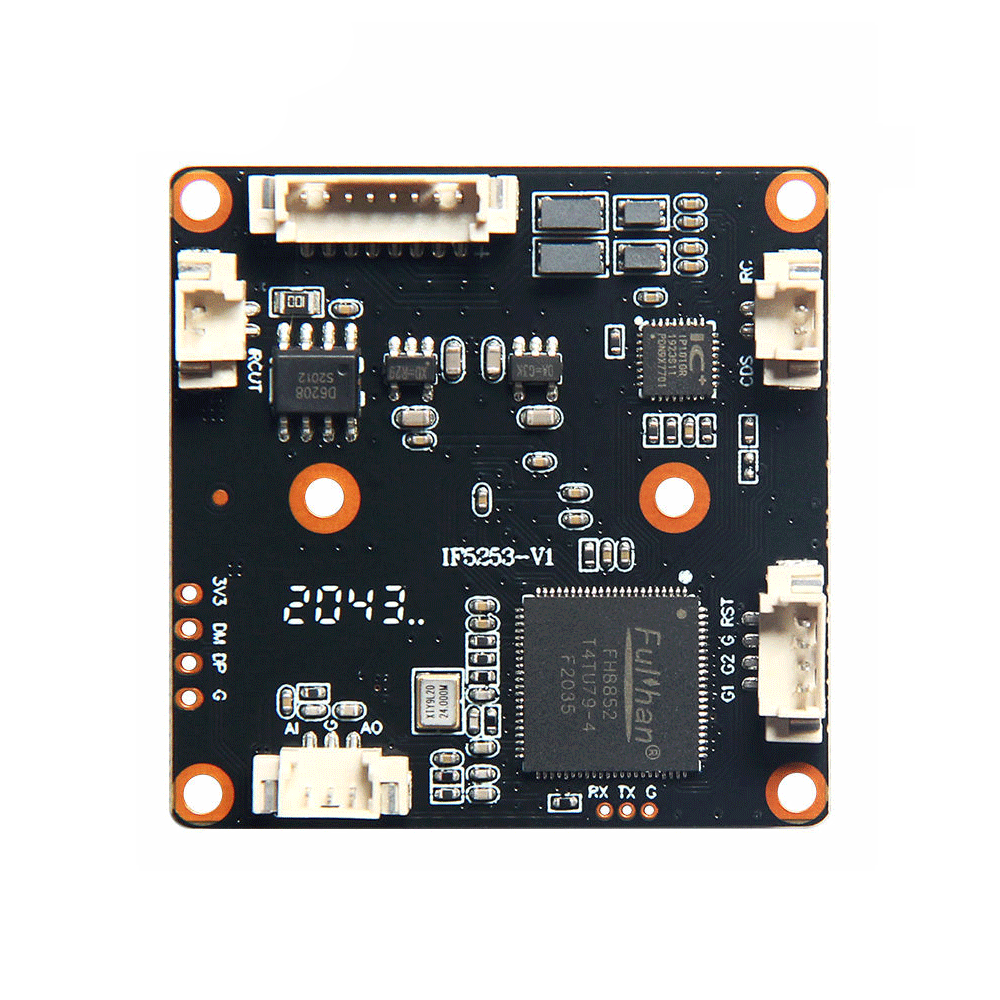

4MP IP WDR Camera Module with Low Cost
$8.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | PA1 | |
Module | FH8852+1/3" GC4053 | |
LUX | COLOR 0.05Lux@F1.2;B/W 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR；＞80db | |
Audio Input | 1CH MIC Input | |
Audio Output | · 1CH output(Extensible built-in power amplifier) | |
IO port | 1CH RESET | |
SD card | NO | |
WIFI | NO | |
Coding Format | H.265&H.264 | |
Mainstream | 2560*1440，5-25FPS/S | |
2304*1296、1920*1080、1280*720，5-25FPS/S | ||
Substream | 704*576、640*480、640*360、352*288 5-25FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | · Support channel name、Date、1 group of characters superposition adjustable | |
Data Record | Video,picture | |
Storage Method | Recycle and alarm video record | |
Alarm Transfer | Browser、management software、IO output | |
Protocol | ONVIF2.6、All Net Connect | |
Client Browser | Support IE6.0 and above browser、Client Browser | |
Mobile Client | Support IOS、Android | |
Temperature | -20℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /POE | |
Power | 1.5W | |
Size | 38* 38*10mm (Without Lens) | |
Weight | 0.06kg |
