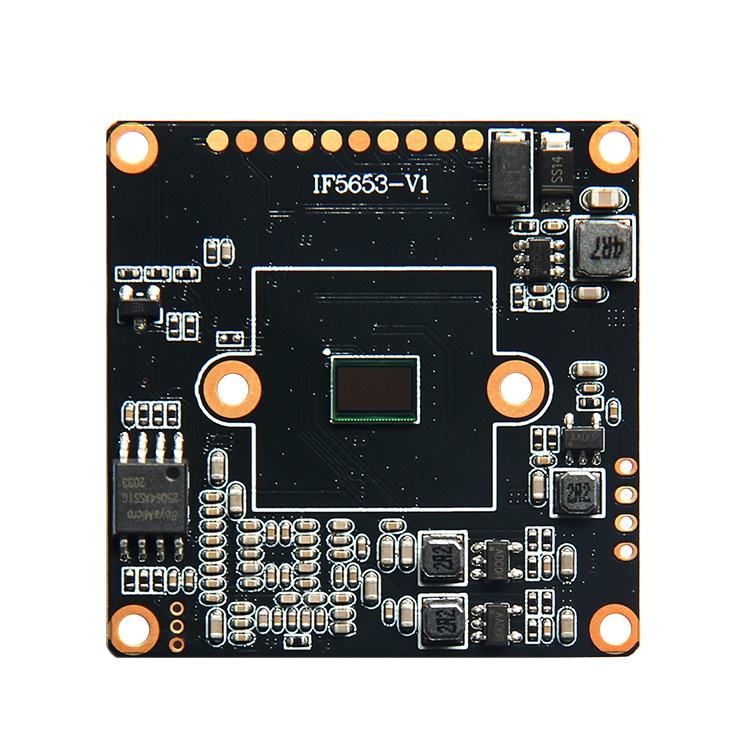

H.265 and H.264 8MP 4K IP CCTV Camera Board Support with Audio +Warmlight +Whitelight
$12.50
Availability:
In stock
Out of stock
Variations
Product Description
Specification
Model No. | PB4 | |

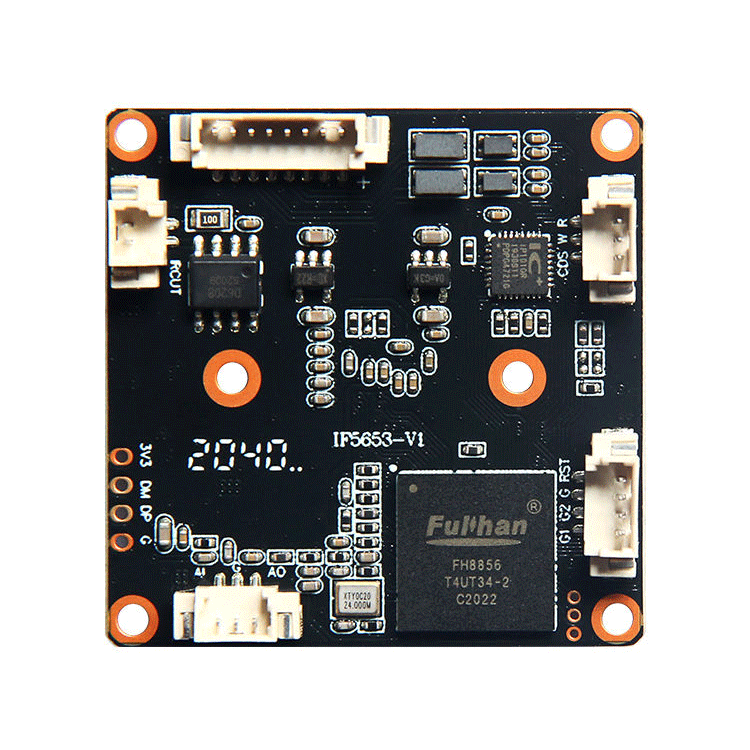

Module | FH8856V200+1/3" GC8053 | |
LUX | COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; ＞80db | |
Audio Input | 1CH MIC Input | |
Audio Output | 1CH Output, Speaker Optional | |
IO port | 1CH RESET | |
SD card | Optional | |
WIFI | NO | |
Coding Format | H.265/H.264 | |
Main stream | 3840*2160 , 1-15FPS/S; 2592*1944 , 1-20FPS/S | |
2560*1440、2304*1296、1920*1080、1280*720, 1-30 FPS/S | ||
Substream | 704*576、640*480、640*360、352*288, 1-30FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay | Support Channel Name、Date & Time | |
Data Record | Video,picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | NETCOM / ONVIF 2.6 | |
Mobile | Support IOS, Android | |
Browser | Support IE6.0 and above browser(insert Web Server) support 10 visitors in the same time(MAX) | |
Mobile Client | Support iPhone、iPad、Android | |
Temperature | -20℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V /POE | |
power | 1.5W | |
size | 38* 38*10mm (without lens) |
