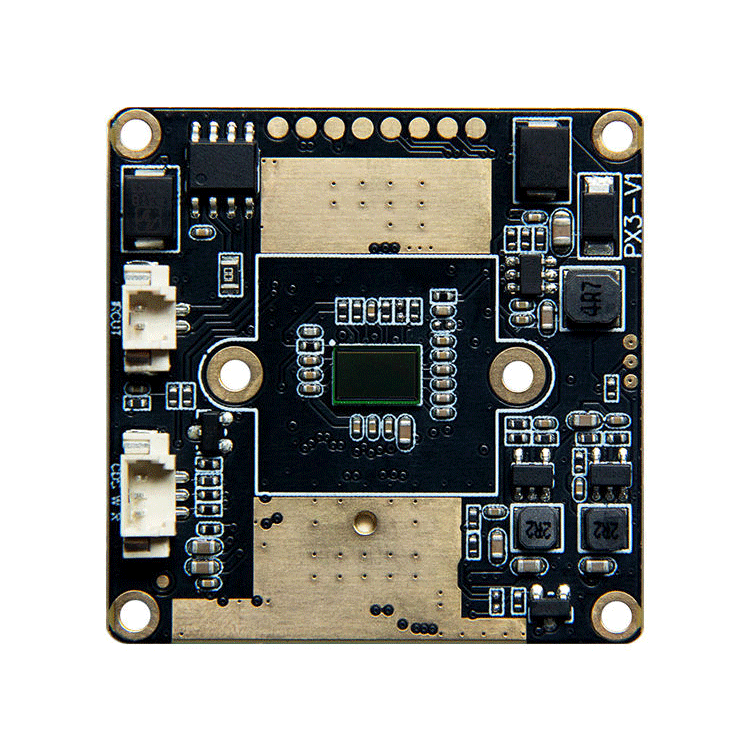

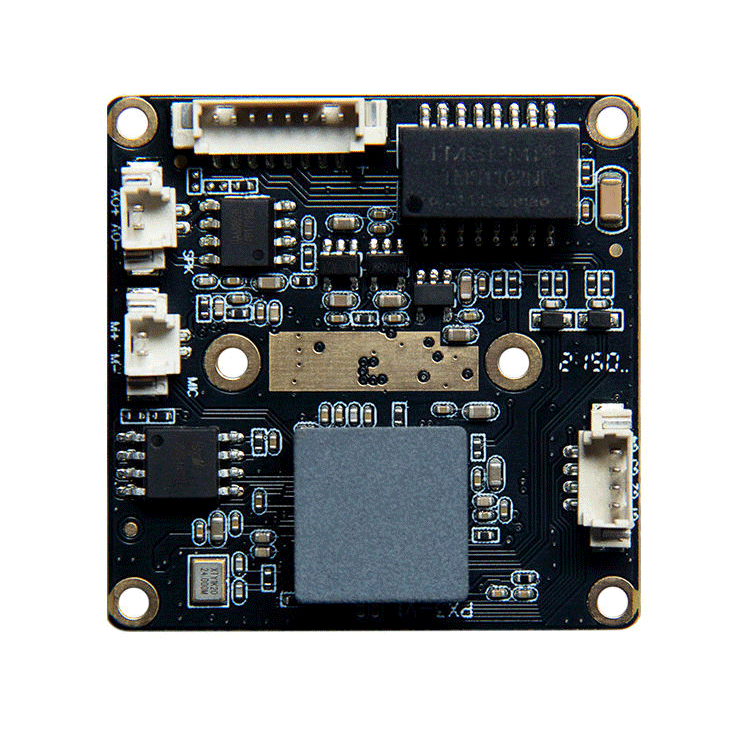

4MP IP H.265 Black Light Camera Board with Excellent Night Vision
$9.00
Availability:
In stock
Out of stock
Variations
Product Description
Model No. | H4H | ||
Hardware | |||
Module | Fullhan 2K DSP+1/2.9"4MP CMOS | ||
LUX | COLOR 0.01Lux F1.2; B/W 0.001Lux F1.2; | ||
S/N | ≥50db(AGC OFF) | ||
WDR | DWDR; >80db | ||
Port | |||
Audio Input | 1CH MIC Input | ||
Audio Output | 1CH Output, Speaker Optional | ||
Light Type | CDS IR LED, Warm LED, White LED (Support PWM) | ||
IO port | IR CUT, 1CH RESET, Alarm In, Alarm Out | ||
Others | Extra Motorized Zoom Auto Focus Lens Optional | ||
Video Coding | |||
Coding Format | H.265/H.264 | ||
Resolution | Main Steam | 2560*1440 , 1-30FPS/S | |
|
| 2304*1296,1920*1080,1280*720, 1-30FPS/S | |
| Sub steam | 704*576,800*448,640*480,640*360,352*288,1-30FPS/S | |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | ||
Subtitle Overlay
| Support Channel Name, Date & Time, Resolution & 4 lines characters adding | ||
Data Transmission &Storage | |||
Data Record | Video,picture | ||
Storage Method | Cycling Recording, Alarm Recording | ||
Alarm Transfer | IO output, browser, management software | ||
Protocol | ONVIF | ||
Mobile | Support IOS, Android | ||
Browser | Support IE6.0 and above browser(insert Web Server) | ||
Mobile Client | Support iPhone,iPad,Android | ||
Temperature | -30℃ - +60℃ | ||
Humidity | 0% - 90% | ||
Power | DC12V /110mA | ||
power | 1.3W | ||
size | 38* 38*10mm (without lens) | ||
Weight | 11g | ||
