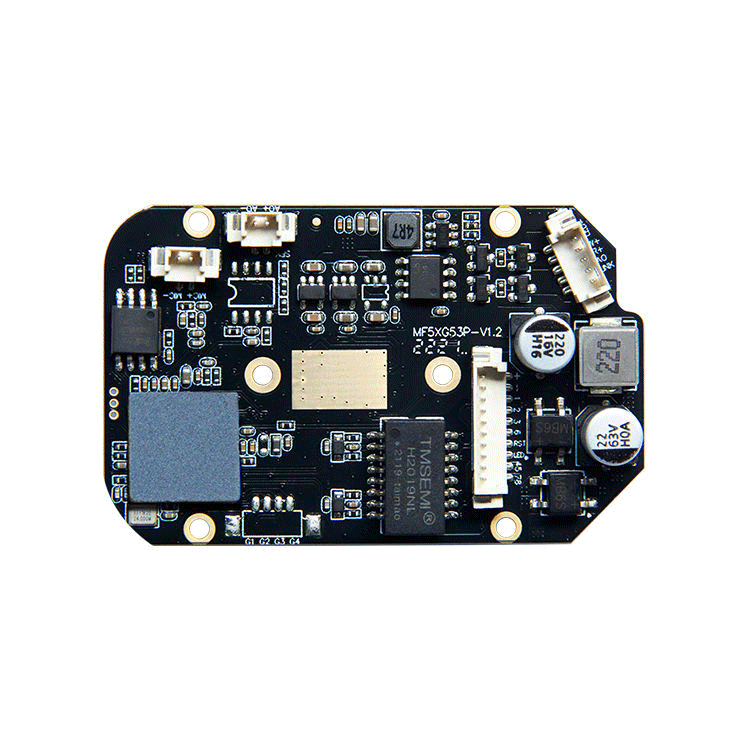

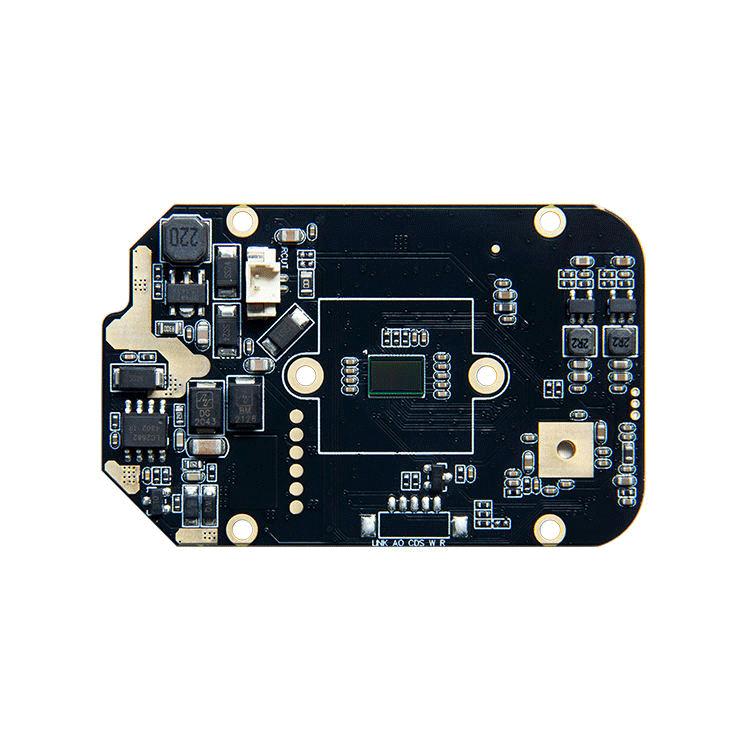

4MP IP H.265 Build-in-POE Camera Board Support Warm Light +Dual Light+IR
$9.50
Availability:
In stock
Out of stock
Variations
Product Description
Model No. | H4P | |
Hardware | ||
Module | Fullhan 2K DSP+1/2.9" 4MP CMOS | |
LUX | COLOR 0.01Lux F1.2; B/W 0.001Lux F1.2; | |
S/N | ≥50db(AGC OFF) | |
WDR | DWDR; >80db | |
Port | ||
Audio Input | 1CH MIC Input | |
Audio Output | 1CH MIC output, Speaker Optional | |
LED Board Function | LED Board Driving Circuit, Dual Light | |
IO port | 1CH RESET, IR CUT, Alarm Input/Output | |
Others | Build-in POE, Support Standard POE Protocol | |
Video Coding | ||
Coding Format | H.265/H.264 | |
Resolution | Main Steam | 2560*1440,1-30FPS/S |
|
| 2304*1296,1920*1080,1280*720,1-30 FPS/S |
| Sub steam | 704*576,800*448,640*480,640*360,352*288,1-30FPS/S |
Video Coding Compression | 128Kbps-8192bps continuous adjustable | |
Subtitle Overlay
| Support Channel Name,Date & Time,Frame,Resolution,4 lines of character overlay | |
Data Transmission & Storage | ||
Data Record | Video, picture | |
Storage Method | Cycling Recording, Alarm Recording | |
Alarm Transfer | IO output, browser, management software | |
Protocol | NETCOM / ONVIF 2.6 | |
Mobile | Support IOS, Android | |
Browser | Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX) | |
Mobile Client | Support iPhone,iPad,Android | |
Temperature | -30℃ - +60℃ | |
Humidity | 0% - 90% | |
Power | DC12V-110mA /Built-in POE | |
power | 1.3W | |
size | 60* 38*10mm (without lens) | |
