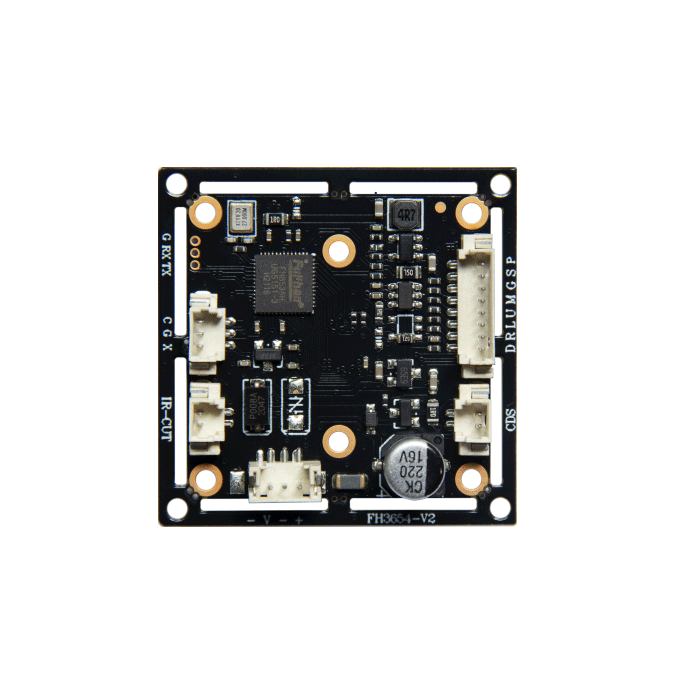

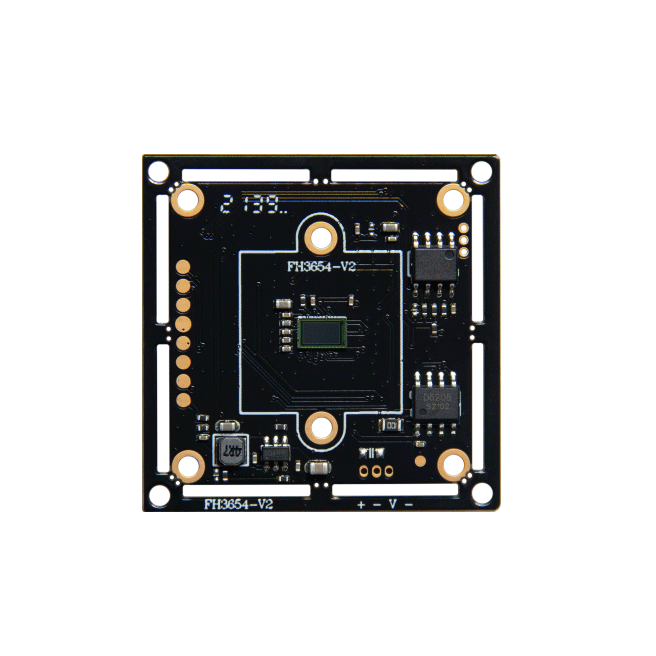

1080P Warm Light AHD cctv camera board 2MP camera module
$3.00
Availability:
In stock
Out of stock
Variations
Product Description
Data Sheet:
l Support AHD/TVI/CVI ,excellent performance clear picture
l Support IR-CUT,CDS external control ,D/N
l Support OSD/UTC
l Support DWDR
l Adaptive Digital Noise Reduction,3D-DNR,2D-DNR
l 6KV Lighting protection,with ECAP 220u
l Support DC 6-15V power
l 32x32/38x38(mm)
Model Spec. | FH3654-V2 |
| 2MP 4 IN 1 HD Camera Module |
Detail Specifications | |
Sensor | 1/4"GC2054 |
ISP | FH8536H |
System | PAL/NTSC |
Effective Pixel | 1920(H)x1080(V) |
Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Synchronously | Internal |
FPS | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS |
OSD Menu | |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N | EXT(Default)/AUTO/COLOR/B/W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR |
Language | ENG/CHN1/ESP/FRA/CHN2/ RUS/ITA /POL/POR /KRO |
Reset |
|
Common | |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 65mA |
Size | 32*32/38*38(mm) |
