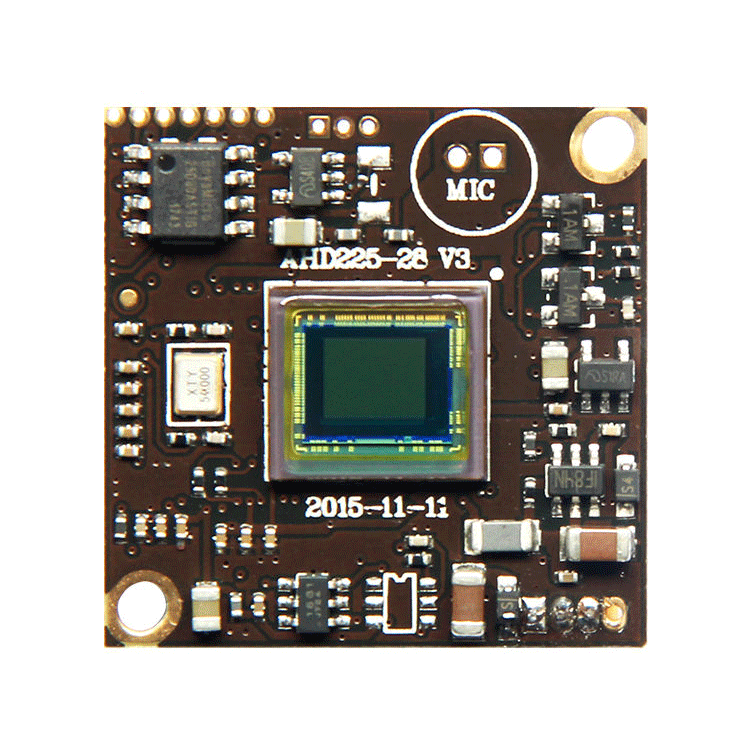

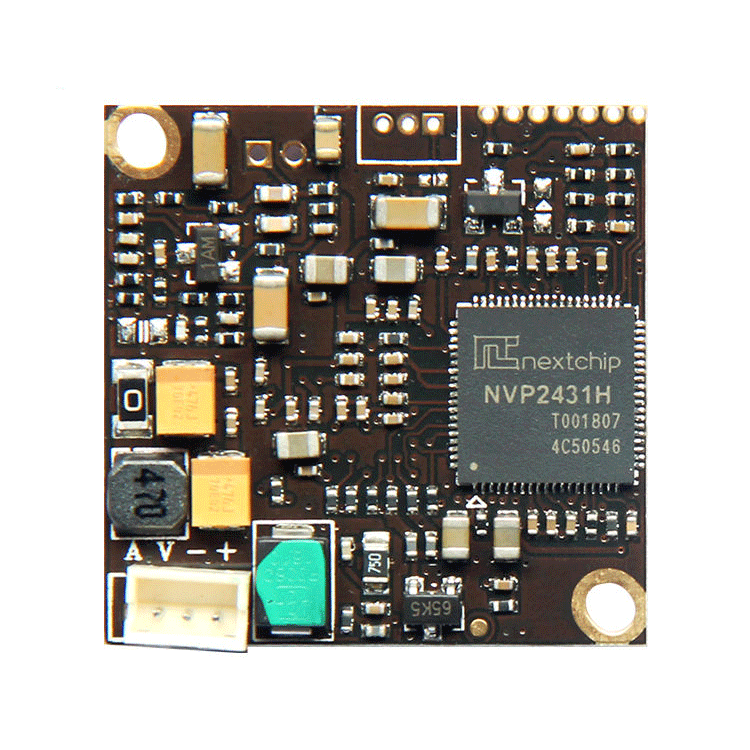

960P 1.3MP Starlight Color Camera with Audio Function Board in 28x28mm Mini Size AHD Module
$9.20
Availability:
In stock
Out of stock
Variations
Product Description
Features:
I. 1/3”AHD color CCTV board camera
II. Model No.:AHD225-28 V2
III. Main Feature:
1. Color CCTV board camera
2. Excellent performance, clear and bright picture
3. Size (L×W×H):28×28×9mm
Specification:
Sensor | 1/3 SONY IMX225 CMOS(NVP2431H+IMX225) | |
System | PAL | NTSC |
Effective Pixel | PAL:1280(H)×960(V) | NTSC:1280(H)×960(V) |
Illumination | 0.0001 LUX / F1.2 | |
Resolution | 1200TVL | |
Scanning Frequency | 50Hz 60Hz | |
Gamma | 0.45 | |
Electronic Shutter | 1/50~1/100000s | 1/60~1/100000s |
S/N | >46dB | |
Video Output | 1.0V p-p | |
Operation Temperature | -20 º C to 50 º C | |
Working Humidity | Relative humidity less than 95% | |
Power | DC12V (±10%) | |
