Mini Size 2MP 1080P AHD Starlight Color Camera support Audio Function
$8.30
Availability:
In stock
Out of stock
Variations
Product Description
Features:
Use Sony IMX323 2mp CMOS,captured moving images
AHD Coaxial high-definition output, with excellent performance, clear and bright picture
Lux,0.1Lux@(F1.2,AGC ON),0LUX with IR
Support D/N switch
Support DWDR , Sense-up
Microphone amplifier circuit, optional with Audio
Adaptive Digital Noise Reduction, 2D-DNR,3D-DNR
Support UTC

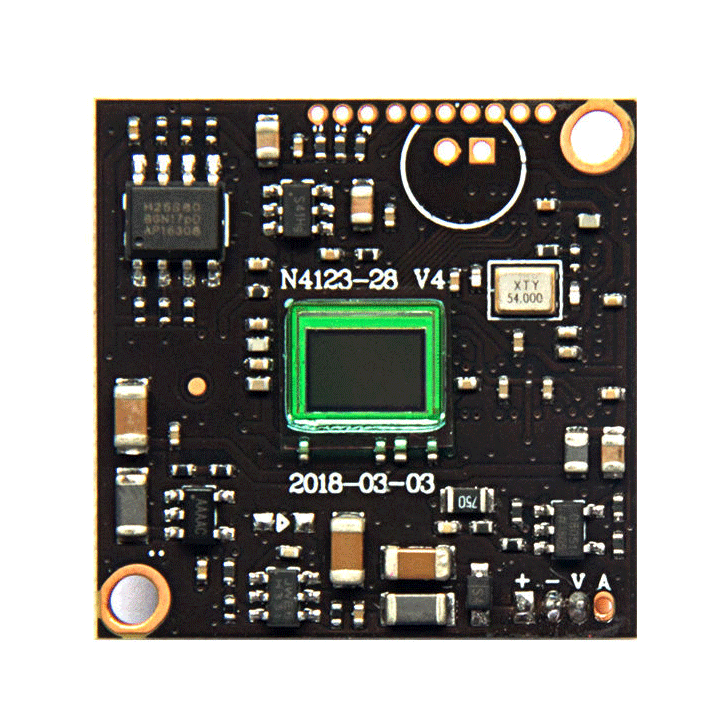

Model Spec | N4123-28 V4HD291-AF | |
200W AHD High Definition AV Camera Module | ||
Detail Specifications | ||

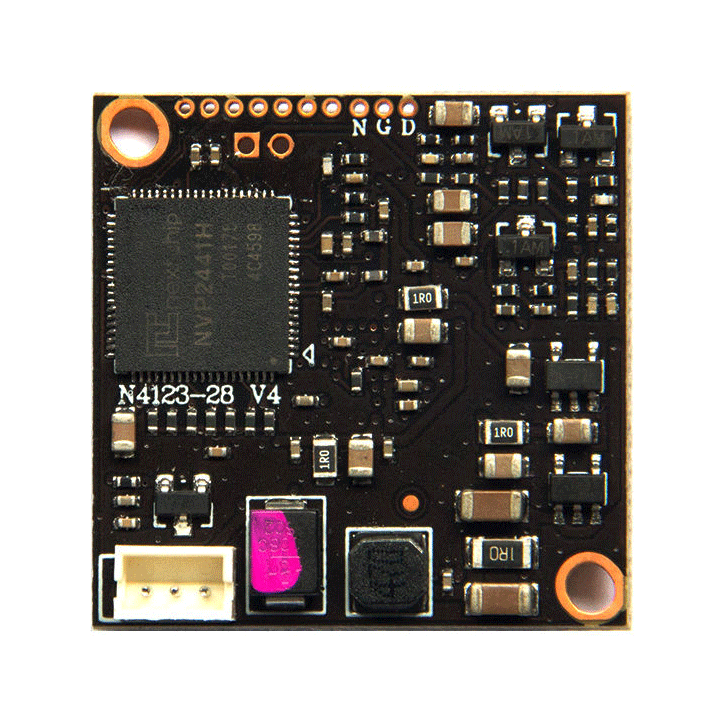

Sensor/DSP | 1/2.9" IMX323 +NVP2441 | |
Format | PAL/NTSC | |
Effective pixels | 1920(H)x1080(V) 200W 16:9 Ratio | |
Illumination | 0.1Lux@(F1.2,AGC ON),0LUX with IR | |
Shutter | AUTO | |
D/N | Color(Default)/EXT /AUTO/B&L | |
Synchronously | Internal | |
FPS | 25fps / 30fps | |
Video output | AHD | |
OSD Menu | ||
Exposure | E-shutter/AGC /Brightness/DWDR/FOG | |
BW | OFF/BLC/HLC | |
W/B | AUTO W/B/AWC-SET/ INFRARED /OUTDOOR/MANUAL | |
D/N | EXT/AUTO/COLOR/B&L | |
DNR | 2D DNR/3D DNR | |
Video Setting | Mirror/ Compensation / Language | |
Adjust | Sharpness/Screen Display /Compensation/ Output | |
EXIT | SAVE/RESET/NOT SAVE | |
Language | CHN1/CHN2/GER/FRA/ITA/SPA/POL RUS/POR/NED/TUR/ JPN/ENG | |
Common | ||
Operation Temperature | -20℃ to 60℃ | |
Operation humidity | Relative humidity less than 90 % | |
Power | DC12V(±20%) - 70MA | |
Dimension | 28*28(mm) | |
