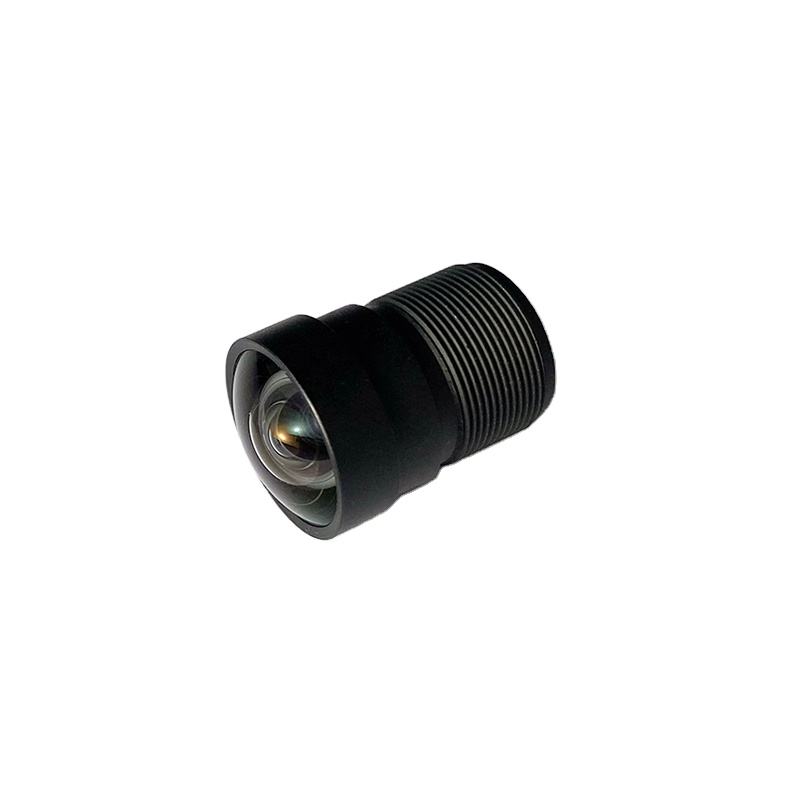

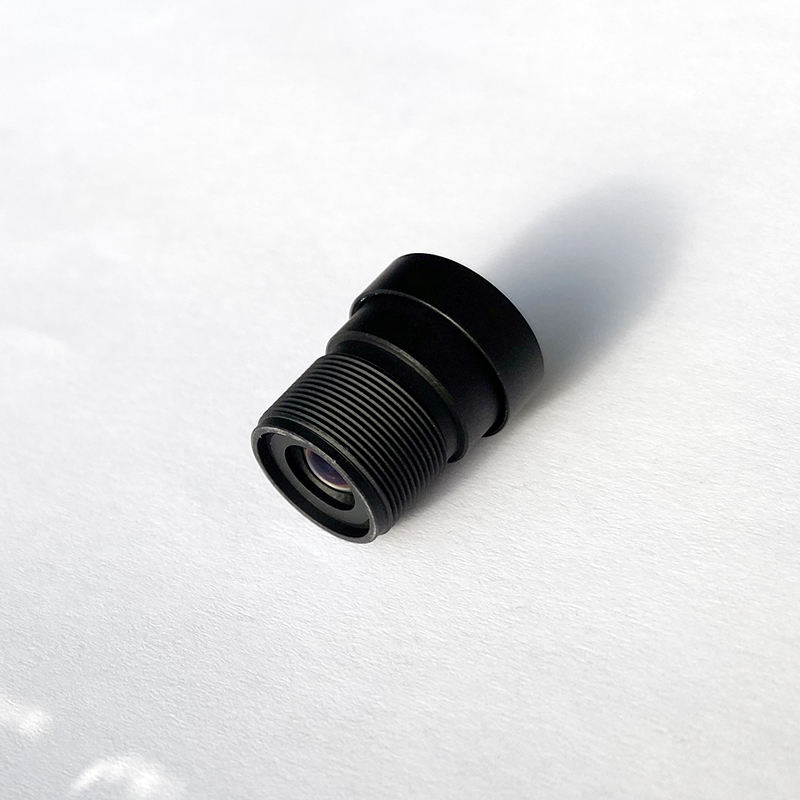

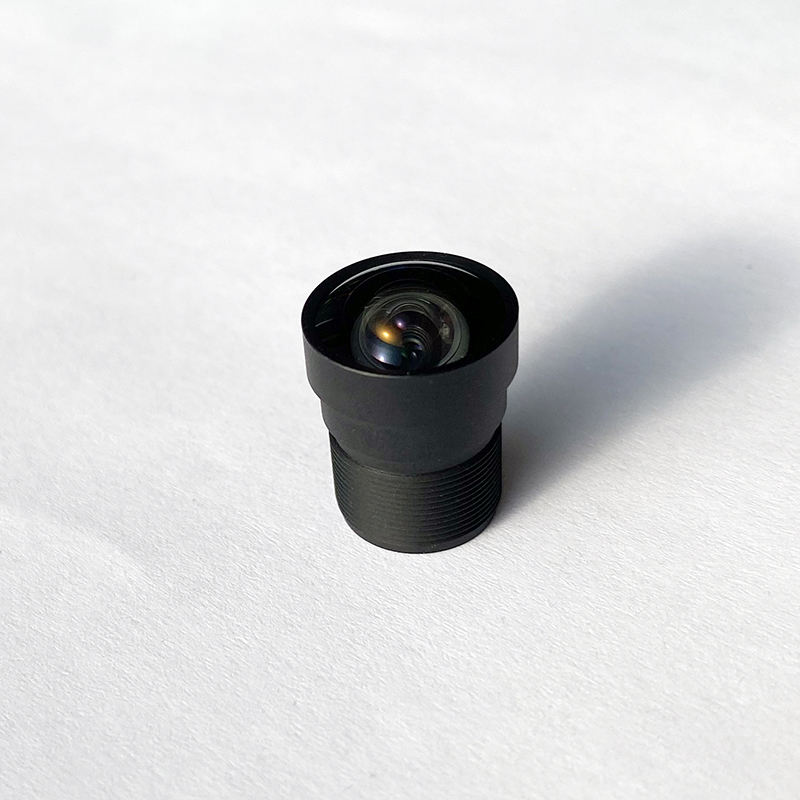

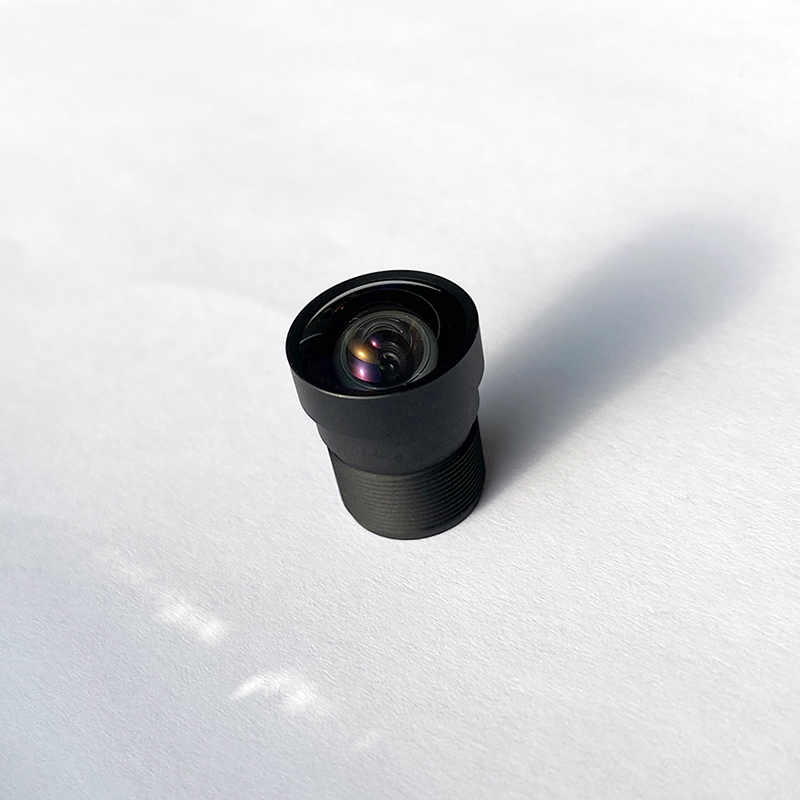

1/2.3" F2.6 12MP 3..25mm DFOV 101 Degree HFOV 87.6 Degree Wide Angle M12 S Mount Fisheye CCTV Board Lens
$5.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Aperture:F2.6
Focal Length: 3.25mm
Field of view: 101/87.6/70.9°
Field of view: 101/87.6/70.9°
Resolution:12MP
Total track length: 22.5mm
Lens composition:4G2P
Image format:1/2.3"(φ8.3)IMX377
Mount: M12*0.5P
Diameter:φ14
Total track length: 22.5mm
Lens composition:4G2P
Image format:1/2.3"(φ8.3)IMX377
Mount: M12*0.5P
Diameter:φ14

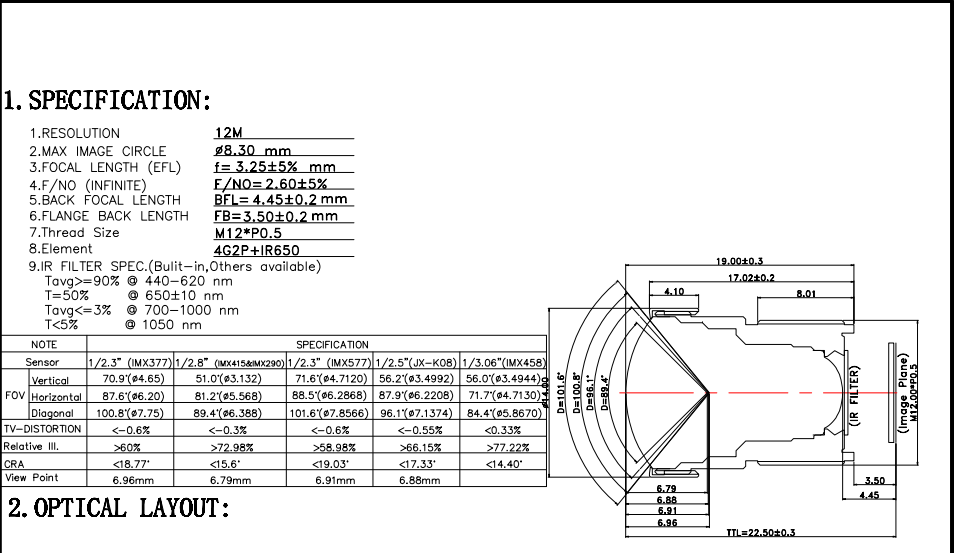

Specification
| EFL(mm) | F/NO | Sensor Size | TTL(mm) | HFOV |
| 3.25 | 2.6 | 1/2.3"(φ8.3)IMX377 | 22.5 | 87.6 |
Applications
