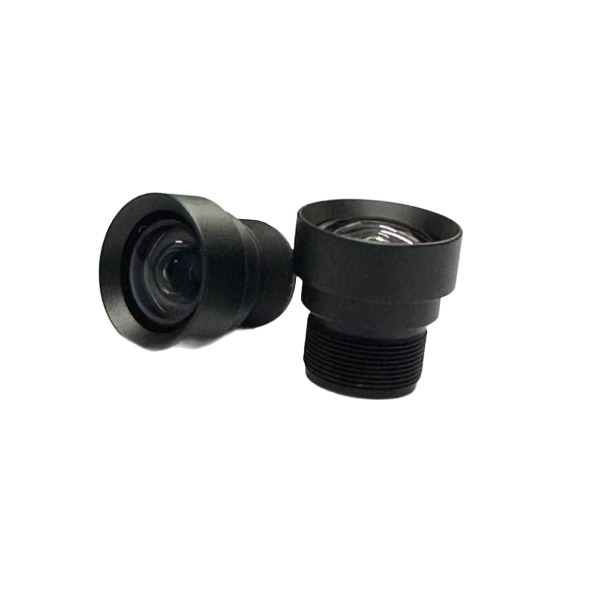

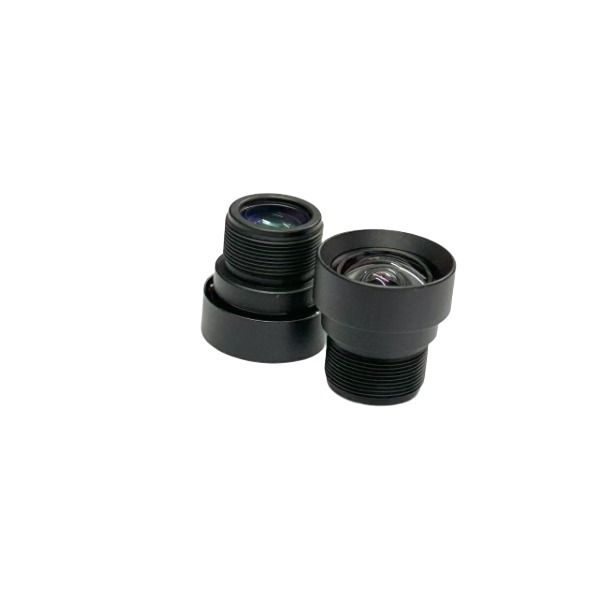

1/1.8" Sensor 23.14 mm F2.8 Low Distortion Big Aperture M12 Lens 8mp Lens Security Camera
$5.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Aperture:F2.8
Focal Length: 6.19mm
Field of view: 72/64/39°
Field of view: 72/64/39°
Resolution:8MP

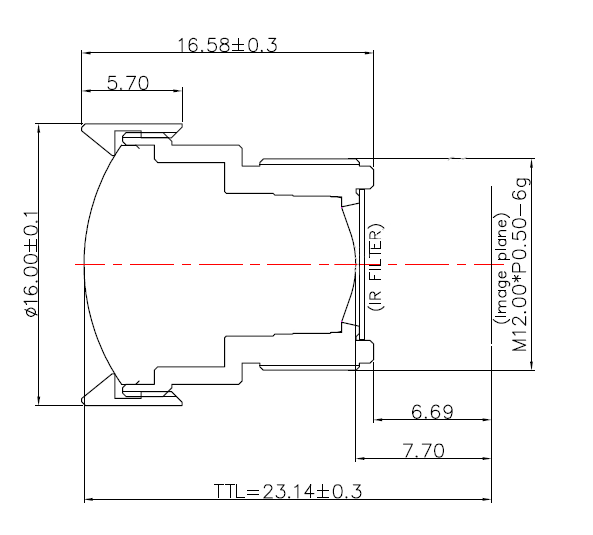

Total track length: 23.14mm
Lens composition:2G4P
Image format: 1/1.8"(∮9.0)
Mount: M12*0.5P
Diameter:φ16
Total track length: 23.14mm
Lens composition:2G4P
Image format: 1/1.8"(∮9.0)
Mount: M12*0.5P
Diameter:φ16
Specification
| EFL(mm) | F/NO | Sensor Size | TTL(mm) | HFOV |
| 6.19 | 2.8 | 1/1.8"(∮9.0) | 23.14 | 64 |
Applications
1. VGA
2. image size: 1/8"
3. Fixed iris
4. EFL:6.19 mm
2. image size: 1/8"
3. Fixed iris
4. EFL:6.19 mm
5.F/NO:2.8
