Low F Number HFOV 110 Degree Low Distortion M12 Lens 3.05mm for OS08A20 Sensor
$10.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description

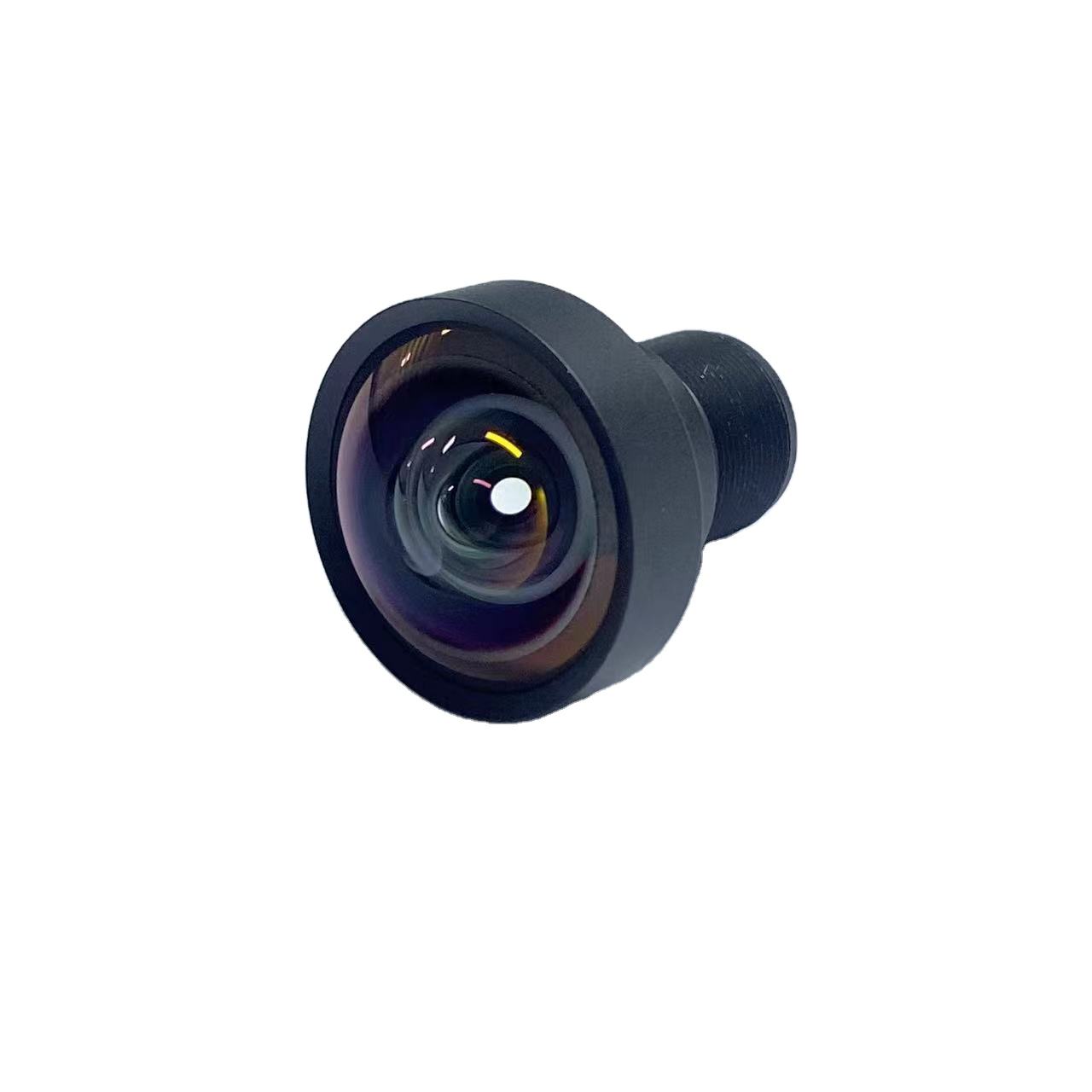

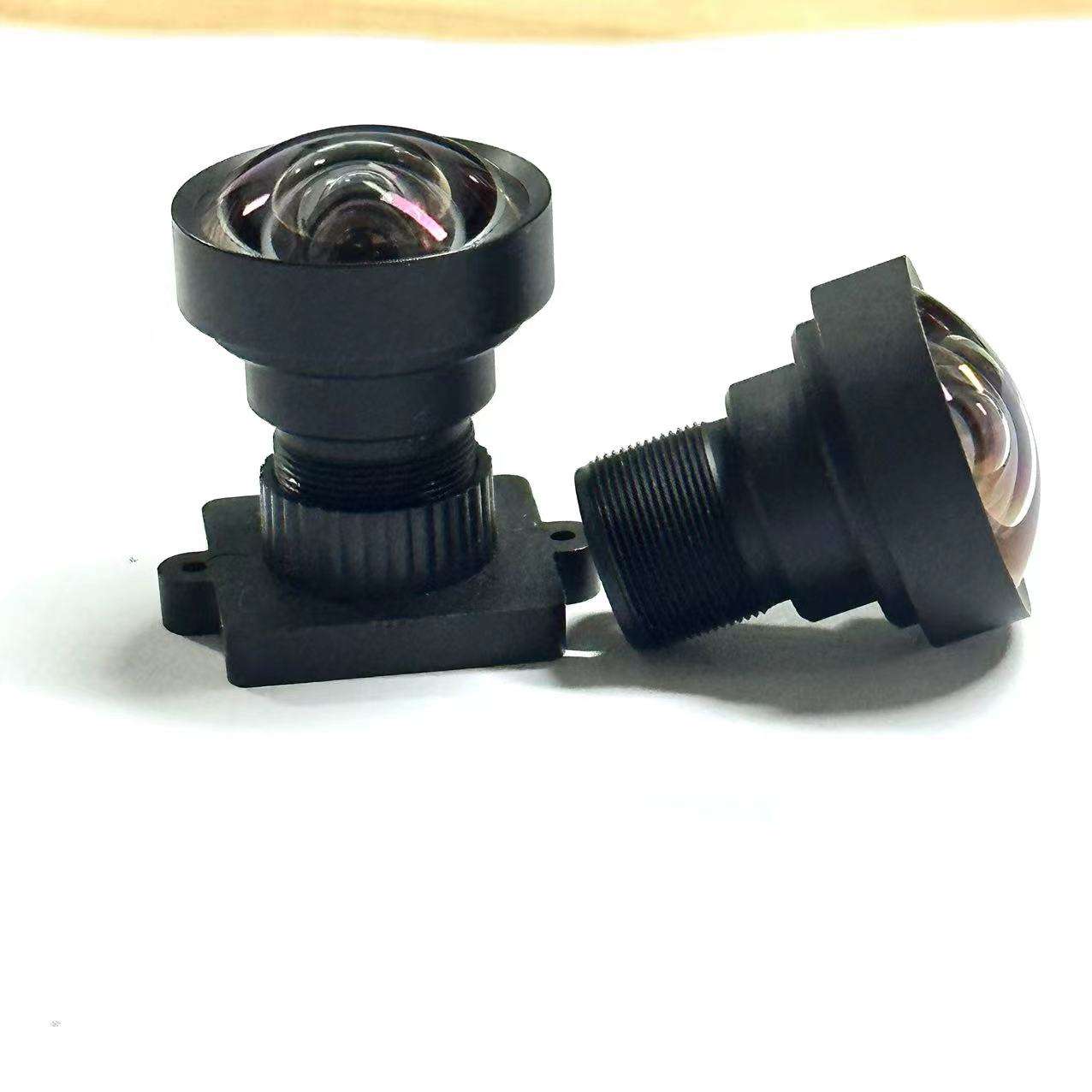

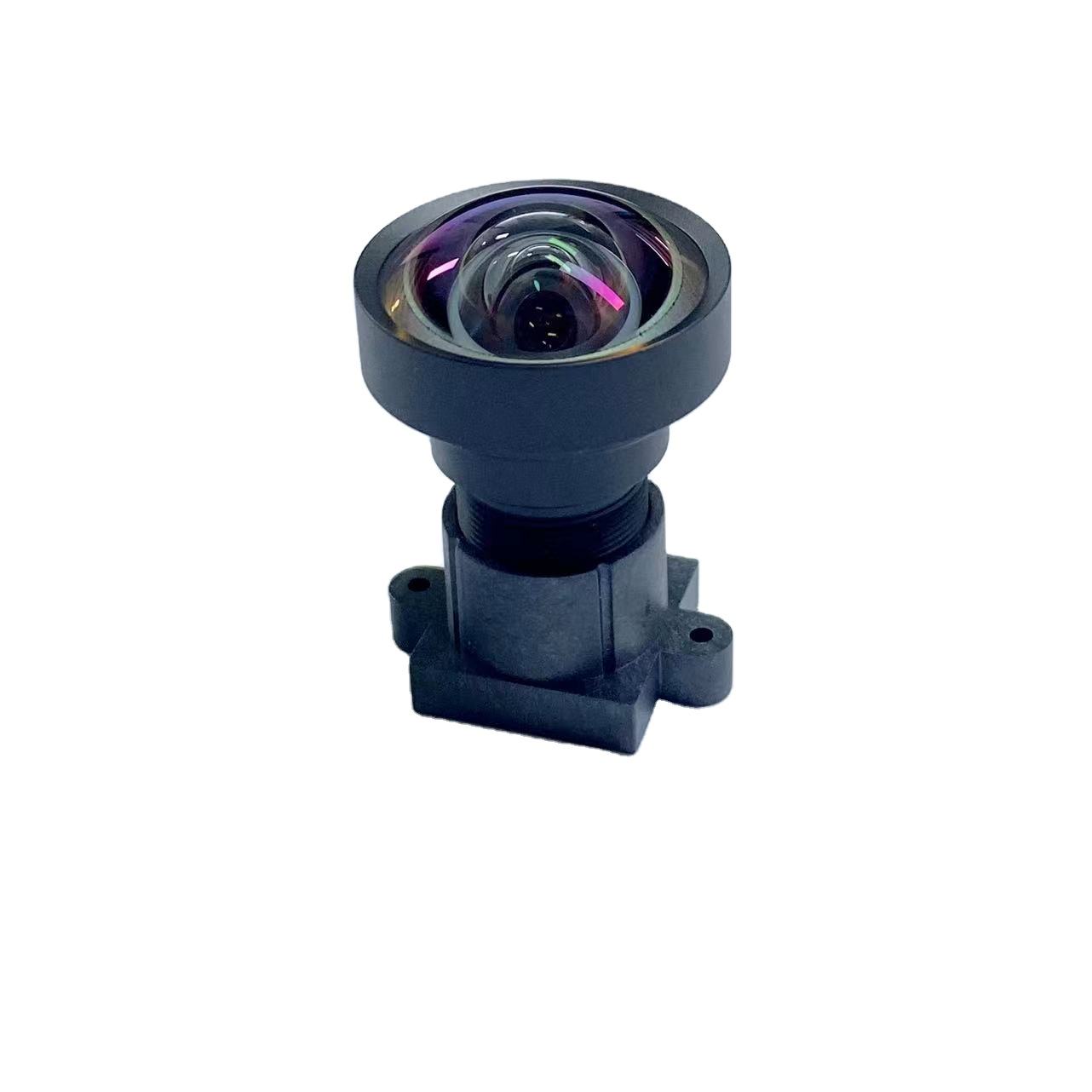

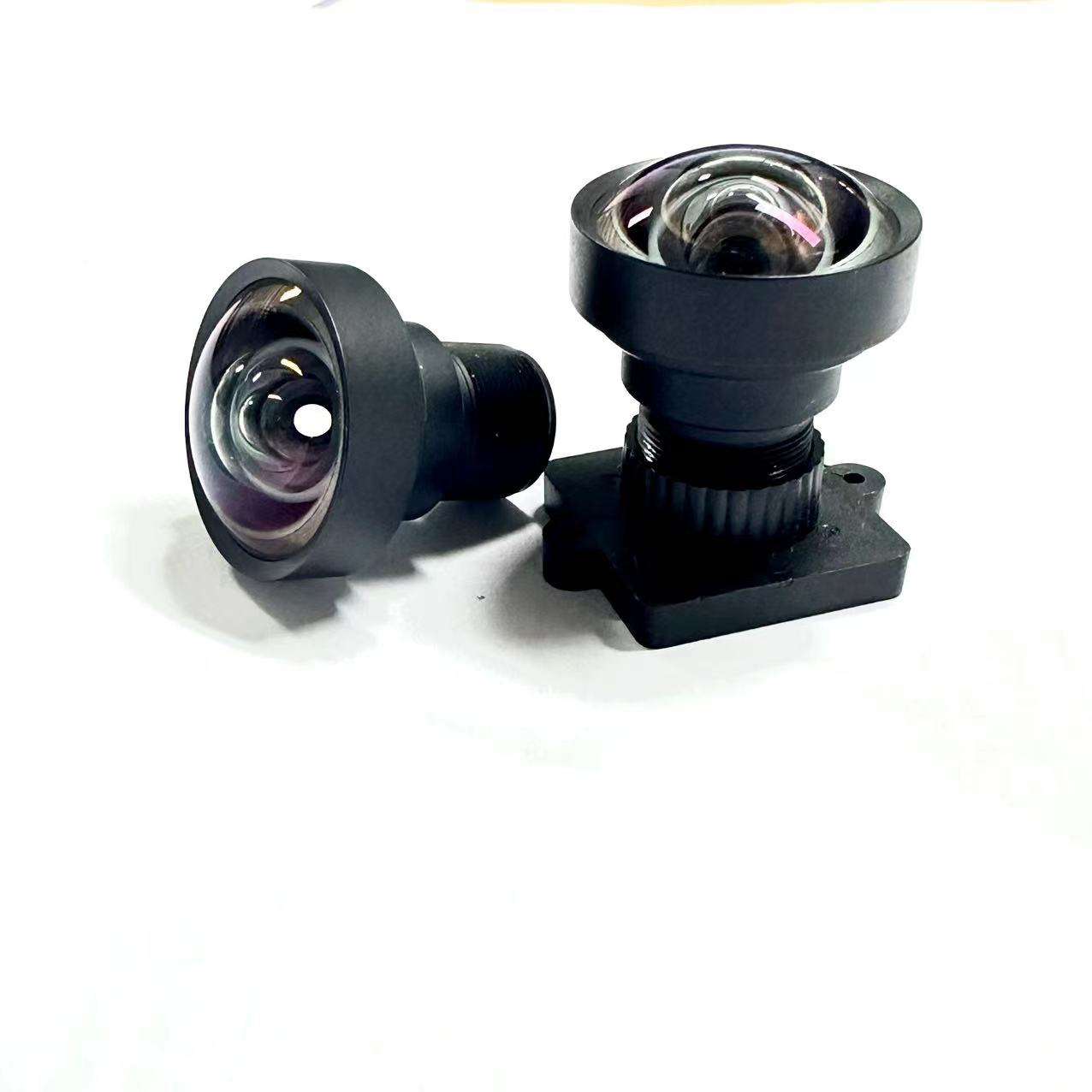

3.05mm M12 Mount Lens, engineered for exceptional performance in a compact design. With a wide 110-degree horizontal field of view (HFOV), this lens captures expansive scenes with remarkable clarity. The lens features ultra-low distortion of just -5%, ensuring accurate and true-to-life images. Its durable metal exterior provides both protection and a sleek aesthetic appeal. Designed for versatility, the lens offers good thermal stability, making it suitable for various environmental conditions.
With an image circle of 9.65mm, it supports most 1/1.7" and 1/1.8" sensors, while the low F-number of F2.0 ensures optimal light transmission for high-quality imaging. Experience precision and reliability with our 3.05mm M12 Mount Lens, perfect for a range of applications requiring superior optical performance.
| Sensor | 1/1.8" sensor |
Focal Length | 3.05mm |
| Aperture | F2.0 |
Viewing Angle | DFOV=119 HFOV=110 VFOV=78 |
| TTL | 29.5mm |
| Diameter | 20mm |
| Distortion | -5% |
| Mount | M12*0.5P |

Focal Length 3.05mm M12 Lens for IMX334 Sensor
.HFOV up to 110 degree
.Low Distortion -5%
.Metal exterior
. Good thermal stability
.Image circle 9.65mm
. Support up for most of 1/1.7" and 1/1.8" sensor
Application:
.Surveillance camera
.Video conferencing camera
.Action camera
. Industrial camera
.High resolution consumer camera
