650nm IR Cut Filter 8MP Lens HFOV 110 Degree Low Distortion Wide Angle Lens M12

No votes have been submitted yet.

$10.00
Availability:
In stock
Out of stock
SKU
215606
Category
Variations

Product Description

Product Description

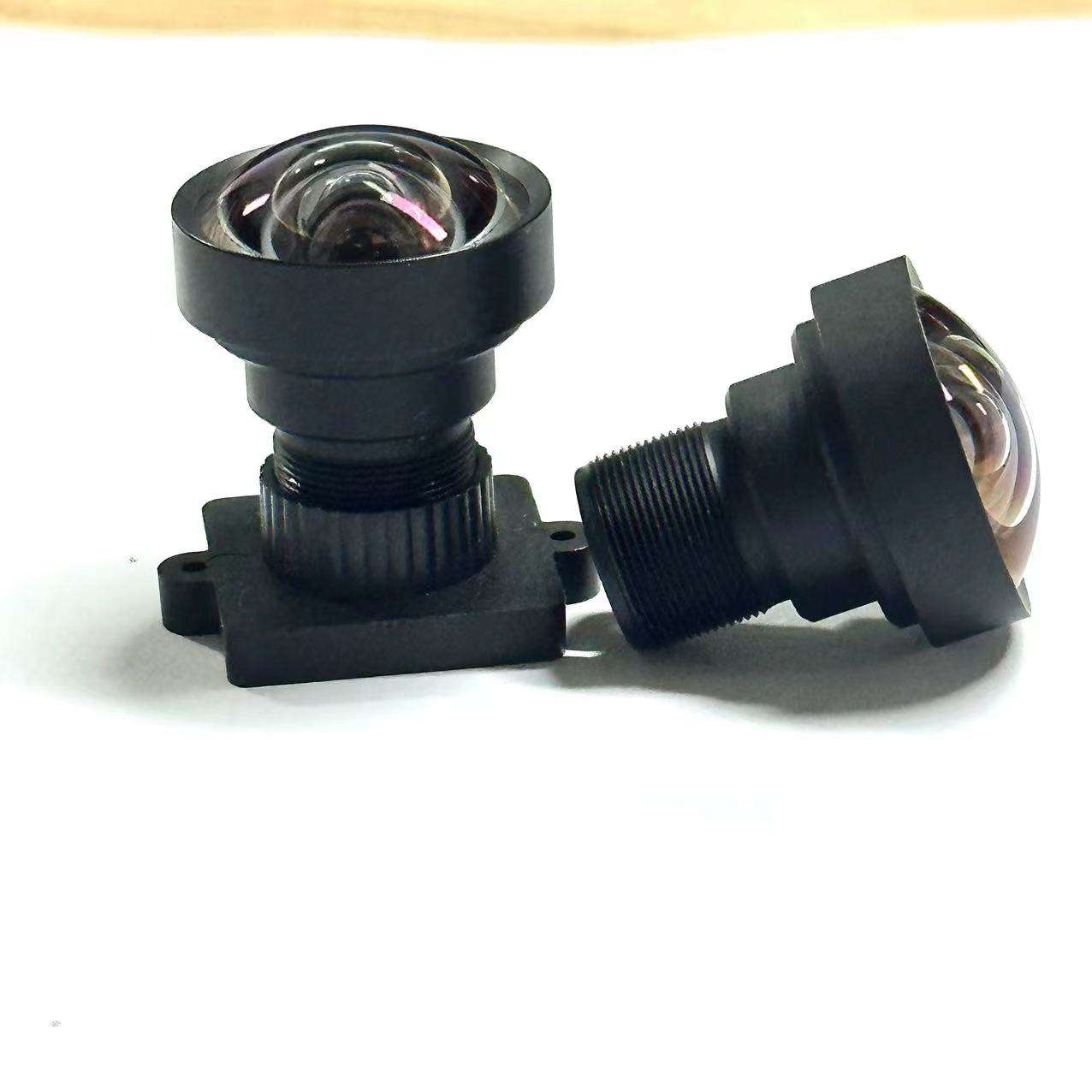

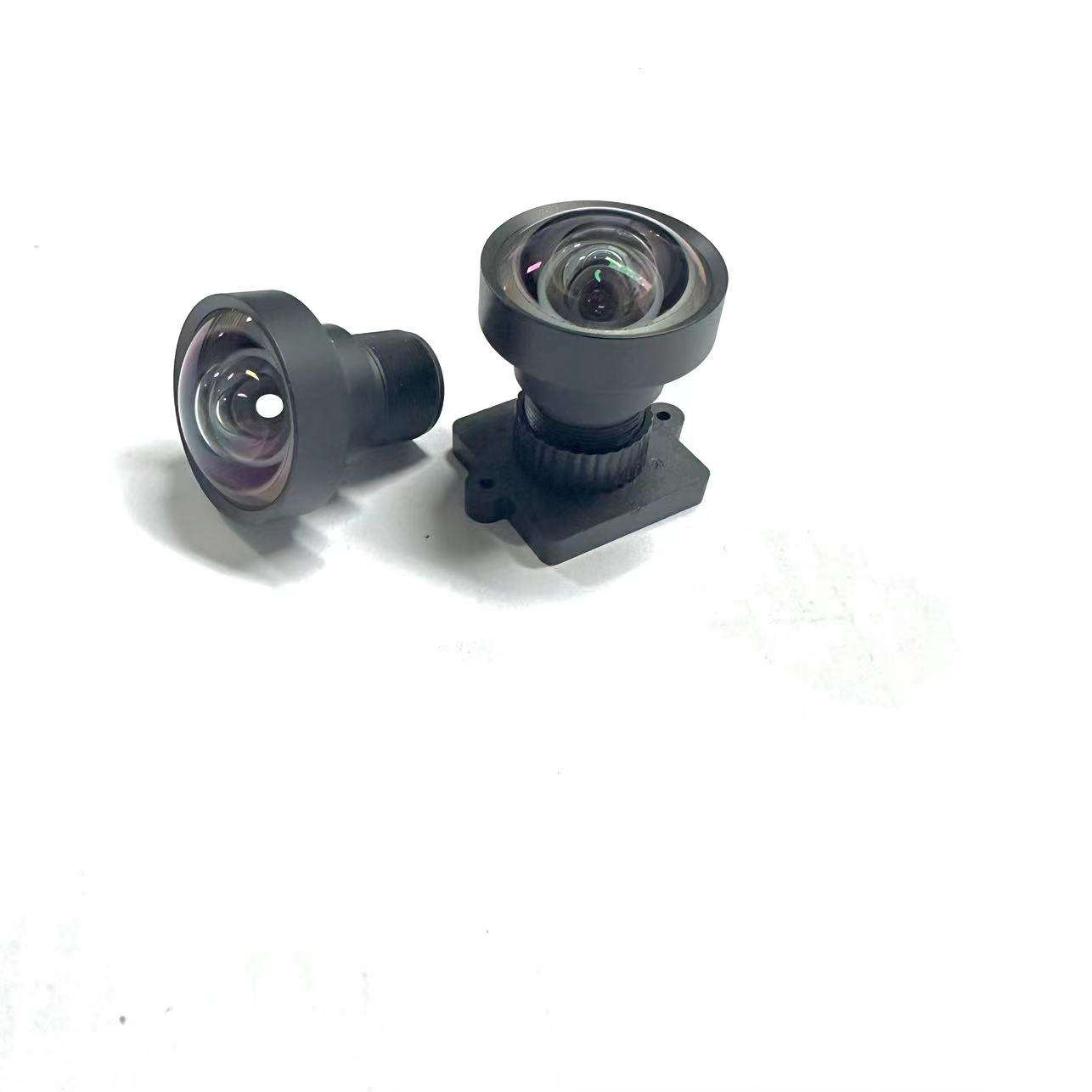

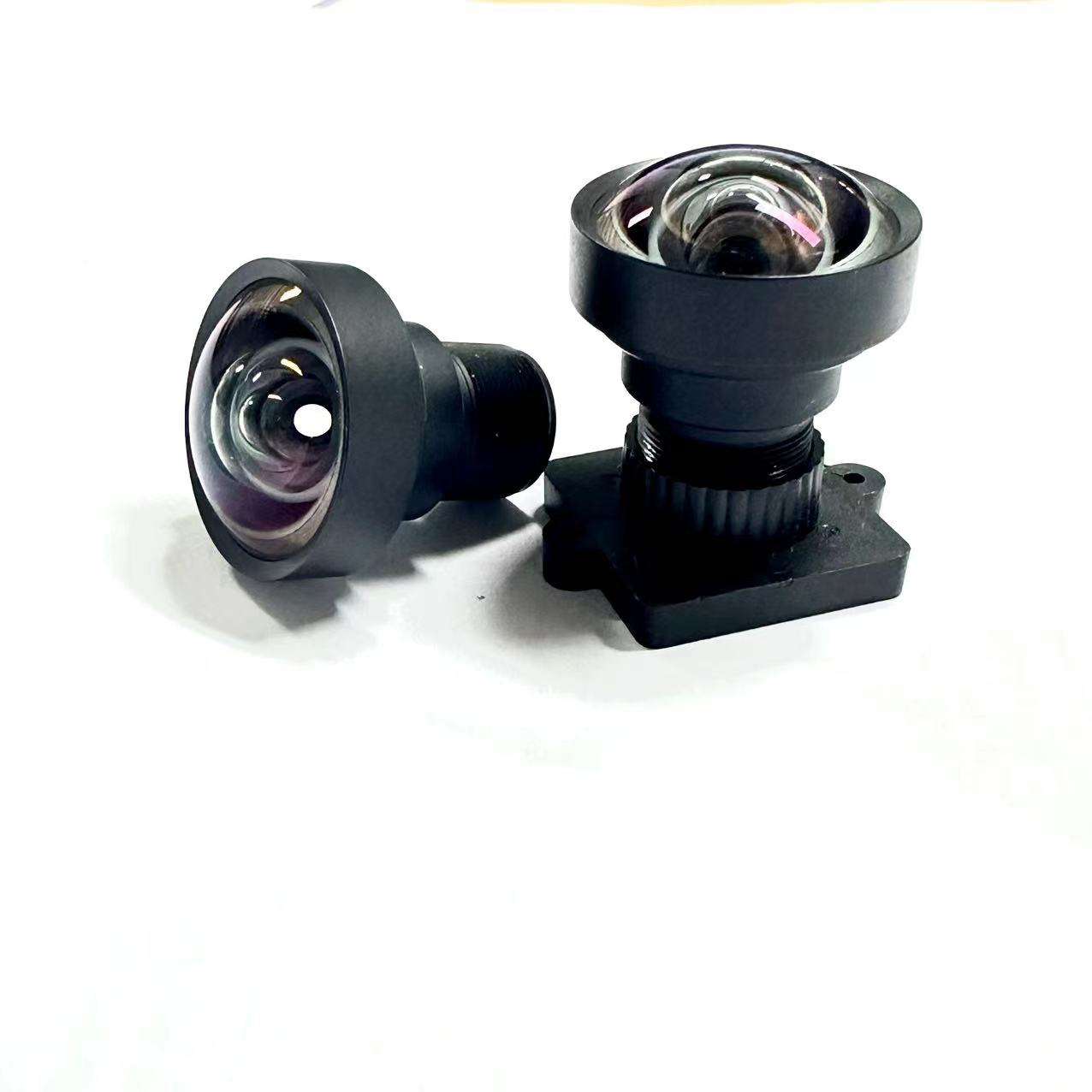

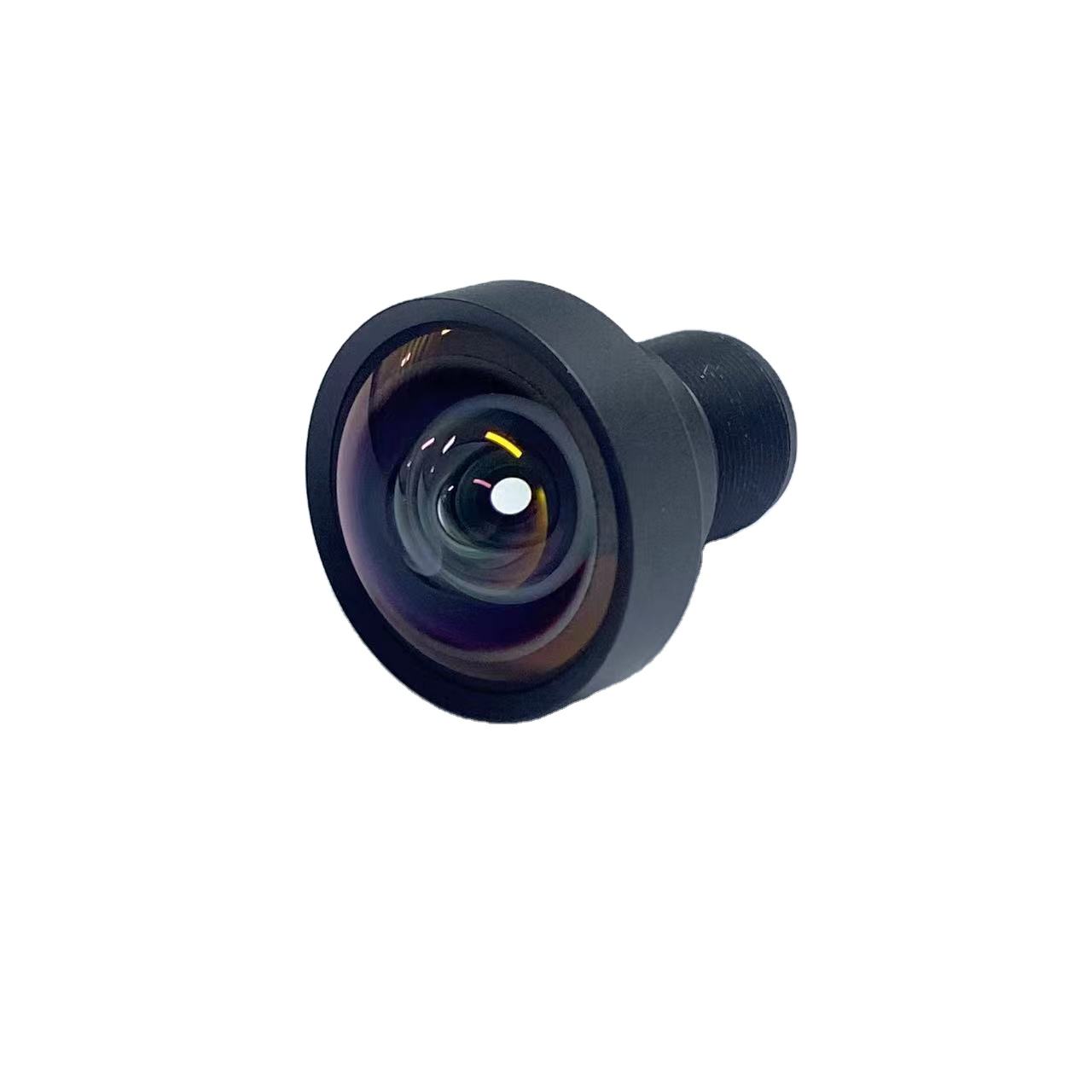

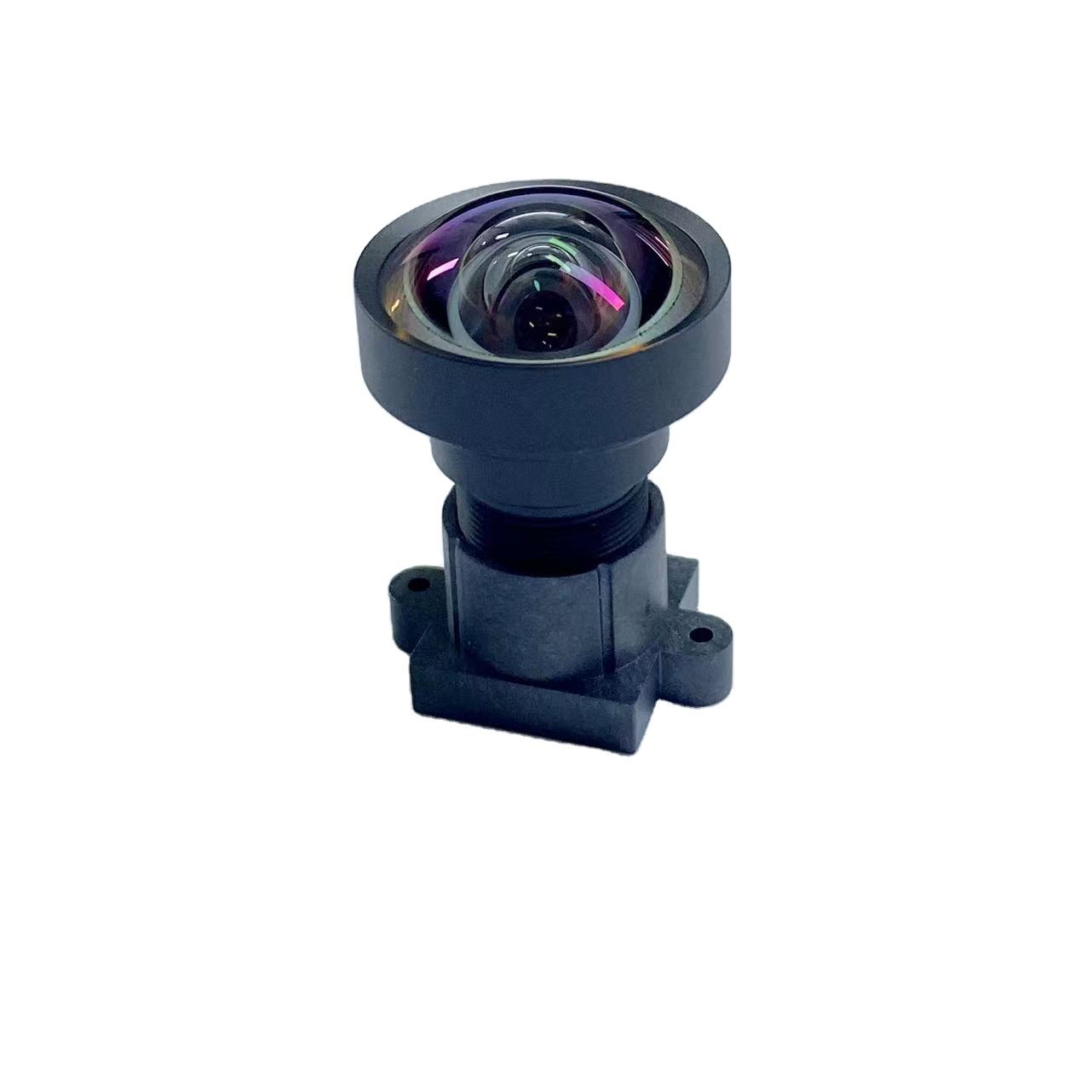

our Low Distortion 3.05mm wide angle M12 lens, designed to deliver exceptional performance in a compact form. With a horizontal field of view (HFOV) of up to 110 degrees, this lens provides expansive coverage for capturing wide scenes. The low distortion of just -5% ensures that images remain true to life with minimal aberrations, while the metal exterior offers durability and a sleek aesthetic. Its good thermal stability makes it suitable for a variety of environmental conditions, and with an image circle of 9.65mm, it accommodates sensors up to 1/1.7" and 1/1.8".

Additionally, the low F-number of F2.0 and 8MP resolution make it ideal for high-quality imaging in diverse applications. Whether it's for industrial, automotive, or surveillance use, this lens delivers outstanding optical performance for your imaging needs.

Sensor1/1.8"  sensor
Focal Length
3.05mm
ApertureF2.0
Viewing Angle
DFOV=119 HFOV=110 VFOV=78
TTL29.5mm
Diameter20mm
Distortion-5%
MountM12*0.5P
Focal Length 3.05mm M12 Lens for IMX334 Sensor
.HFOV up to 110 degree
.Low Distortion -5%
.Metal exterior
. Good thermal stability
.Image circle 9.65mm
. Support up for most of 1/1.7" and 1/1.8" sensor
Application:
.Surveillance camera
.Video conferencing camera
.Action camera
.High resolution consumer camera
